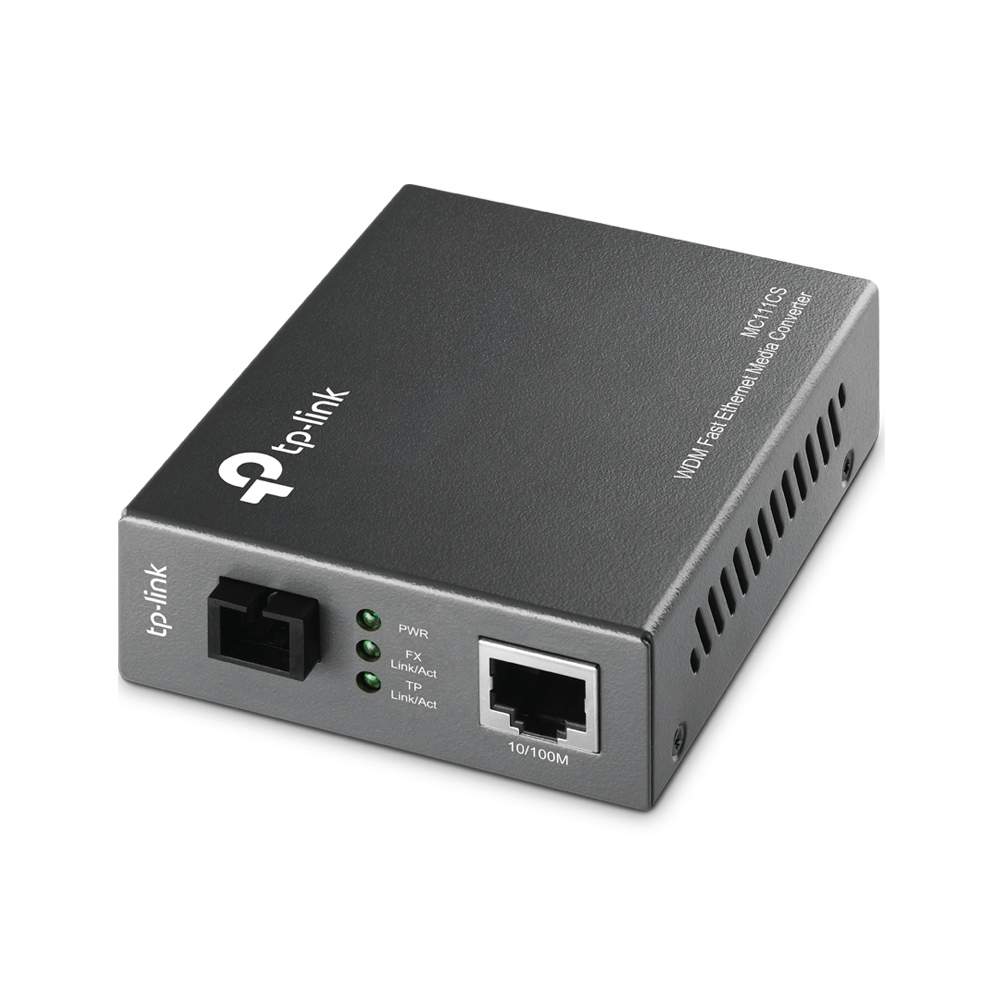

10/100Mbps WDM Media Converter
Model MC111CSEAN 8459730304148
33 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance20000 m
- InternalNo
- Power consumption (max)1.23 W
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 20000 m
- Internal
- No
- Power consumption (max)
- 1.23 W
- Brand
- TP-Link
- Category
- Network Media Converter
- Model
- MC111CS
- Part numbers
- MC111CS, MC111CS V1
- EAN / UPC
- 8459730304148, 6935364030414, 112840380133, 540167885299 +10 more
- Also known as
- TP-Link 10/100Mbps WDM Media Converter
Specifications
33 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Fiber ethernet cabling technology | 100BASE-FX |
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Wavelength | 1550 nm |
| Fiber mode structure | Single-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Activity, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 1.23 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 370 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE |
Other features
| Specification | Value |
|---|---|
| Full duplex | Yes |
| I/O ports | 1x 100M SC 1x 100M RJ45 |
