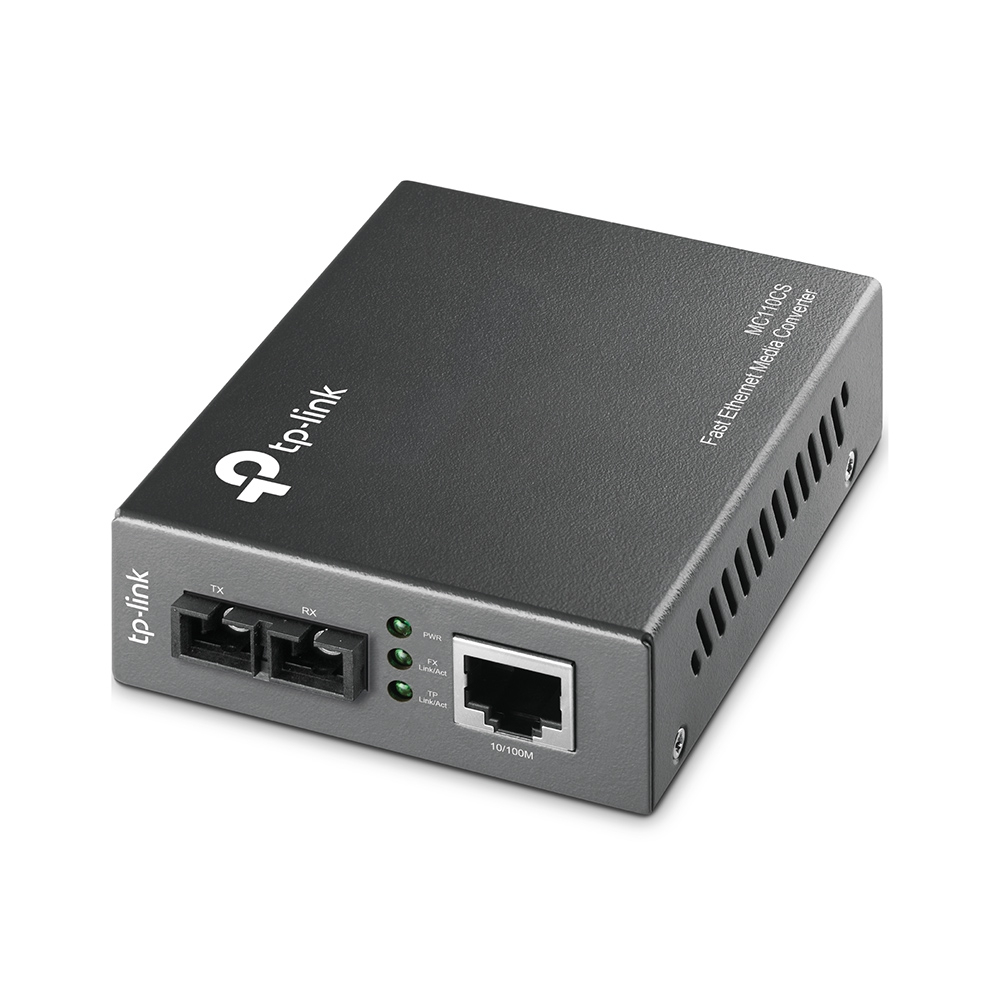

10/100Mbps Single-Mode Media Converter
Model MC110CSEAN 1210002619325
34 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance20000 m
- InternalNo
- Power consumption (max)1.52 W
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 20000 m
- Internal
- No
- Power consumption (max)
- 1.52 W
- Brand
- TP-Link
- Category
- Network Media Converter
- Model
- MC110CS
- Part numbers
- MC110CS, MC110CS V1
- EAN / UPC
- 1210002619325, 791445498292, 809385660010, 845973030407 +16 more
- Also known as
- TP-Link 10/100Mbps Single-Mode Media Converter
Specifications
34 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Fiber ethernet cabling technology | 100BASE-FX |
| Auto MDI/MDI-X | Yes |
| Cabling technology | UTP 3, 4, 5e, 5 |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Power, Speed |
| Product colour | Black |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 1.52 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 380 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 94.5 x 73 x 27 mm |
| Full duplex | Yes |
| I/O ports | 1x 100M SC 1x 100M RJ45 |
