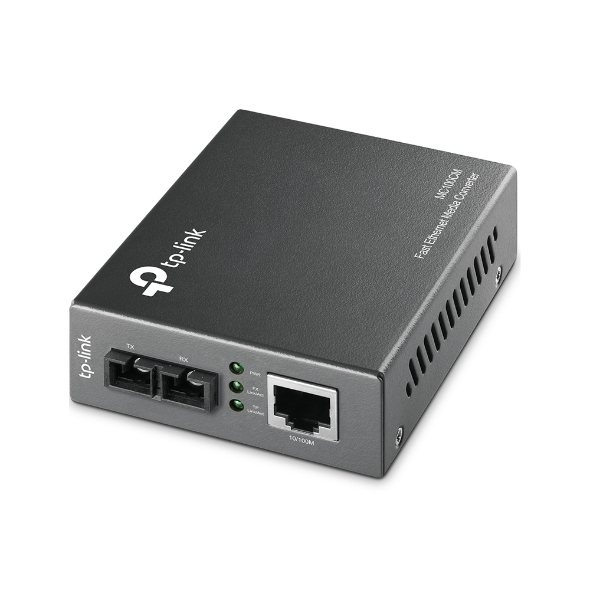

MC100CM(UN) network media converter 100 Mbit/s 1310 nm Multi-mode Black
Model MC100CM(UN)
27 specifications
- Speed100 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance2000 m
- InternalNo
- Power consumption (max)2.4 W
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 2000 m
- Internal
- No
- Power consumption (max)
- 2.4 W
- Brand
- TP-Link
- Category
- Network Media Converter
- Model
- MC100CM(UN)
- Part number
- MC100CM(UN)
- Also known as
- TP-Link MC100CM(UN) network media converter 100 Mbit/s 1310 nm Multi-mode Black
Specifications
27 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 2.4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 73 mm |
| Height | 27 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
