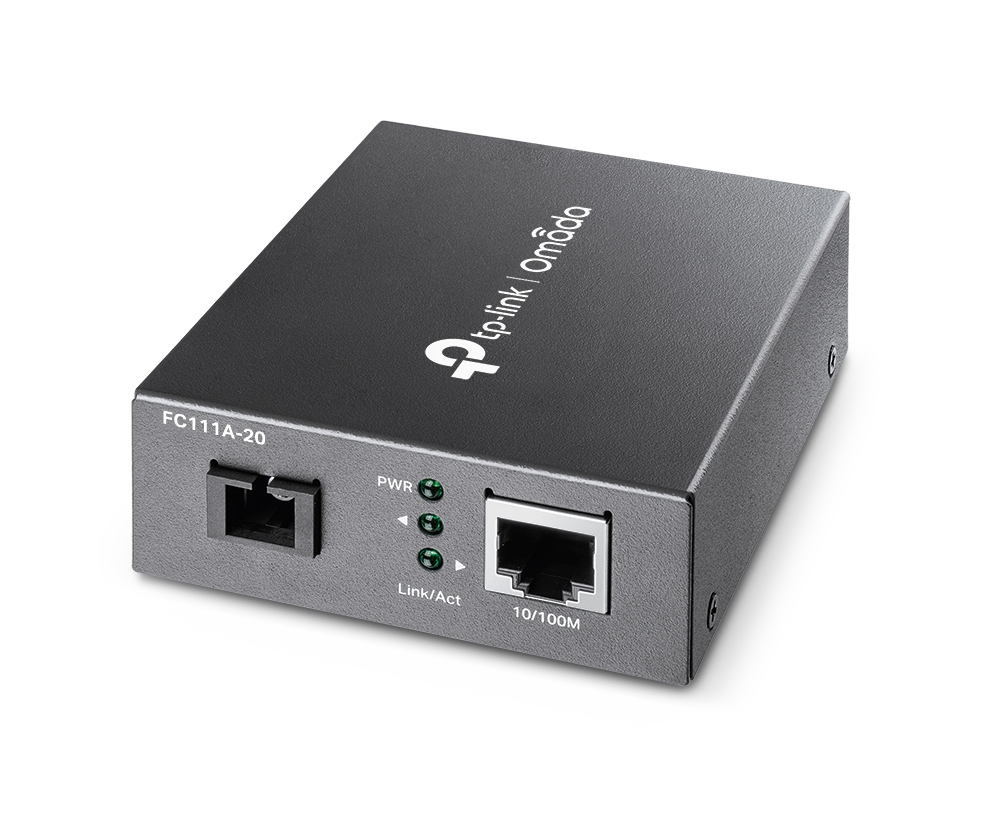

Omada 10/100 Mbps WDM Media Converter
Model FC111A-20
31 specifications
- Speed100 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance20000 m
- InternalNo
- Output voltage5 V
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 20000 m
- Internal
- No
- Output voltage
- 5 V
- Brand
- TP-Link
- Category
- Network Media Converter
- Model
- FC111A-20
- Part number
- FC111A-20
- Also known as
- TP-Link Omada 10/100 Mbps WDM Media Converter
Specifications
31 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Fiber ethernet cabling technology | 100BASE-FX |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Output current | 0.6 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE |
