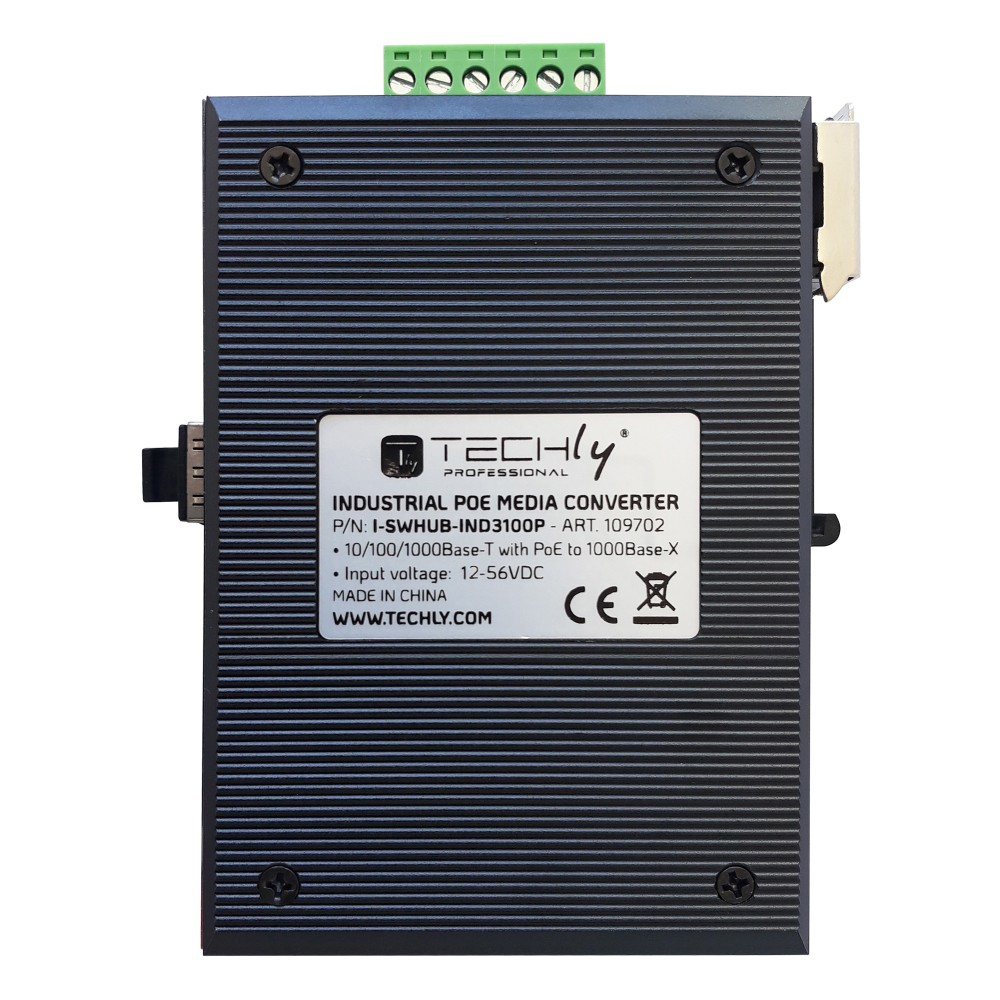

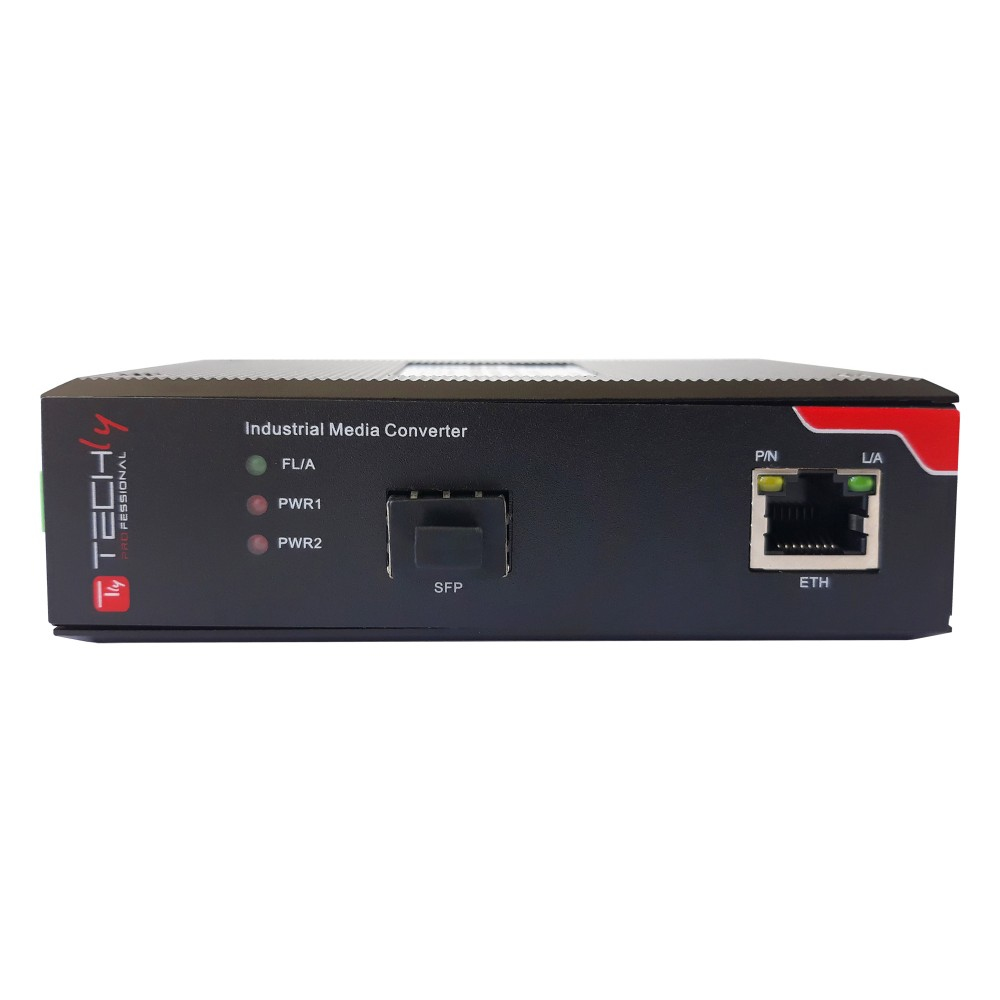

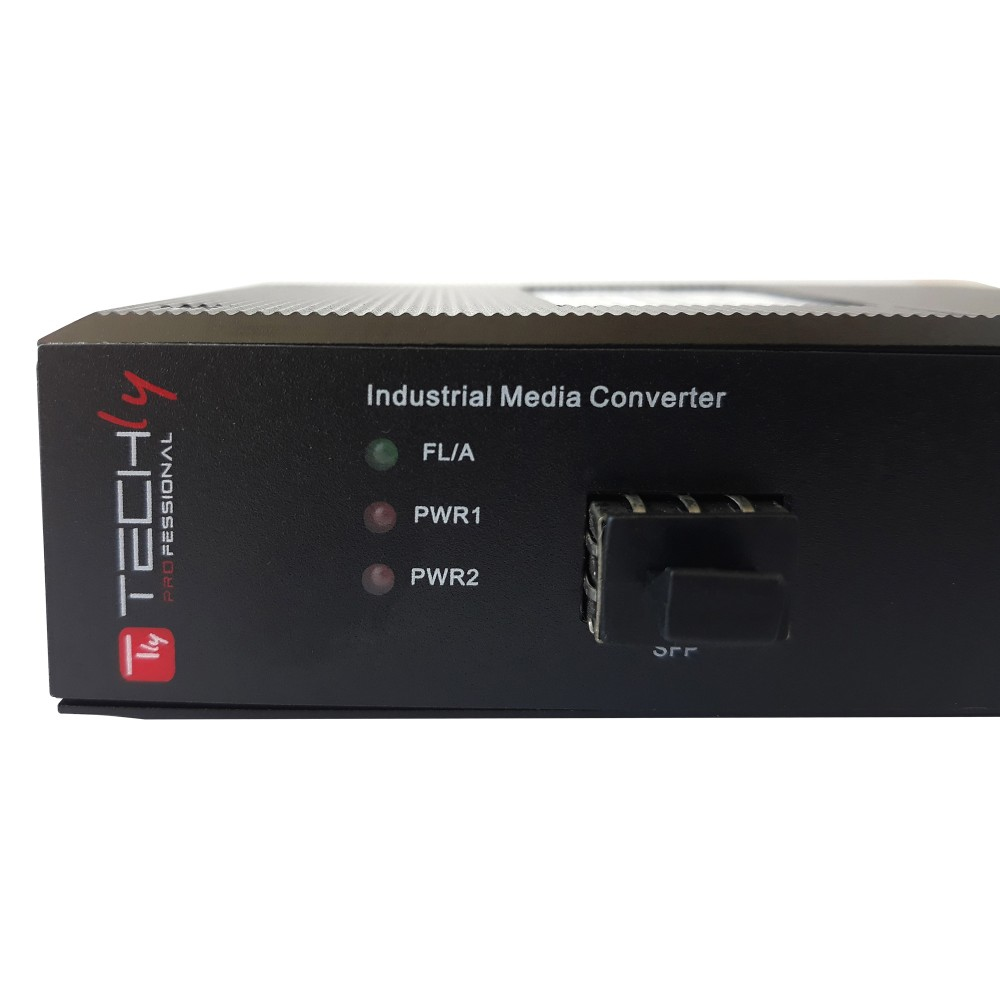

I-SWHUB-IND3100P network media converter 1000 Mbit/s Multi-mode, Single-mode Black
Model I-SWHUB-IND3100PEAN 8051128109702
37 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight486 g
- ColourBlack
- Fiber mode structureMulti-mode, Single-mode
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 486 g
- Colour
- Black
- Fiber mode structure
- Multi-mode, Single-mode
- Internal
- No
- Brand
- Techly
- Category
- Network Media Converter
- Model
- I-SWHUB-IND3100P
- Part number
- I-SWHUB-IND3100P
- EAN / UPC
- 8051128109702
- Also known as
- Techly I-SWHUB-IND3100P network media converter 1000 Mbit/s Multi-mode, Single-mode Black
Specifications
37 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 1000Base-T, 100Base-T |
| Converter output interface | 1000Base-X |
| Networking standards | IEEE 802.3af |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Fiber ethernet cabling technology | 1000Base-X |
| VLAN support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
| Link Fault Pass-through (LFP) | Yes |
| Quality of Service (QoS) support | No |
Performance
| Specification | Value |
|---|---|
| Fiber mode structure | Multi-mode, Single-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |

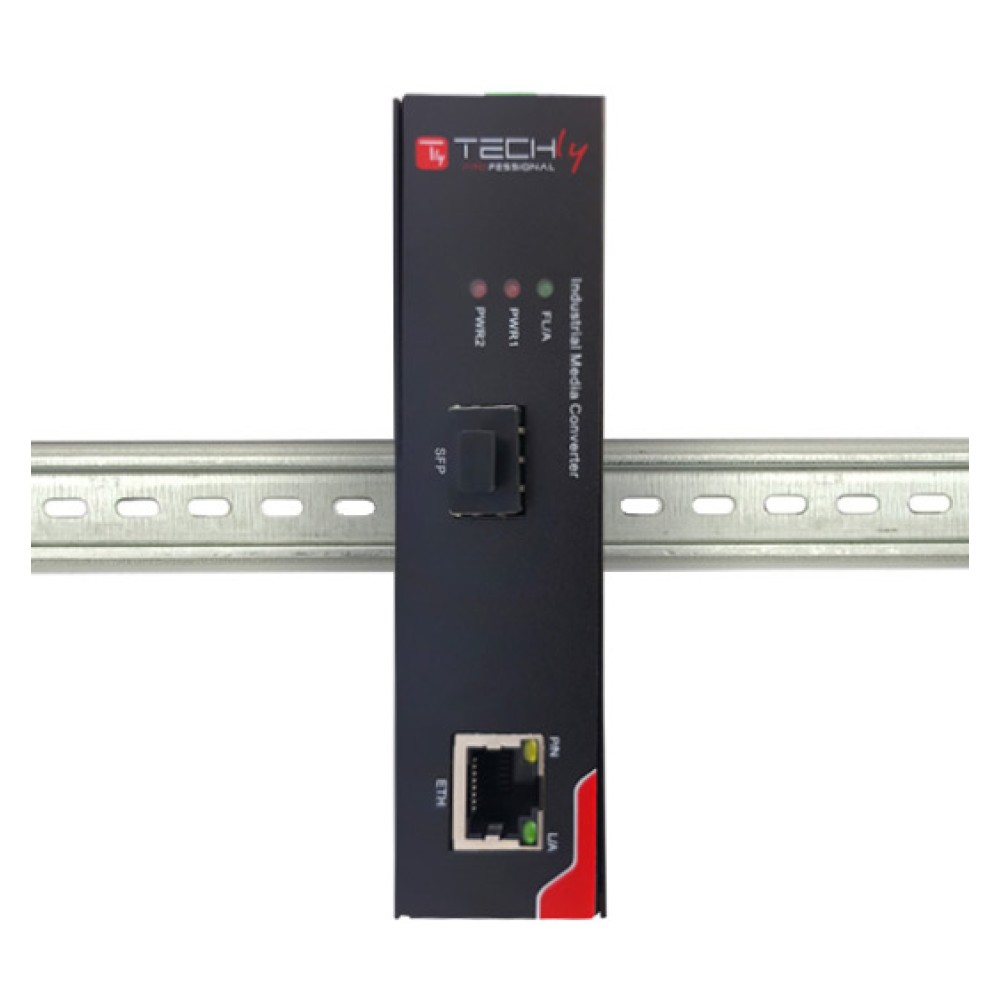

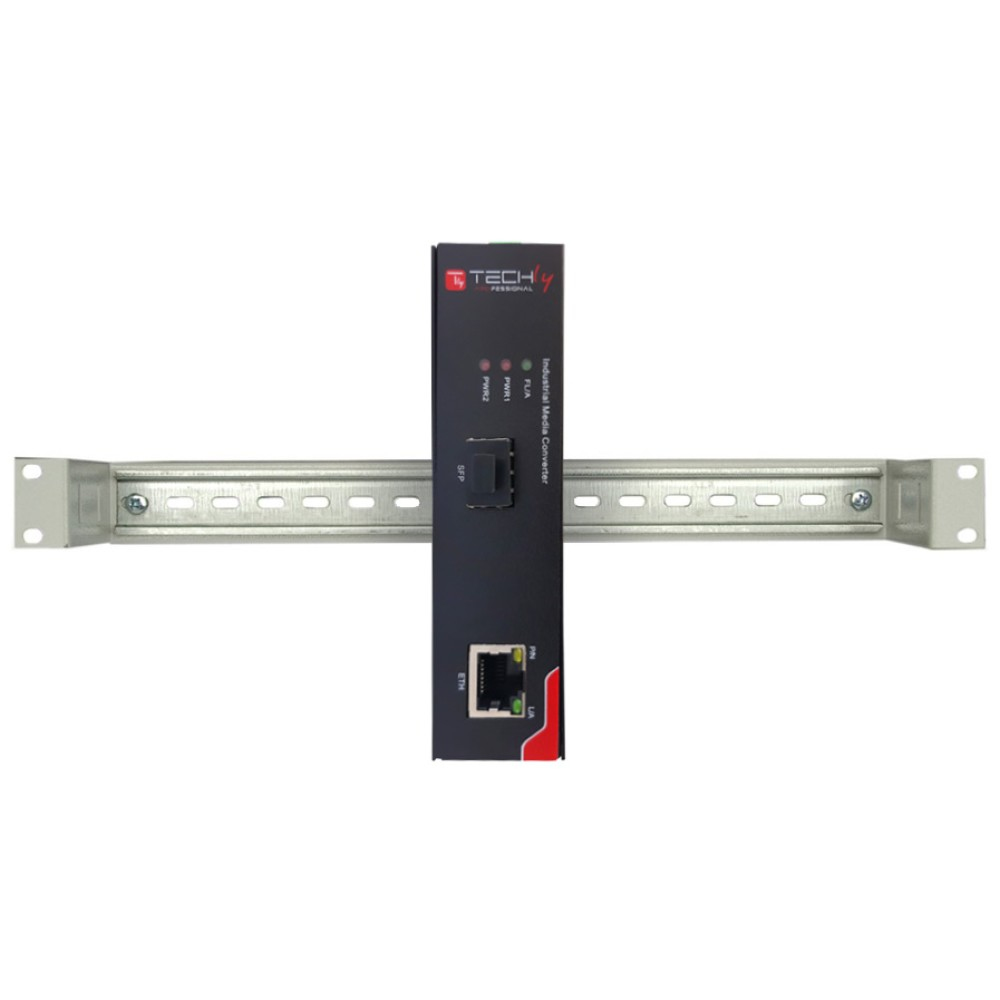

| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SFP |
| Power over Ethernet (PoE) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 - 56 V |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 35 mm |
| Depth | 81 mm |
| Height | 115 mm |
| Weight | 486 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -45 - 95 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
