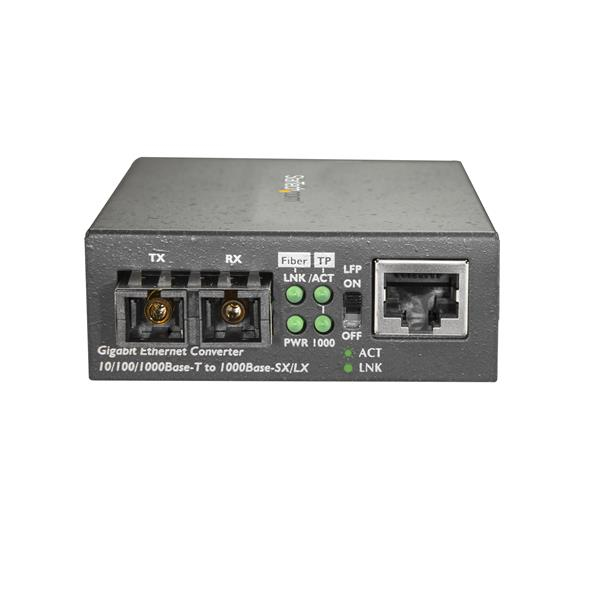

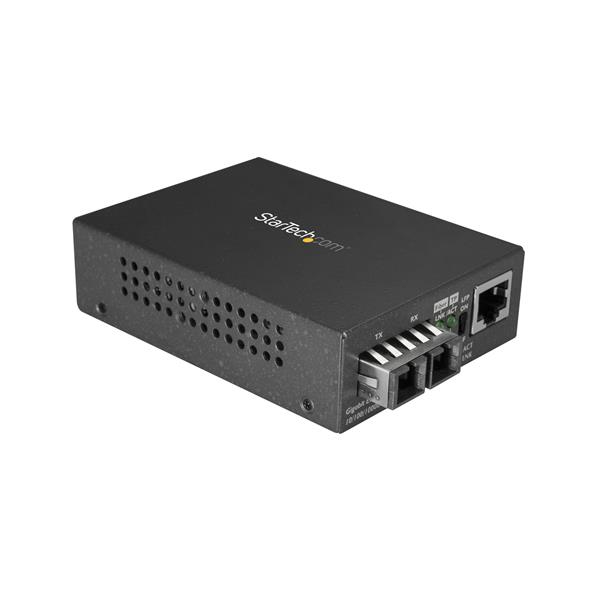

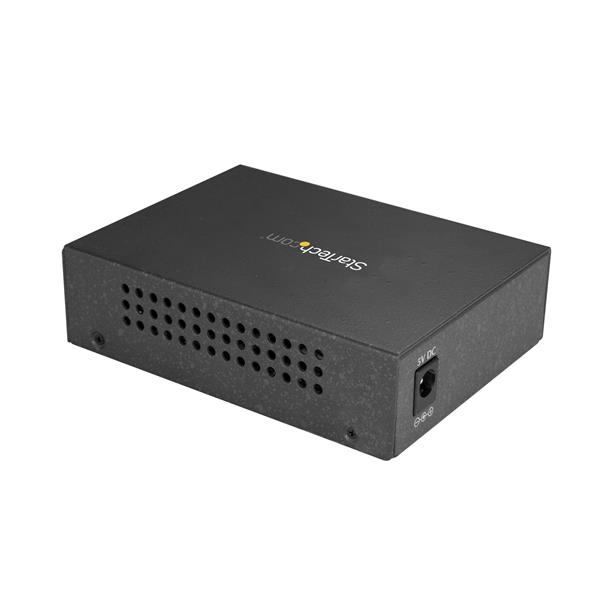

Multi-Mode (MM) SC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to SC Fiber Converter, 850nm, 550m - TAA
Model MCMGBSCMM055EAN 065030878227
53 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight200 g
- ColourBlack
- Maximum transfer distance550 m
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 200 g
- Colour
- Black
- Maximum transfer distance
- 550 m
- Internal
- No
- Brand
- StarTech.com
- Category
- Network Media Converter
- Model
- MCMGBSCMM055
- Part number
- MCMGBSCMM055
- EAN / UPC
- 065030878227
- Also known as
- StarTech.com Multi-Mode (MM) SC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to SC Fiber Converter, 850nm, 550m - TAA
Specifications
53 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 100Base-TX, 1000Base-T |
| Converter output interface | 1000Base-SX |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Store-and-forward | Yes |
| Duplex system | Full |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Wavelength-division multiplexing (WDM) | No |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 50000 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Steel |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power over Ethernet (PoE) ports quantity | 0 |

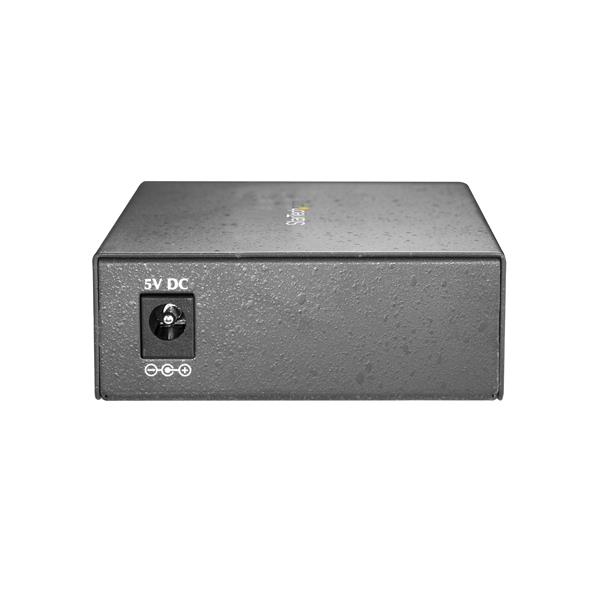

Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Output voltage | 5 V |
| Output current | 2.6 A |
| Power consumption (typical) | 5 W |
| External power adapter | Yes |
| Power plug type | Type N |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 97 mm |
| Depth | 70 mm |
| Height | 26 mm |
| Weight | 200 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|

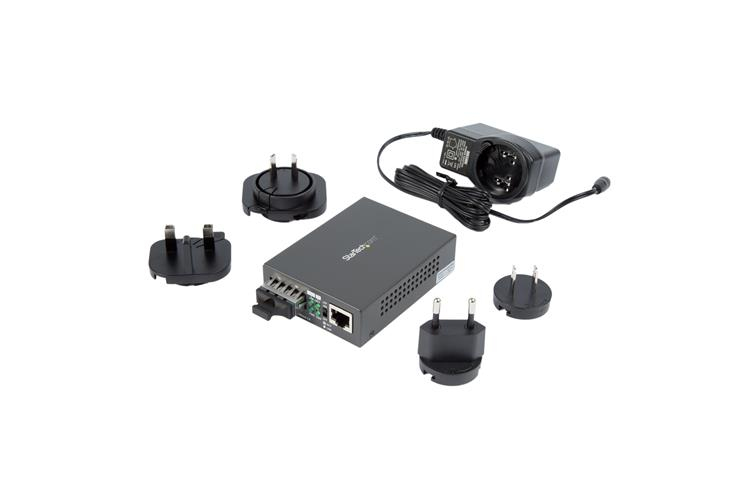

| AC adapter included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 138 mm |
| Package depth | 284 mm |
| Package height | 66 mm |
| Package weight | 564 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC, REACH |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 595 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 20 pc(s) |
