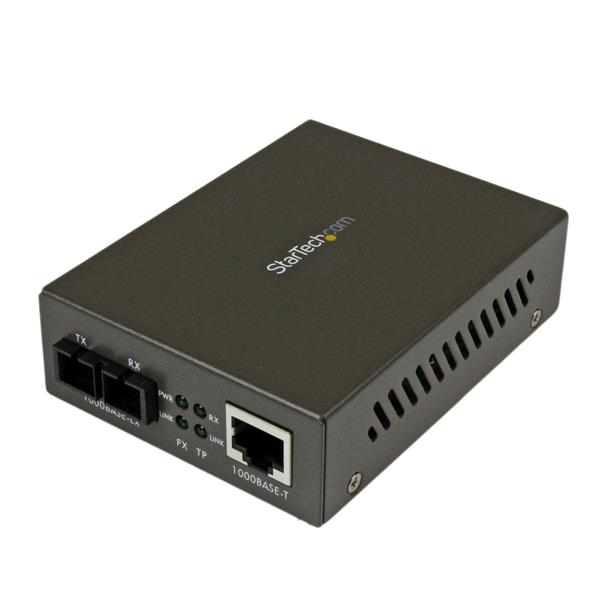

StarTech.com 1000 Mbps Gigabit Single-Mode Fiber Ethernet Media Converter SC 15km
Model MCMGBSC15EAN 912406383420
44 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight450 g
- ColourBlack
- Maximum transfer distance15000 m
- LED indicatorsLink, Power
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 450 g
- Colour
- Black
- Maximum transfer distance
- 15000 m
- LED indicators
- Link, Power
- Brand
- StarTech.com
- Category
- Network Media Converter
- Model
- MCMGBSC15
- Part number
- MCMGBSC15
- EAN / UPC
- 912406383420, 065030836296, 151903589595, 151903668009 +11 more
- Also known as
- StarTech.com 1000 Mbps Gigabit Single-Mode Fiber Ethernet Media Converter SC 15km
Specifications
44 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3z |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Cabling technology | 1000BASE-LX/LH |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 15000 m |
| Wavelength | 1310 nm |
| Wavelength-division multiplexing (WDM) | No |
| Fiber mode structure | Single-mode |
Features
| Specification | Value |
|---|---|
| LED indicators | Link, Power |
| Product colour | Black |
| Compliance industry standards | IEEE 802.3z |

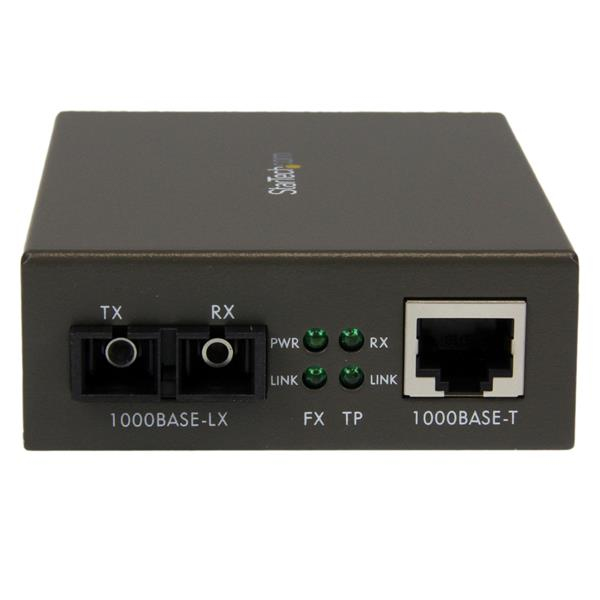

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |

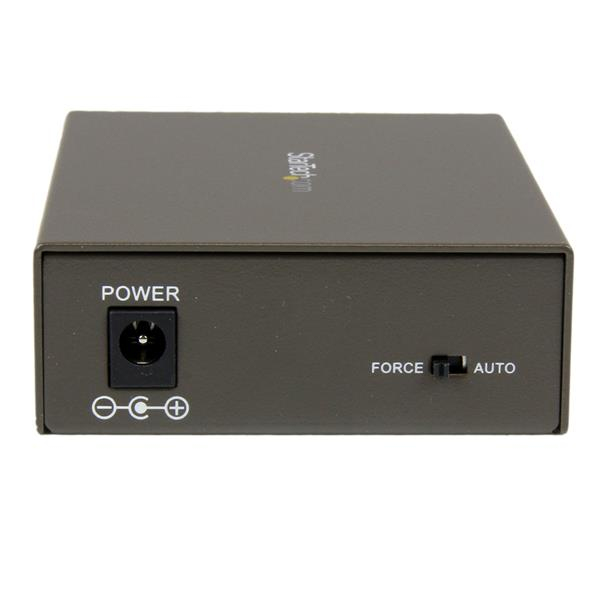

| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 0.3 A |
| Output voltage | 9 V |
| Output current | 0.6 A |
| Power over Ethernet (PoE) | No |
| External power adapter | Yes |
| Power plug type | Type M |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 73 mm |
| Depth | 99 mm |
| Height | 27 mm |
| Weight | 450 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |

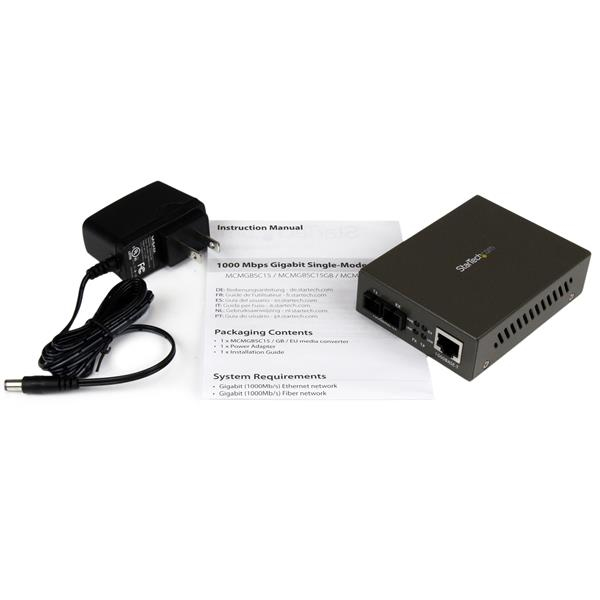

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 206 mm |
| Package height | 65 mm |
| Package weight | 500 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC |
Other features
| Specification | Value |
|---|---|
| Connector(s) | SC |
| Dimensions (WxDxH) | 73 x 99 x 27 mm |
| Full duplex | Yes |
| Power requirements | 9 VDC |
