Single-Mode (SM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, 20km - TAA
Model MCM1110SMLC20EAN 065030917087
51 specifications
- Speed2000 Mbit/s
- ConnectivityWired
- ColourBlack

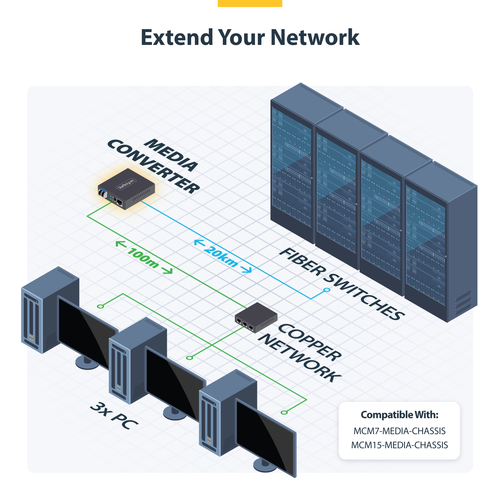

- Maximum transfer distance20000 m
- InternalNo
- Input voltage100 - 240 V
Overview
- Speed
- 2000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 20000 m
- Internal
- No
- Input voltage
- 100 - 240 V
- Brand
- StarTech.com
- Category
- Network Media Converter
- Model
- MCM1110SMLC20
- Part number
- MCM1110SMLC20
- EAN / UPC
- 065030917087
- Also known as
- StarTech.com Single-Mode (SM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, 20km - TAA
Specifications
51 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Converter output interface | 1000Base-LX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Flow control support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Link Fault Pass-through (LFP) | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Wavelength-division multiplexing (WDM) | No |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 50000 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |

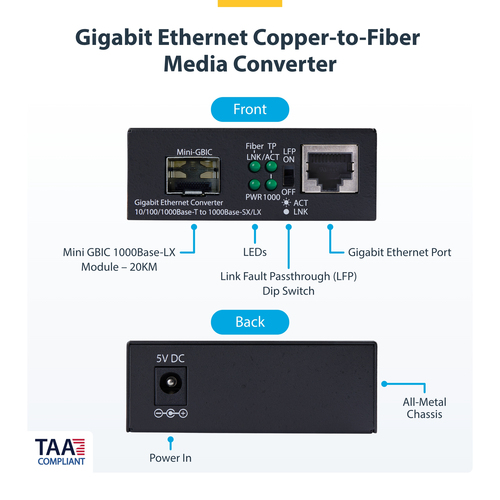

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 0.4 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power consumption (typical) | 4.6 W |
| Power over Ethernet (PoE) | No |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 70 mm |
| Height | 94 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 133 mm |
| Package depth | 280 mm |
| Package height | 66 mm |
| Package weight | 328 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 360 mm |
| Master (outer) case length | 580 mm |
| Master (outer) case height | 305 mm |
| Products per master (outer) case | 20 pc(s) |
