Multi-Mode (MM) / Single Mode (SM) Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, Open SFP Slot -
Model MCM1110SFPEAN 065030861472
48 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight185 g
- ColourBlack
- Wavelength-division multiplexing (WDM)Yes
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 185 g
- Colour
- Black
- Wavelength-division multiplexing (WDM)
- Yes
- Internal
- No
- Brand
- StarTech.com
- Category
- Network Media Converter
- Model
- MCM1110SFP
- Part number
- MCM1110SFP
- EAN / UPC
- 065030861472, 7426801117182
- Also known as
- StarTech.com Multi-Mode (MM) / Single Mode (SM) Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, Open SFP Slot -
Specifications
48 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T, 100Base-TX, 10Base-T |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full |
Performance
| Specification | Value |
|---|---|
| Wavelength-division multiplexing (WDM) | Yes |
| Fiber mode structure | Multi-mode, Single-mode |
| Mean time between failures (MTBF) | 50000 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Steel |

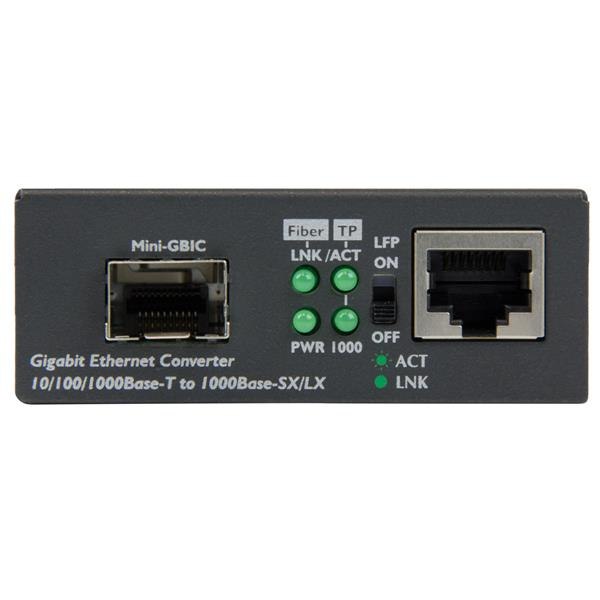

| LED indicators | Activity, Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |

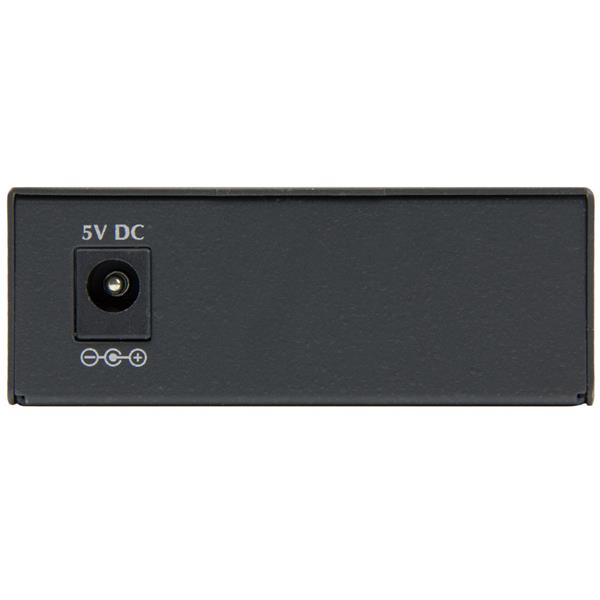

| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power consumption (typical) | 5 W |
| Power over Ethernet (PoE) | No |

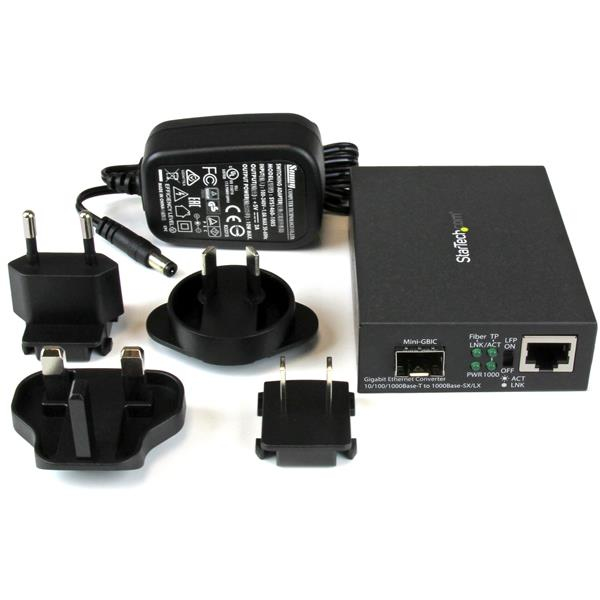

| External power adapter | Yes |
| Power plug type | Type N |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 95 mm |
| Height | 26 mm |
| Weight | 185 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 285 mm |
| Package depth | 139 mm |
| Package height | 69 mm |
| Package weight | 544 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 590 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 311 mm |
| Products per master (outer) case | 20 pc(s) |
