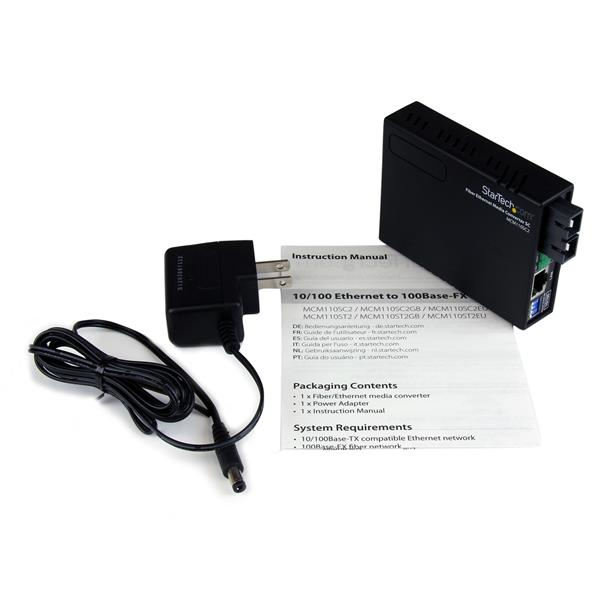

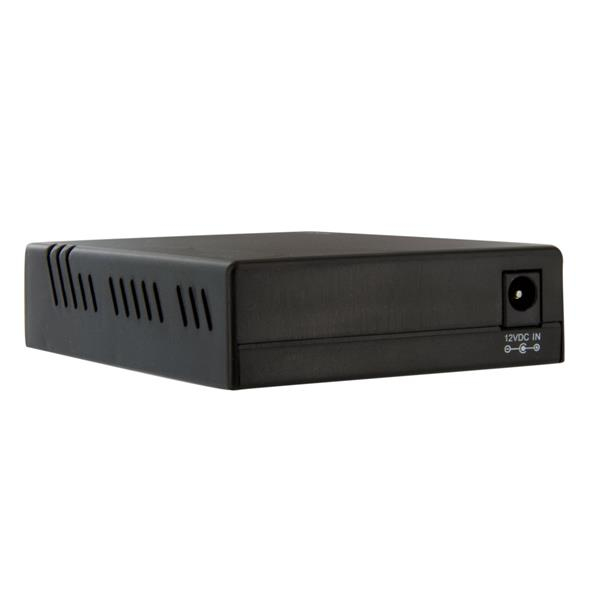

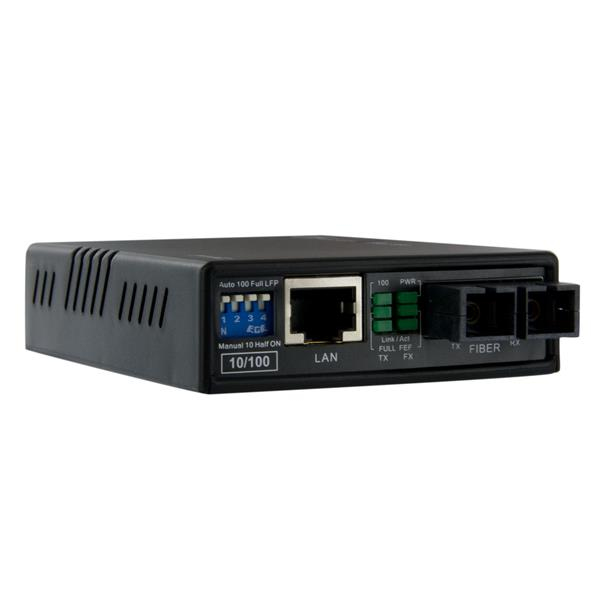

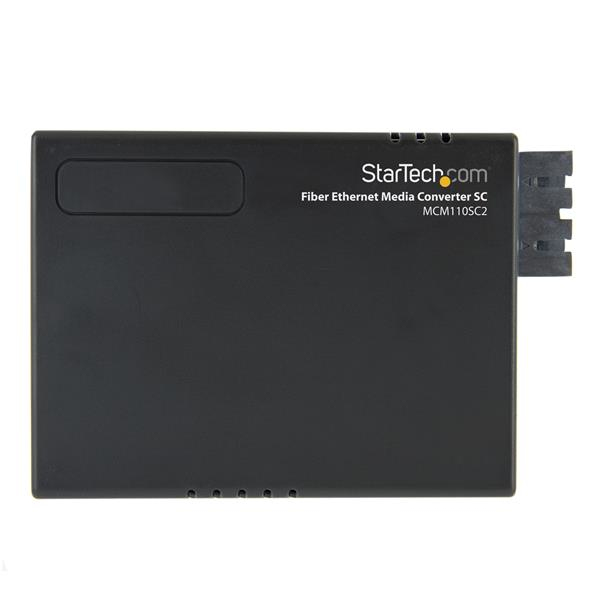

Multi-Mode (MM) SC Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to SC MM Fiber Media Converter, 1310nm, 2km - TAA
Model MCM110SC2Part no. MCM110SC2EUEAN 065030836838
43 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight90.5 g
- ColourBlack
- Maximum transfer distance2000 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 90.5 g
- Colour
- Black
- Maximum transfer distance
- 2000 m
- Internal
- No
- Brand
- StarTech.com
- Category
- Network Media Converter
- Model
- MCM110SC2
- Part numbers
- MCM110SC2EU, MCM110SC2
- EAN / UPC
- 065030836838, 065030835626, 151903589540, 151903667774 +10 more
- Also known as
- StarTech.com Multi-Mode (MM) SC Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to SC MM Fiber Media Converter, 1310nm, 2km - TAA
Specifications
43 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Wavelength-division multiplexing (WDM) | No |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 65000 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Plastic |
| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 115 V |
| Output voltage | 12 V |
| Output current | 0.2 A |
| Power over Ethernet (PoE) | No |
| Power plug type | Type M |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75 mm |
| Depth | 95 mm |
| Height | 20 mm |
| Weight | 90.5 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 63 mm |
| Package depth | 148 mm |
| Package height | 145 mm |
| Package weight | 400 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC |
