10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, Standalone 10 Gigabit Ethernet RJ-45 to 10GBASE-T SFP, Single-Mode / Multi-Mode, 9K Jumbo Fram
Model MCM10GSFPEAN 065030878081
44 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- Weight274 g
- ColourBlack
- Fiber mode structureMulti-mode, Single-mode
- InternalNo
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Weight
- 274 g
- Colour
- Black
- Fiber mode structure
- Multi-mode, Single-mode
- Internal
- No
- Brand
- StarTech.com
- Category
- Network Media Converter
- Model
- MCM10GSFP
- Part number
- MCM10GSFP
- EAN / UPC
- 065030878081
- Also known as
- StarTech.com 10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, Standalone 10 Gigabit Ethernet RJ-45 to 10GBASE-T SFP, Single-Mode / Multi-Mode, 9K Jumbo Fram
Specifications
44 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3ae, IEEE 802.3an |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,1200,2500,5000,10000 Mbit/s |
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Performance
| Specification | Value |
|---|---|
| Fiber mode structure | Multi-mode, Single-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Aluminium |

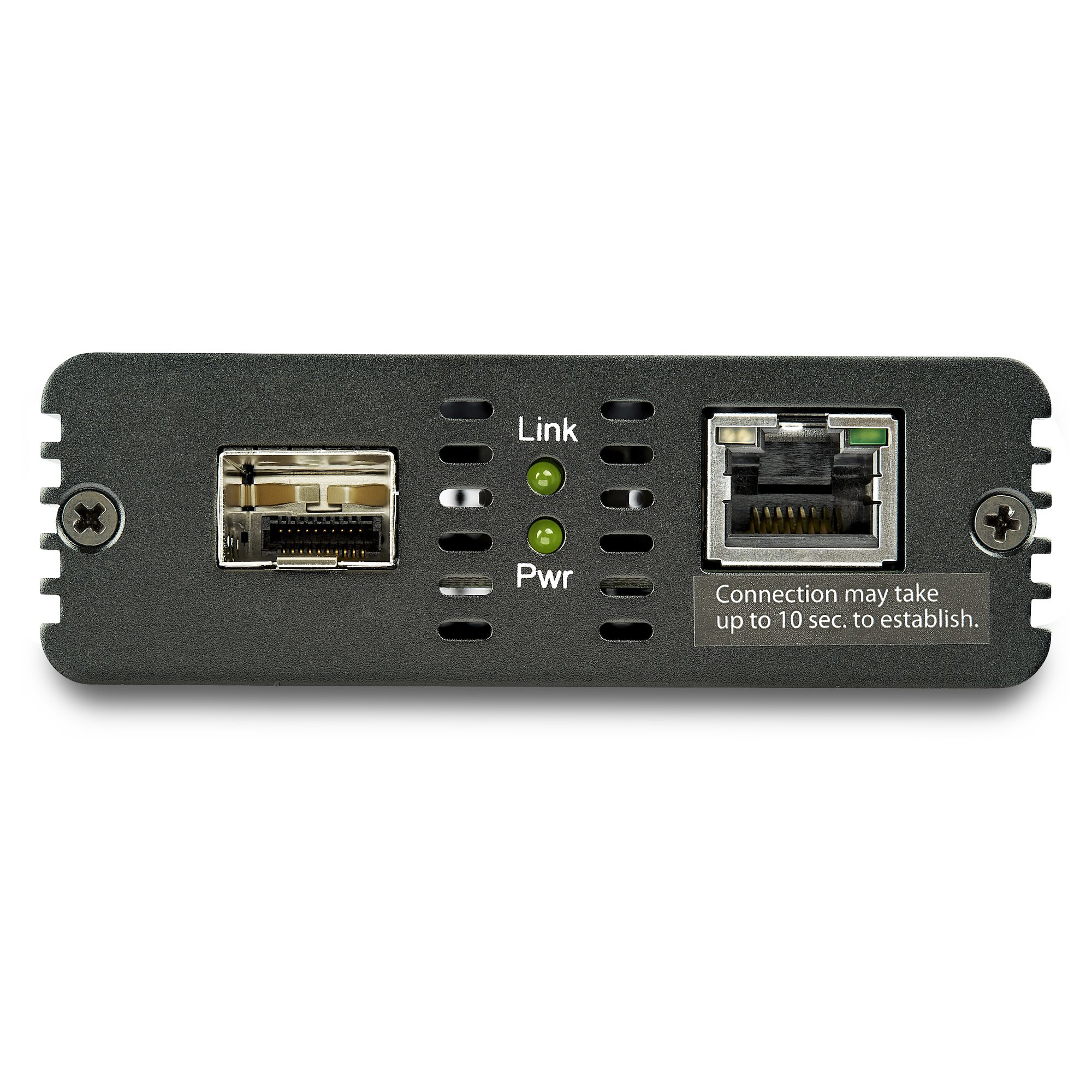

| LED indicators | Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP+ |
Power
| Specification | Value |
|---|---|
| Input current | 250 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power over Ethernet (PoE) | No |

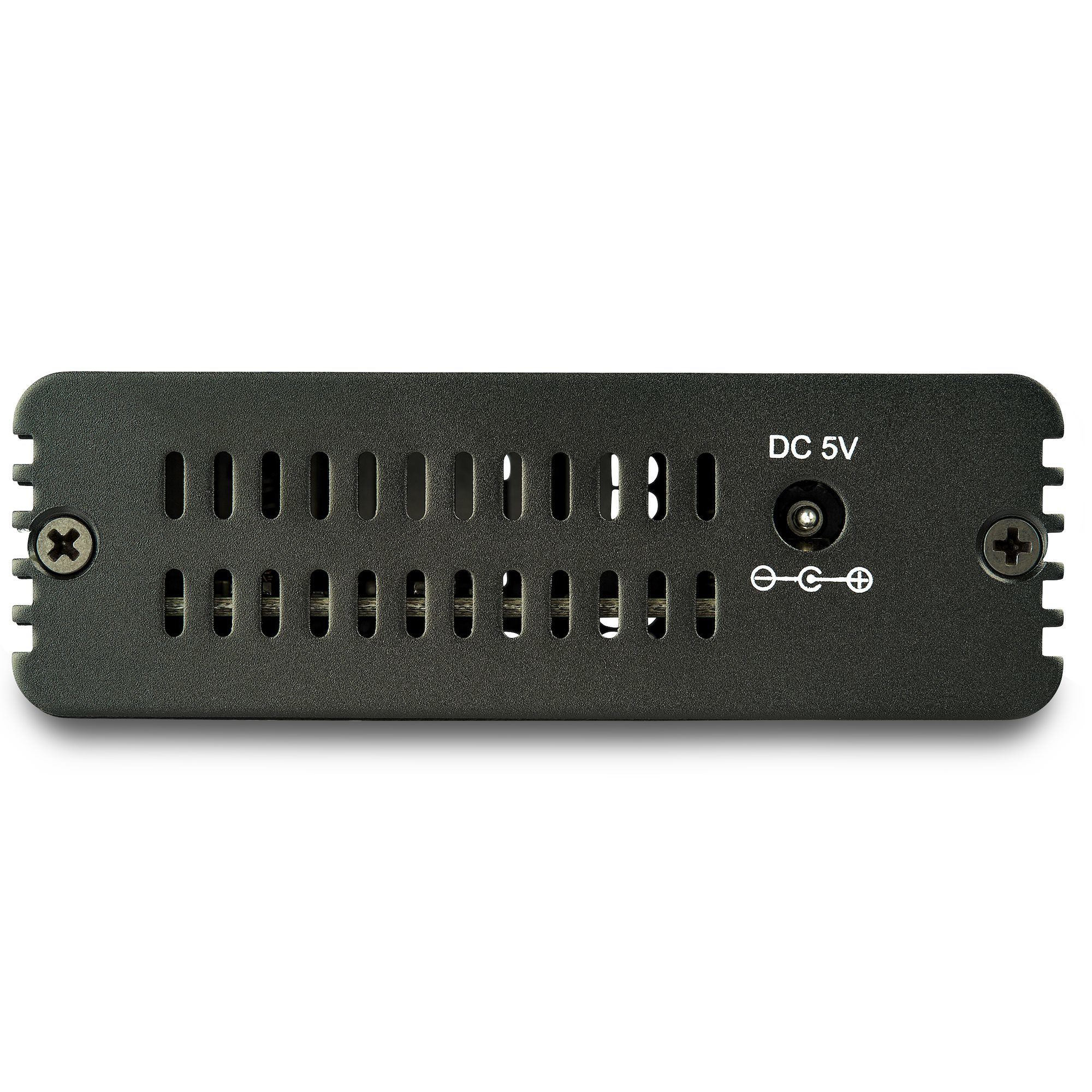

| External power adapter | Yes |
| Power plug type | Type M |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 122 mm |
| Height | 30 mm |
| Weight | 274 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 120 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Packaging content
| Specification | Value |
|---|---|

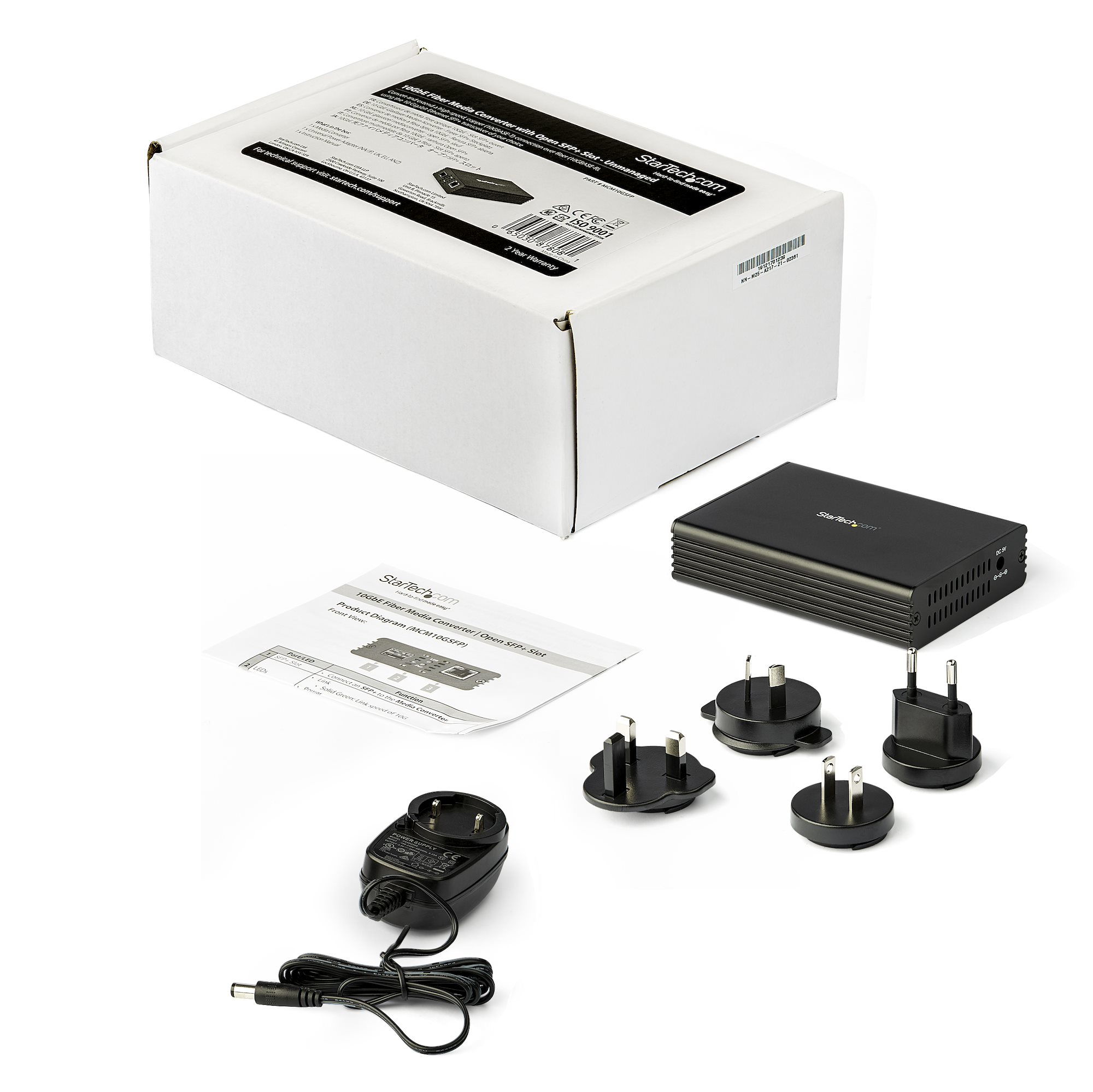

| AC adapter included | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 144 mm |
| Package depth | 207 mm |
| Package height | 38 mm |
| Package weight | 350 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC, UL, PSE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 550 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 20 pc(s) |
