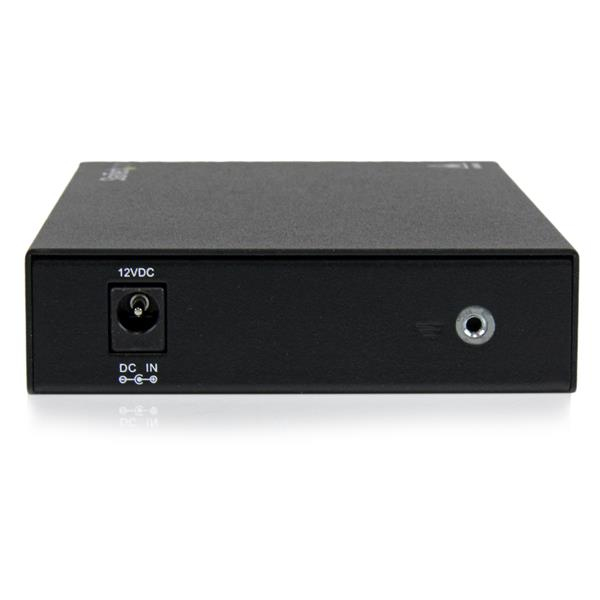

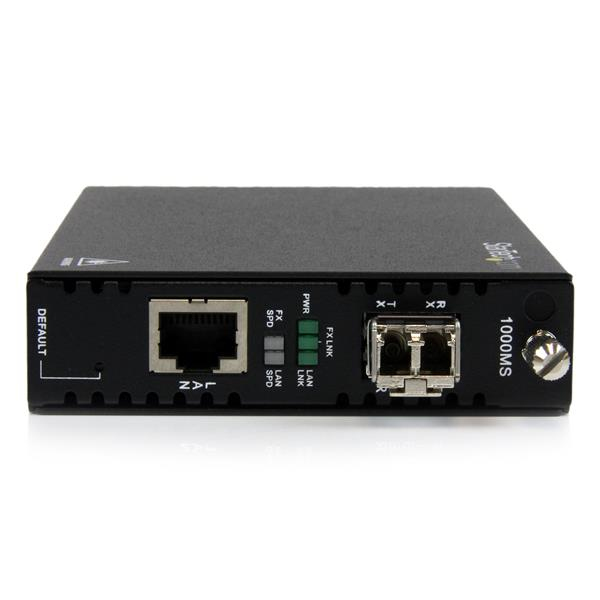

OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant
Model ET91000LCOAMEAN 7427457040015
42 specifications
- Speed1250 Mbit/s
- ConnectivityWired
- Weight411 g
- ColourBlack
- Maximum transfer distance550 m
- InternalNo
Overview
- Speed
- 1250 Mbit/s
- Connectivity
- Wired
- Weight
- 411 g
- Colour
- Black
- Maximum transfer distance
- 550 m
- Internal
- No
- Brand
- StarTech.com
- Category
- Network Media Converter
- Model
- ET91000LCOAM
- Part number
- ET91000LCOAM
- EAN / UPC
- 7427457040015, 065030854566, 114239522810, 363852839533 +4 more
- Also known as
- StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant
Specifications
42 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1250 Mbit/s |
| Converter input interface | 1000Base-LX, 1000Base-SX, 1000Base-T, 100Base-TX, 10Base-T |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 65000 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Steel |
| LED indicators | LAN, Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 0.36 A |
| Output voltage | 12 V |
| Output current | 1 A |
| Power over Ethernet (PoE) | No |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 87 mm |
| Depth | 163 mm |
| Height | 23 mm |
| Weight | 411 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |

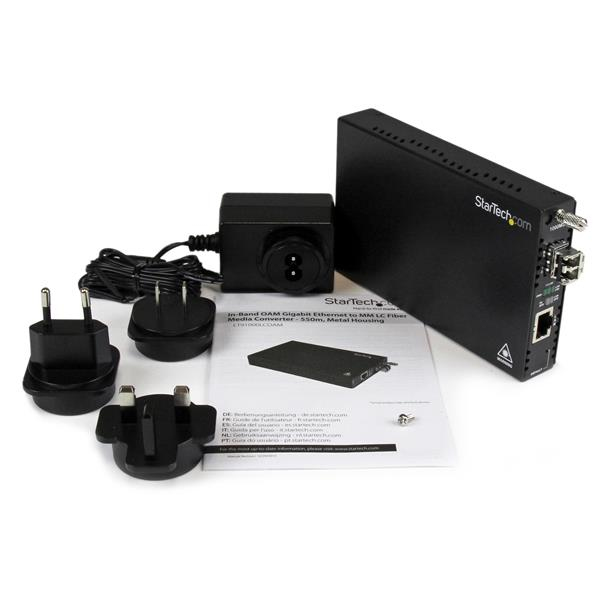

Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 136 mm |
| Package depth | 206 mm |
| Package height | 92 mm |
| Package weight | 789 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
