10/100 Mbps Multi Mode Fiber Media Converter ST 2 km
Model ET90110ST2EAN 898029630403
35 specifications
- Speed200 Mbit/s
- ConnectivityWired
- Weight600 g
- ColourBlack
- Maximum transfer distance2000 m
- InternalNo
Overview
- Speed
- 200 Mbit/s
- Connectivity
- Wired
- Weight
- 600 g
- Colour
- Black
- Maximum transfer distance
- 2000 m
- Internal
- No
- Brand
- StarTech.com
- Category
- Network Media Converter
- Model
- ET90110ST2
- Part number
- ET90110ST2
- EAN / UPC
- 898029630403, 014445036371, 065030846257, 100177437040 +12 more
- Also known as
- StarTech.com 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km
Specifications
35 specifications in 12 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 200 Mbit/s |
| Converter input interface | 10Base-T |
| Converter output interface | 100Base-FX |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Plug and Play | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |

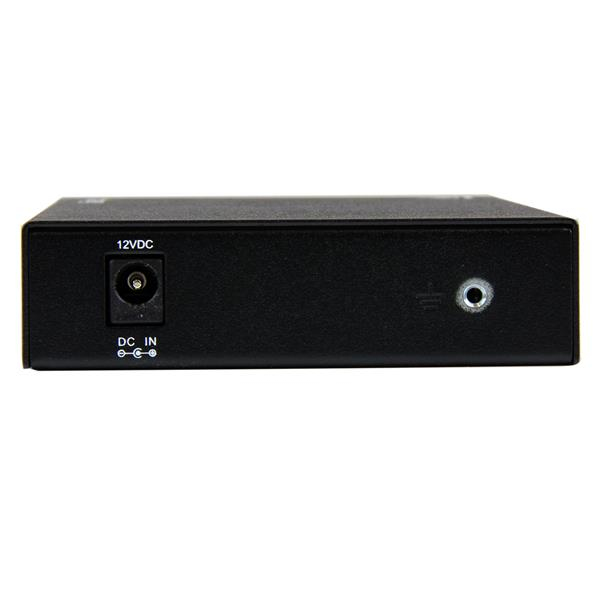

| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 12 V |
| Output current | 1 A |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 600 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 207 mm |
| Package depth | 137 mm |
| Package height | 90 mm |
| Package weight | 757 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
| Full duplex | Yes |
