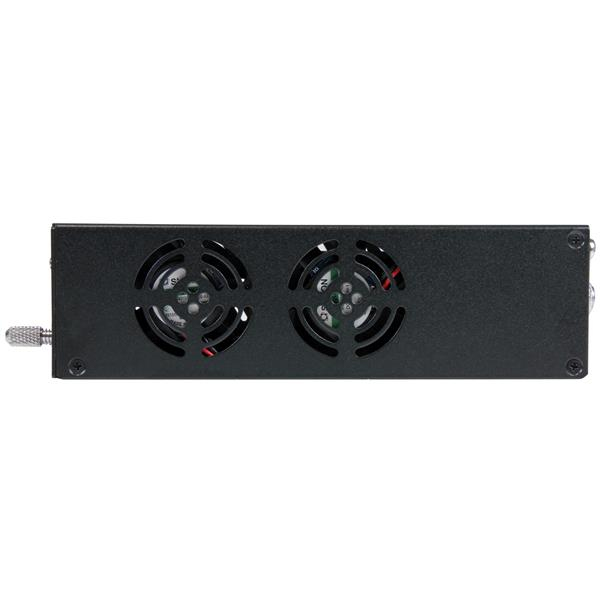

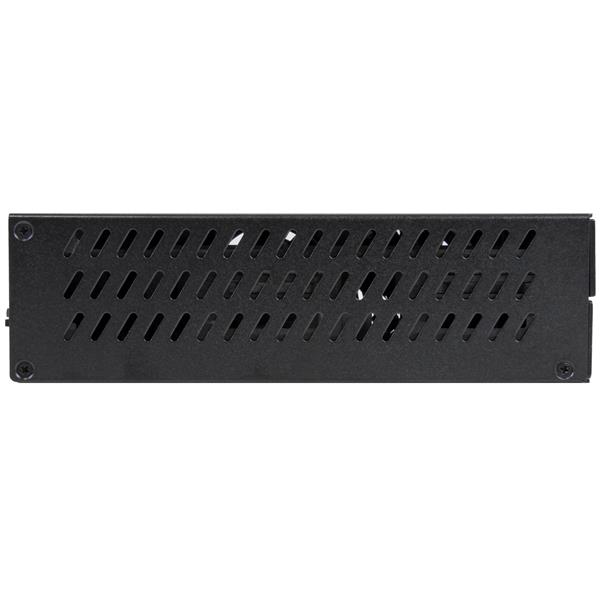

10 Gigabit Ethernet Copper-to-Fiber Media Converter - Open SFP+ - Managed
Model ET10GSFPEAN 065030864169
44 specifications
- Speed20000 Mbit/s
- ConnectivityWired
- Weight680 g
- ColourBlack
- Wavelength-division multiplexing (WDM)No
- Input voltage100 - 240 V
Overview
- Speed
- 20000 Mbit/s
- Connectivity
- Wired
- Weight
- 680 g
- Colour
- Black
- Wavelength-division multiplexing (WDM)
- No
- Input voltage
- 100 - 240 V
- Brand
- StarTech.com
- Category
- Network Media Converter
- Model
- ET10GSFP
- Part number
- ET10GSFP
- EAN / UPC
- 065030864169
- Also known as
- StarTech.com 10 Gigabit Ethernet Copper-to-Fiber Media Converter - Open SFP+ - Managed
Specifications
44 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 20000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Fiber ethernet cabling technology | 10GBASE-ER, 10GBASE-EW, 10GBASE-LR, 10GBASE-LW, 10GBASE-R, 10GBASE-SR, 10GBASE-SW |
| Jumbo frames support | Yes |
| Jumbo frames | 9600 |
| Flow control support | No |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full |
Performance
| Specification | Value |
|---|---|
| Wavelength-division multiplexing (WDM) | No |
| Fiber mode structure | Multi-mode, Single-mode |
| Mean time between failures (MTBF) | 57000 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Steel |
| LED indicators | Alarm, Link, Power |
| Product colour | Black |

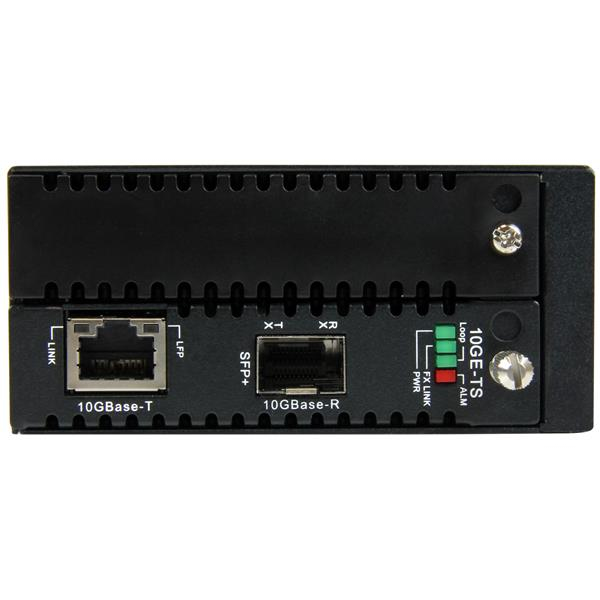

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP+ |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 0.75 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power consumption (max) | 36 W |
| Power over Ethernet (PoE) | No |
| External power adapter | Yes |
| Power plug type | Type M |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 97 mm |
| Depth | 152 mm |
| Height | 45 mm |
| Weight | 680 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |

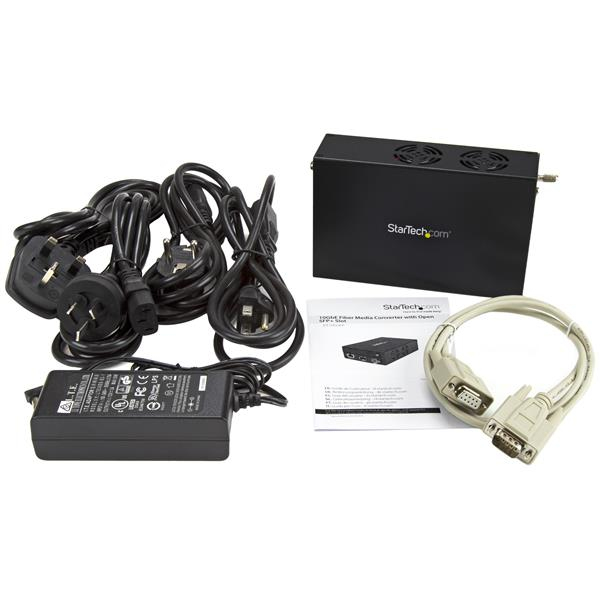

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 236 mm |
| Package depth | 333 mm |
| Package height | 79 mm |
| Package weight | 1.95 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
