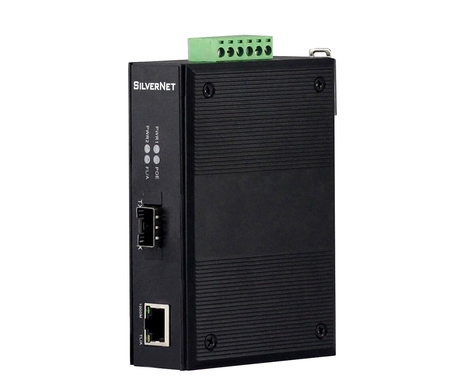

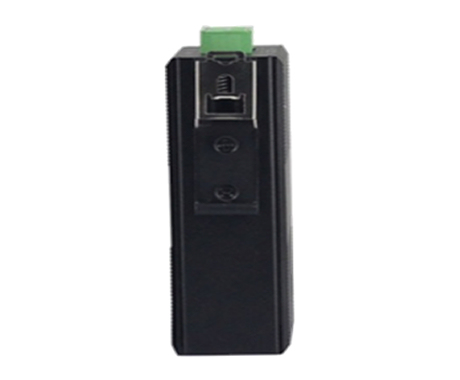

3100P-SFP network media converter 1000 Mbit/s Black
Model 3100P-SFPPart no. SIL 3100P-SFPEAN 5060693980398
38 specifications
- Speed1000 Mbit/s
- Weight300 g
- ColourBlack
- Reset buttonYes
- Fiber ports quantity1
- Power consumption (typical)5 W
Overview
- Speed
- 1000 Mbit/s
- Weight
- 300 g
- Colour
- Black
- Reset button
- Yes
- Fiber ports quantity
- 1
- Power consumption (typical)
- 5 W
- Brand
- SilverNet
- Category
- Network Media Converter
- Model
- 3100P-SFP
- Part number
- SIL 3100P-SFP
- EAN / UPC
- 5060693980398
- Also known as
- SilverNet 3100P-SFP network media converter 1000 Mbit/s Black
Specifications
38 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 10BASE-TX, 1000BASE-T |
| Fiber ethernet cabling technology | 1000BASE-FX |
| Jumbo frames support | Yes |
| Jumbo frames | 1632 |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
Features
| Specification | Value |
|---|---|
| Reset button | Yes |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP40 |
| LED indicators | LAN, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 81 mm |
| Height | 35 mm |
| Weight | 300 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 95 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 215 mm |
| Package depth | 75 mm |
| Package height | 175 mm |
| Package weight | 505 g |
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Certification | CE FCC 15 A IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 EN50121-4 |
Logistics data
| Specification | Value |
|---|---|
| UK Trade Tariff code | 85176200 |
Other features
| Specification | Value |
|---|---|
| Full duplex | Yes |
| MAC address table | 1000 entries |
