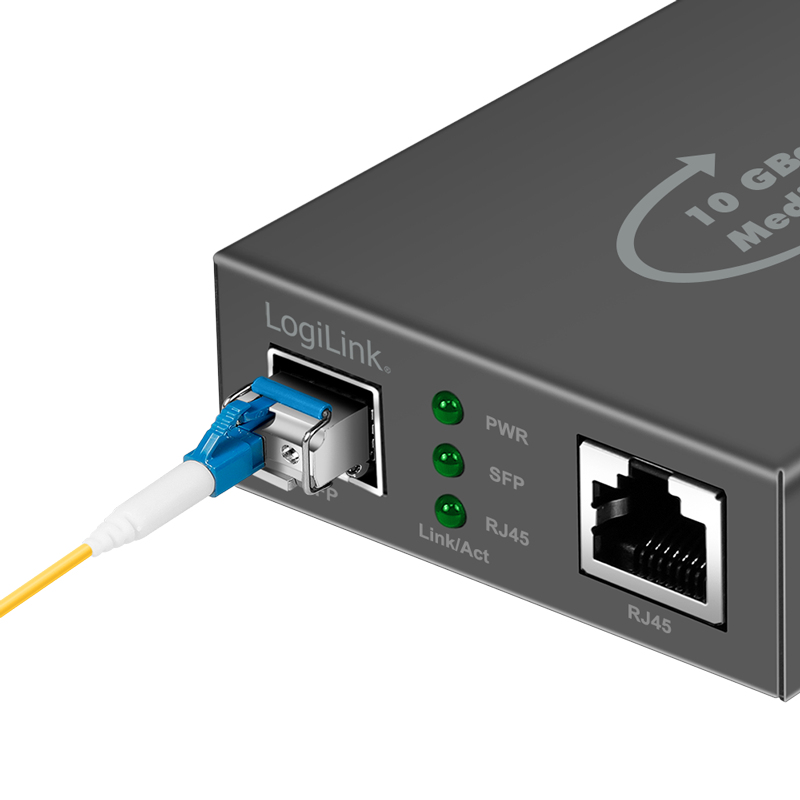

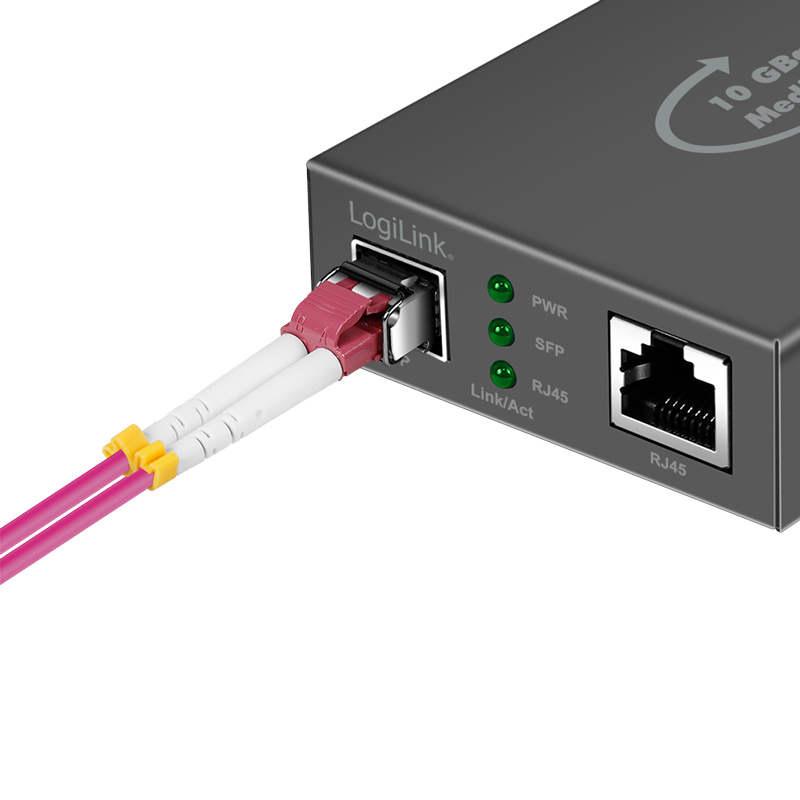

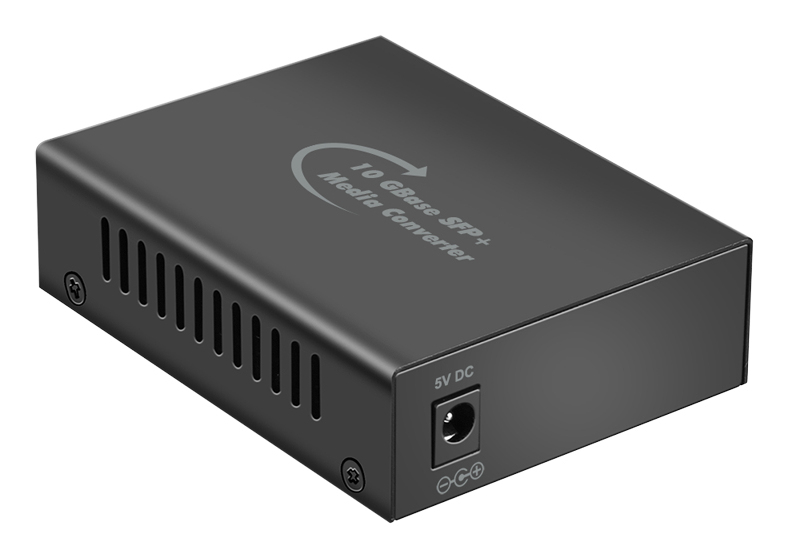

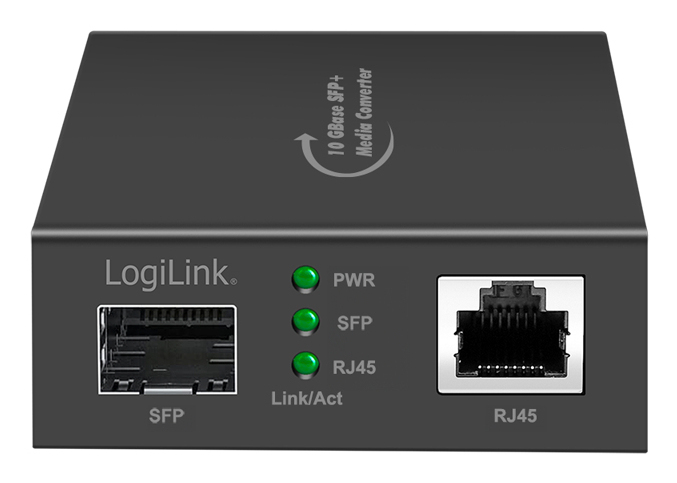

NMC003 network media converter 10000 Mbit/s Black
Model NMC003EAN 4052792075588
31 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- Weight155 g
- ColourBlack
- InternalNo
- Input voltage12 V
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Weight
- 155 g
- Colour
- Black
- Internal
- No
- Input voltage
- 12 V
- Brand
- LogiLink
- Category
- Network Media Converter
- Model
- NMC003
- Part number
- NMC003
- EAN / UPC
- 4052792075588
- Also known as
- LogiLink NMC003 network media converter 10000 Mbit/s Black
Specifications
31 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Data transfer rate | 10000 Mbit/s |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 1 A |
| Power consumption (max) | 3 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 93.5 mm |
| Depth | 70.5 mm |
| Height | 26 mm |
| Weight | 155 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 20 - 80% |

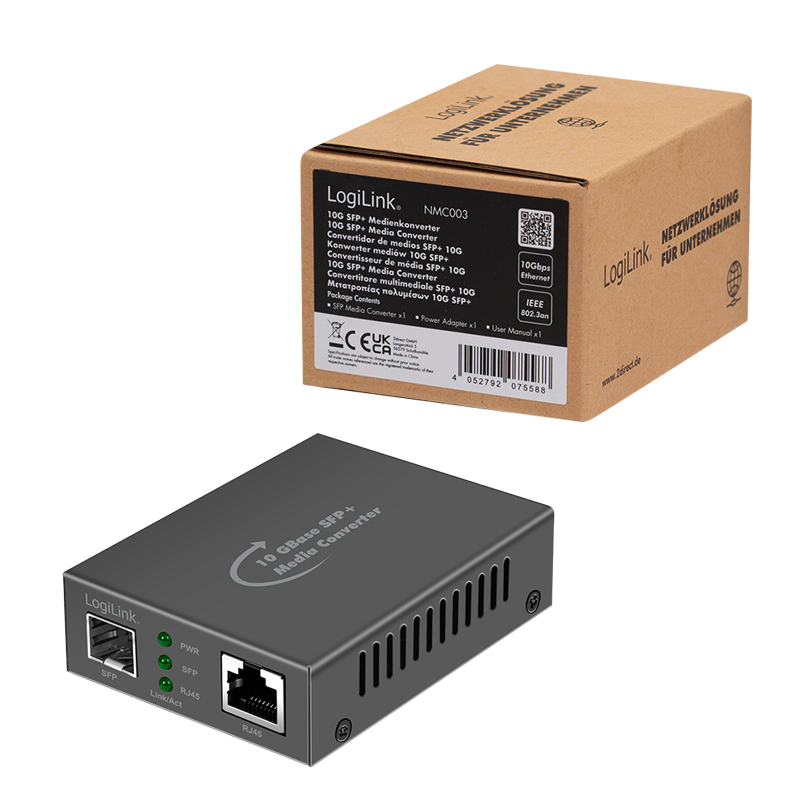

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 103 mm |
| Package depth | 80 mm |
| Package height | 60 mm |
| Package weight | 249 g |
| Package type | Box |
