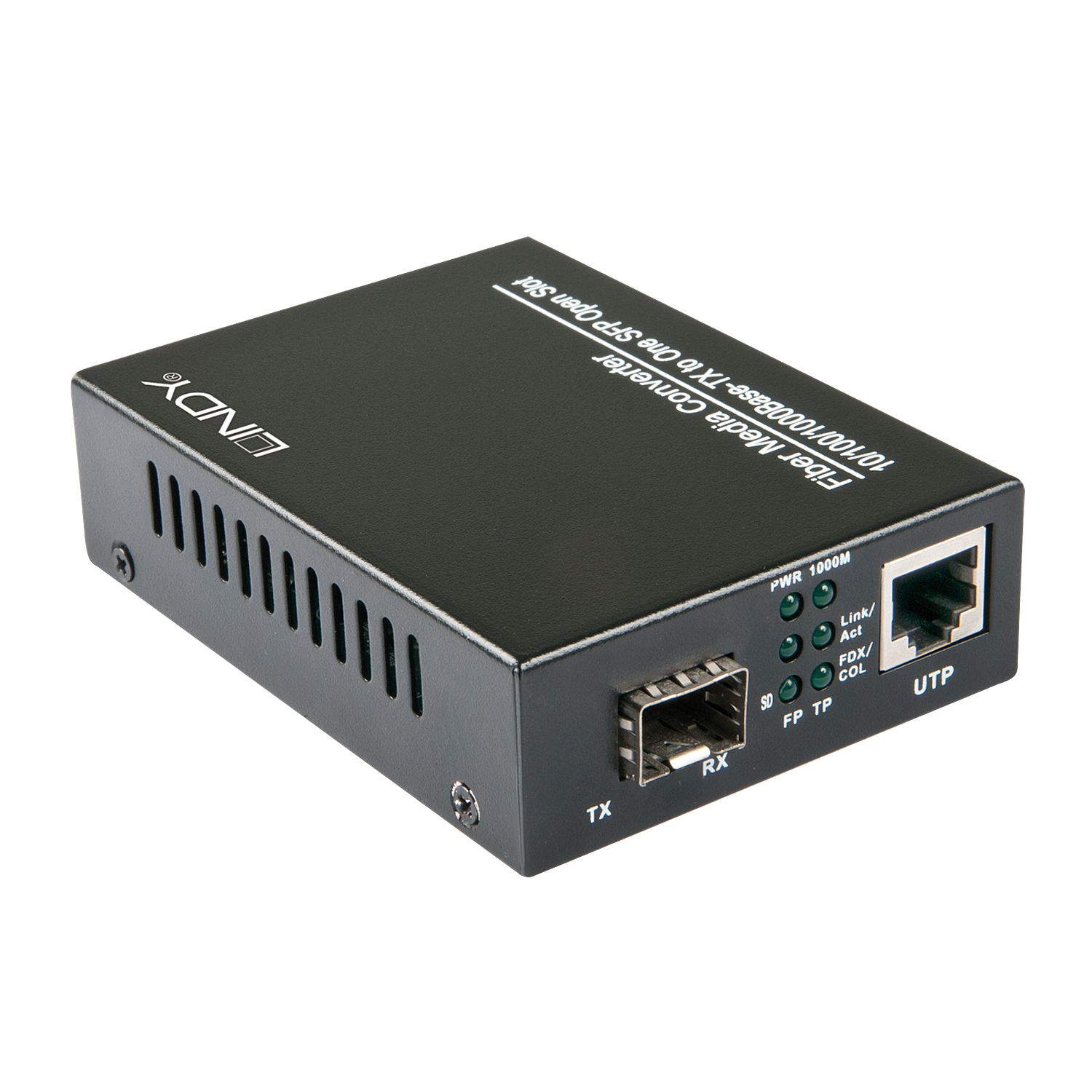

25125 network media converter 1000 Mbit/s Multi-mode, Single-mode Black
Model 25125EAN 4002888251259
29 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourBlack
- Fiber mode structureMulti-mode, Single-mode
- InternalNo
- Input voltage100 - 240 V
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Fiber mode structure
- Multi-mode, Single-mode
- Internal
- No
- Input voltage
- 100 - 240 V
- Brand
- Lindy
- Category
- Network Media Converter
- Model
- 25125
- Part number
- 25125
- EAN / UPC
- 4002888251259
- Also known as
- Lindy 25125 network media converter 1000 Mbit/s Multi-mode, Single-mode Black
Specifications
29 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Converter output interface | 100Base-FX, 1000Base-LX, 1000Base-SX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Fiber ethernet cabling technology | 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Fiber mode structure | Multi-mode, Single-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | MiniGBIC |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 0.25 A |
| Output voltage | 5 V |
| Output current | 1 A |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
