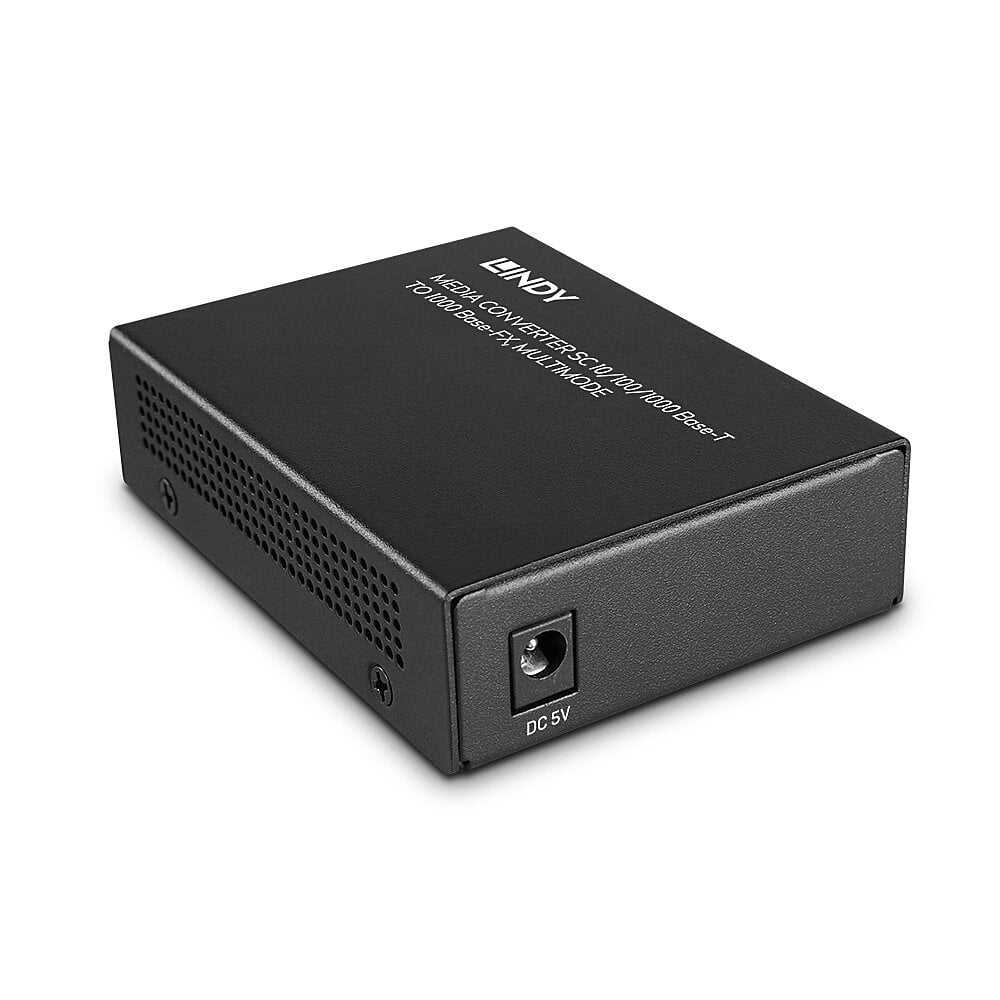

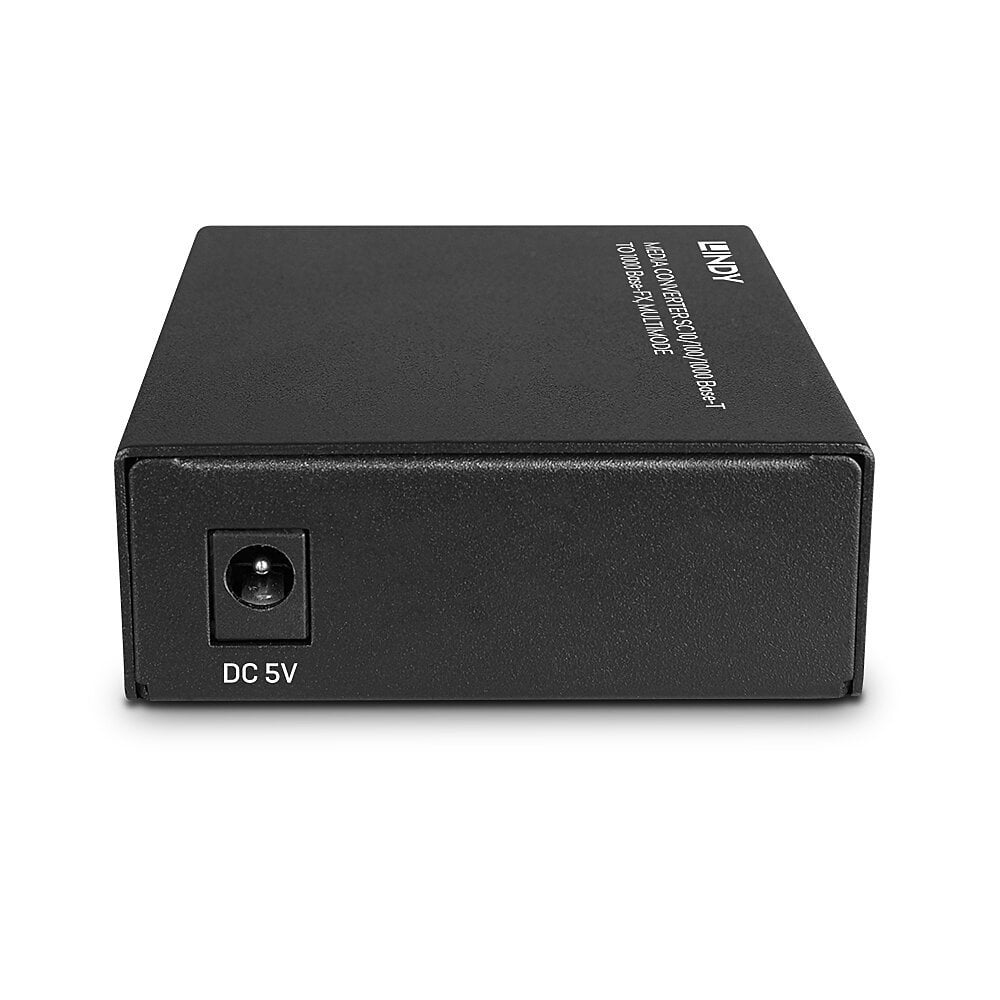

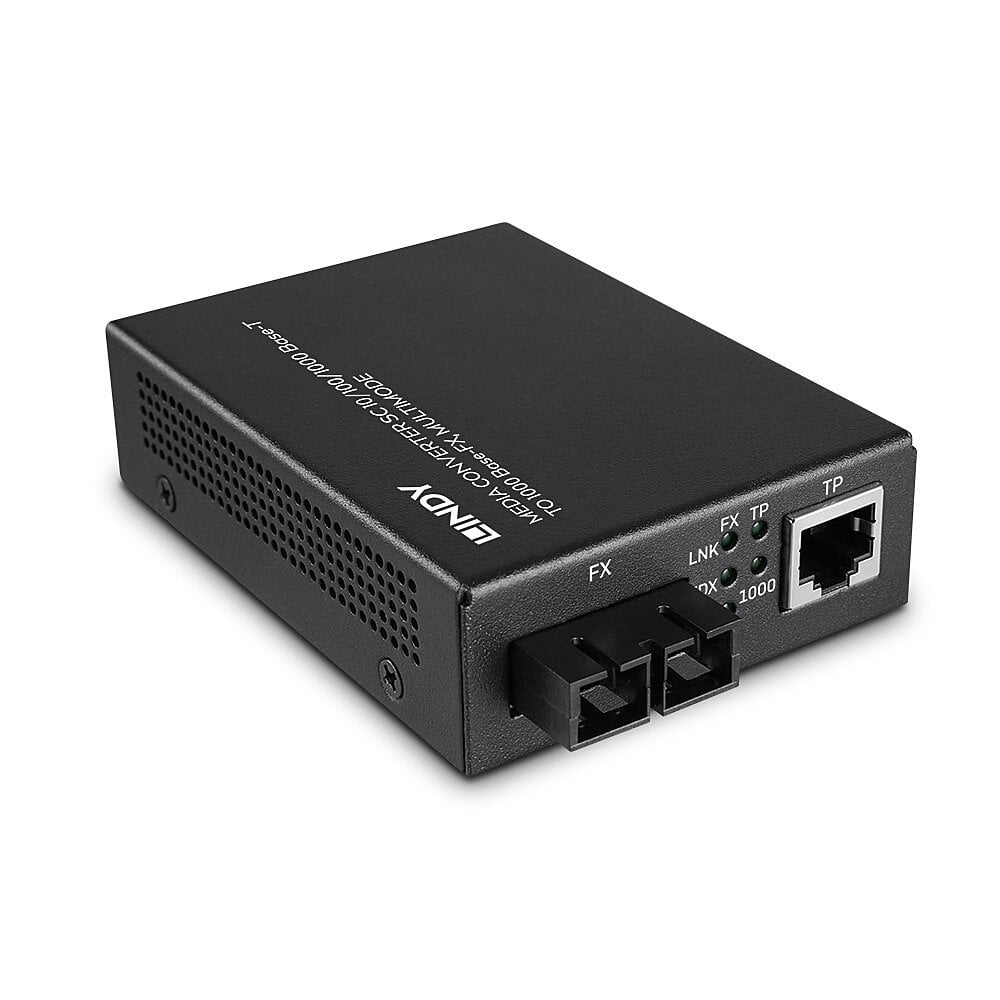

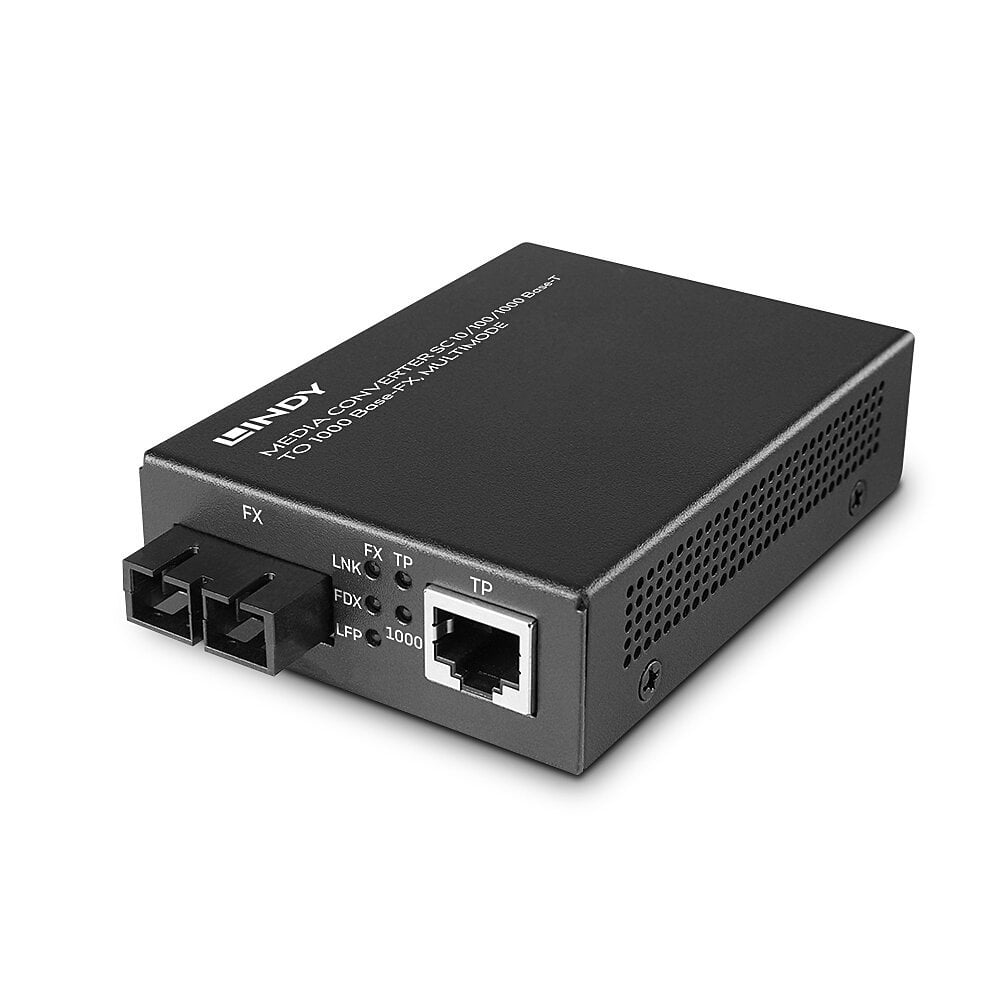

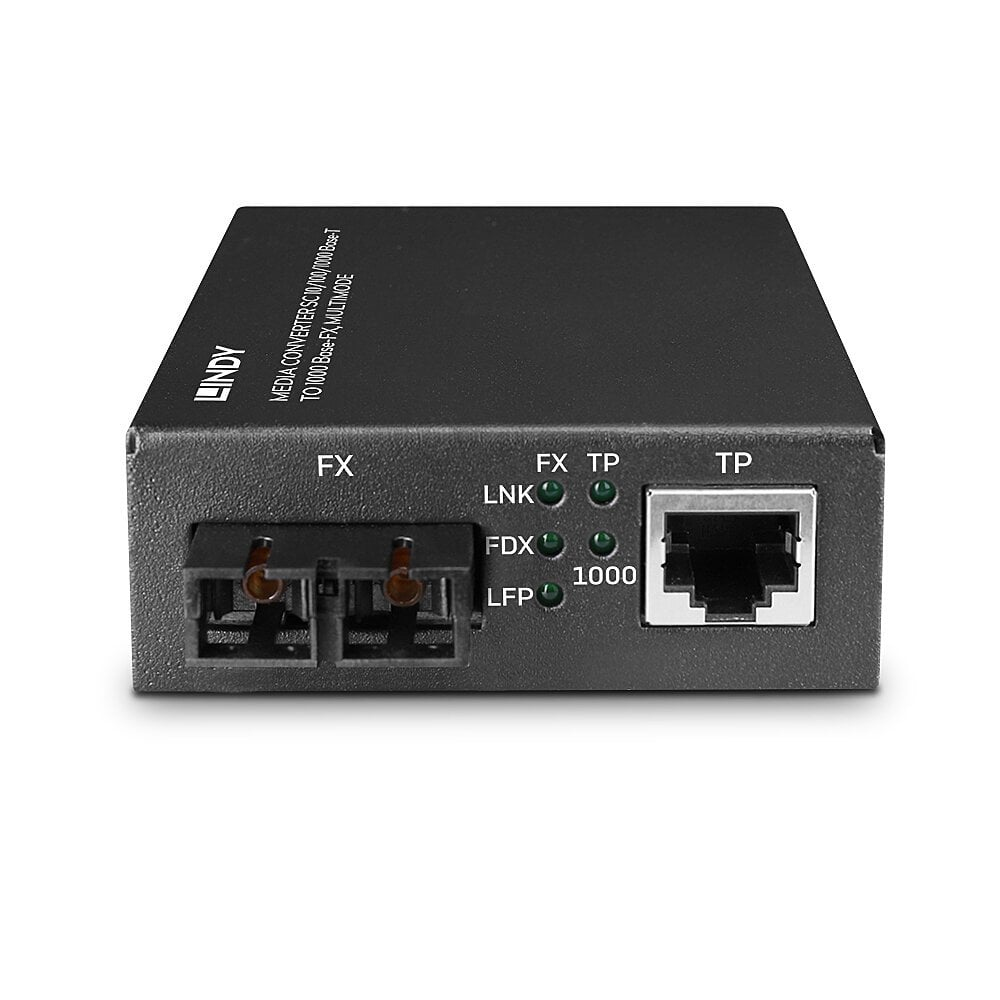

25119 network media converter 850 nm Multi-mode Black
Model 25119EAN 4002888251198
28 specifications
- ConnectivityWired
- Weight540 g
- ColourBlack
- Networking standardsIEEE 802.3
- Maximum transfer distance550 m
- InternalNo
Overview
- Connectivity
- Wired
- Weight
- 540 g
- Colour
- Black
- Networking standards
- IEEE 802.3
- Maximum transfer distance
- 550 m
- Internal
- No
- Brand
- Lindy
- Category
- Network Media Converter
- Model
- 25119
- Part number
- 25119
- EAN / UPC
- 4002888251198
- Also known as
- Lindy 25119 network media converter 850 nm Multi-mode Black
Specifications
28 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SC |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Output current | 1 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 70 mm |
| Height | 25 mm |
| Weight | 540 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 155 mm |
| Package height | 45 mm |
| Package weight | 650 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
