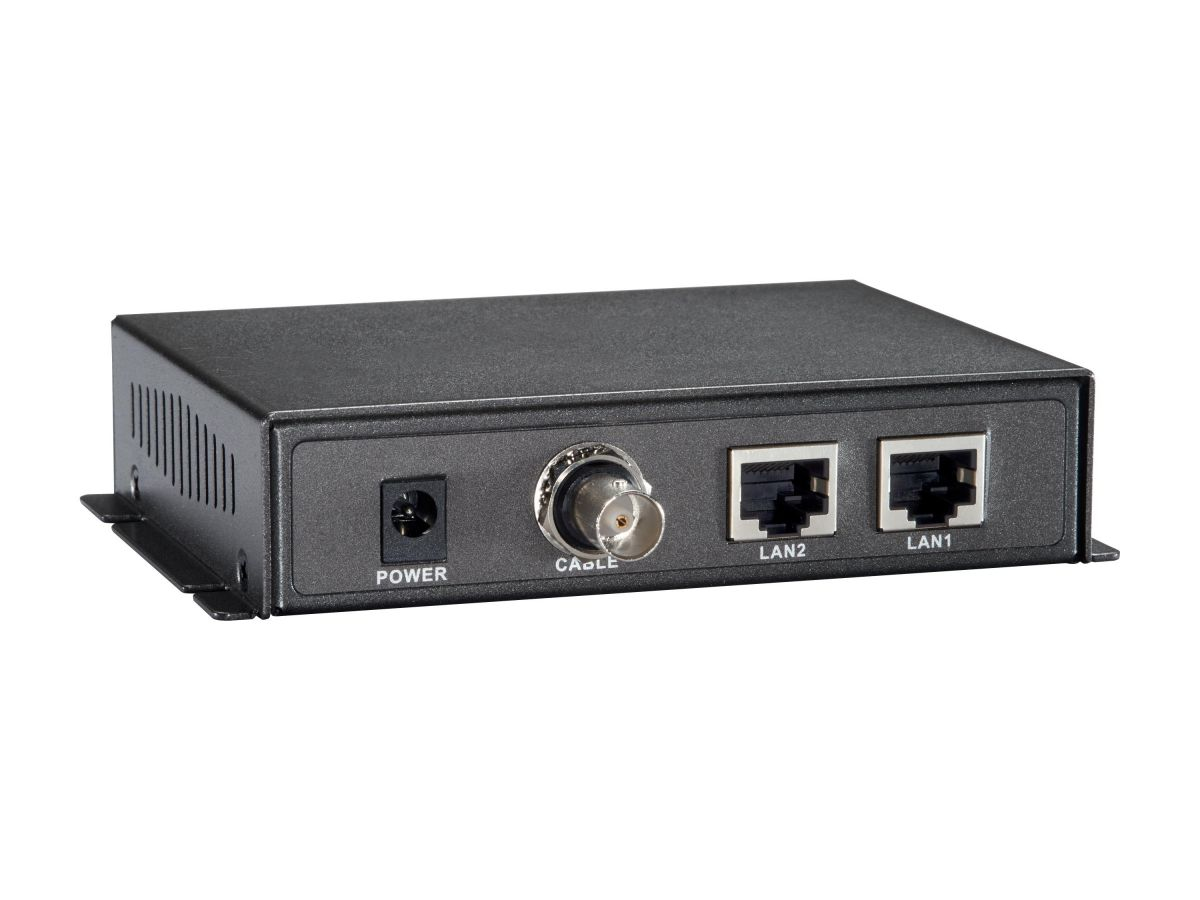

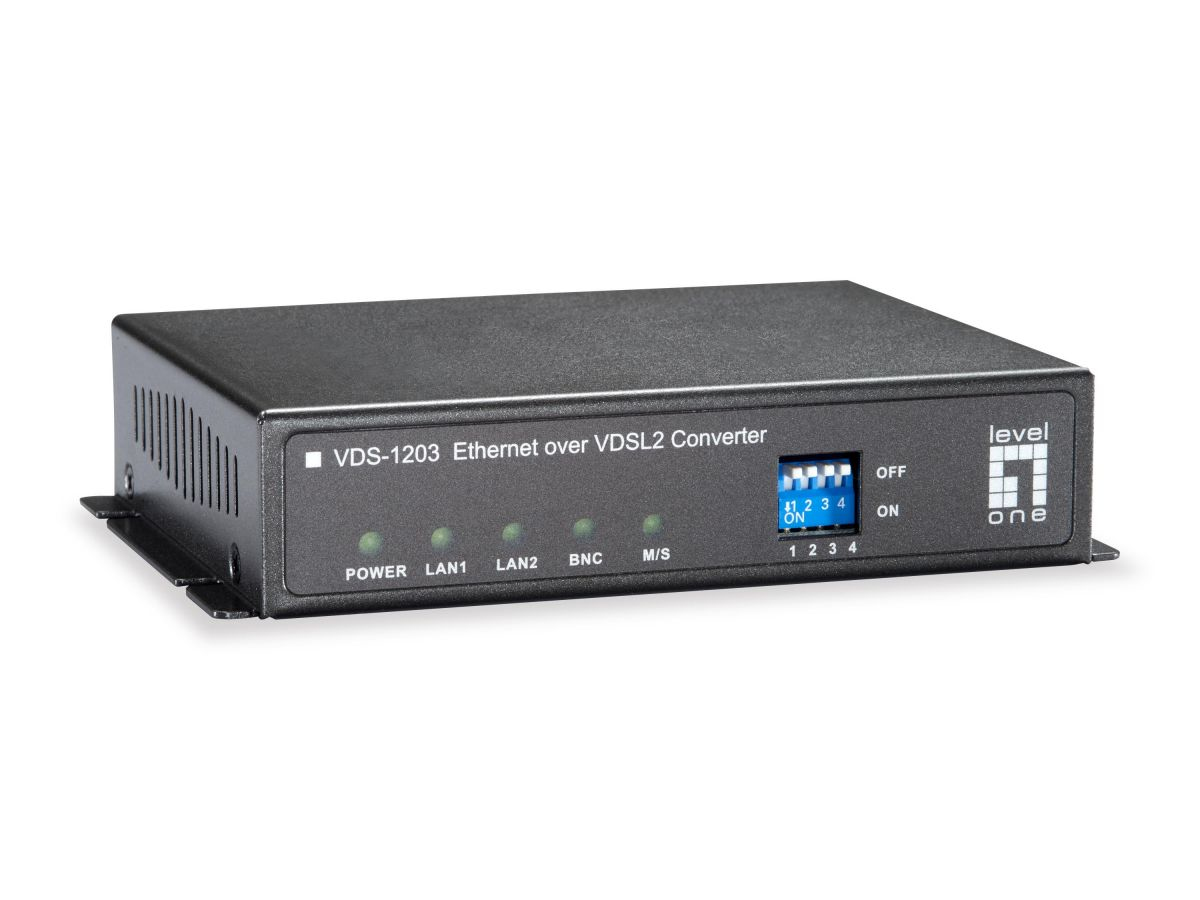

Ethernet over VDSL2 Converter, BNC
Model VDS-1203EAN 4015867209080
18 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight330 g
- ColourBlack
- Maximum transfer distance250 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 330 g
- Colour
- Black
- Maximum transfer distance
- 250 m
- Internal
- No
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- VDS-1203
- Part number
- VDS-1203
- EAN / UPC
- 4015867209080
- Also known as
- LevelOne Ethernet over VDSL2 Converter, BNC
Specifications
18 specifications in 7 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 250 m |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Plug and Play | Yes |
| LED indicators | DSL, LAN, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 2 |
| BNC ports quantity | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 120 mm |
| Height | 28 mm |
| Weight | 330 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
