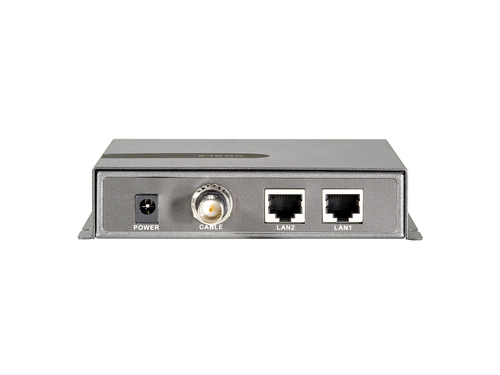

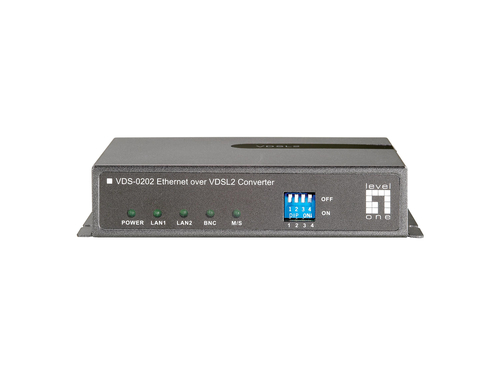

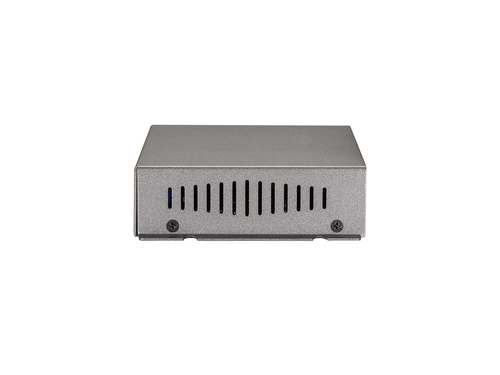

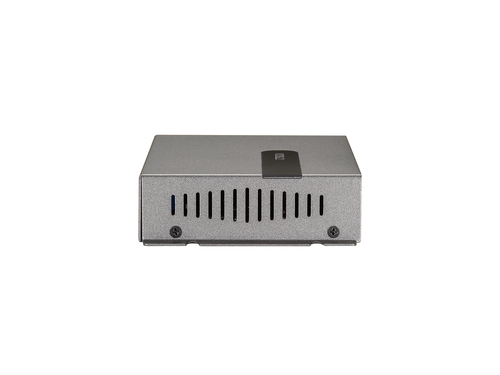

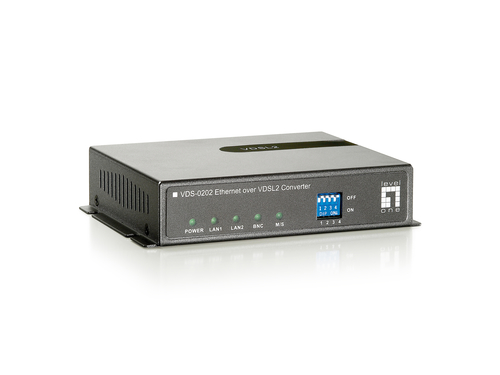

Ethernet over VDSL2 Converter, BNC
Model VDS-0202EAN 4005922210359
26 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight550 g
- ColourBlack
- Maximum transfer distance1400 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 550 g
- Colour
- Black
- Maximum transfer distance
- 1400 m
- Internal
- No
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- VDS-0202
- Part number
- VDS-0202
- EAN / UPC
- 4005922210359, 4015867142776
- Also known as
- LevelOne Ethernet over VDSL2 Converter, BNC
Specifications
26 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 1400 m |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | LAN, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Output current | 2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 120 mm |
| Height | 28 mm |
| Weight | 550 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 150 mm |
| Package depth | 80 mm |
| Package height | 230 mm |
| Package weight | 800 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC Class B |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
