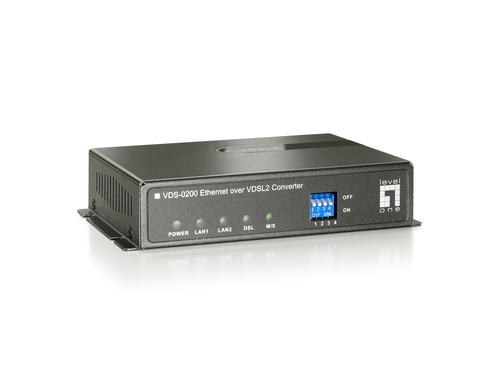

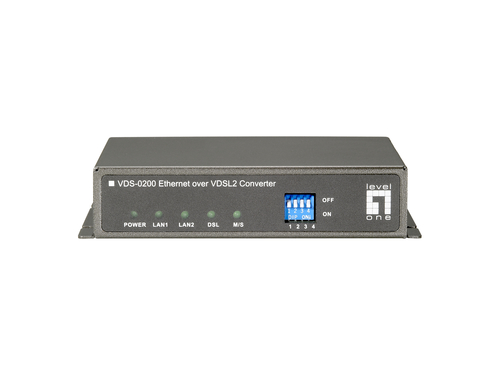

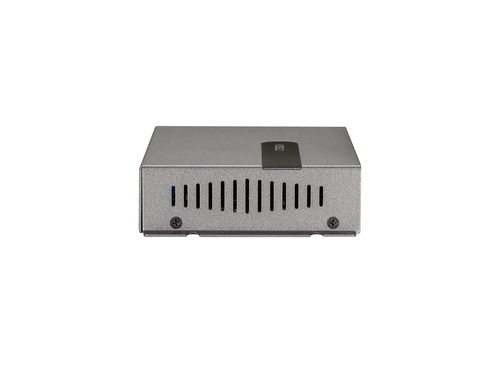

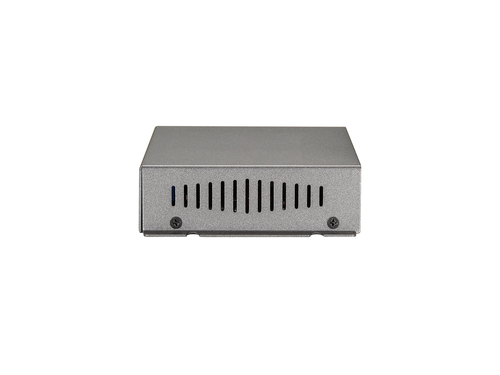

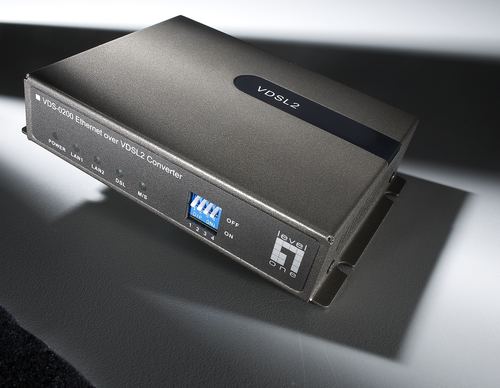

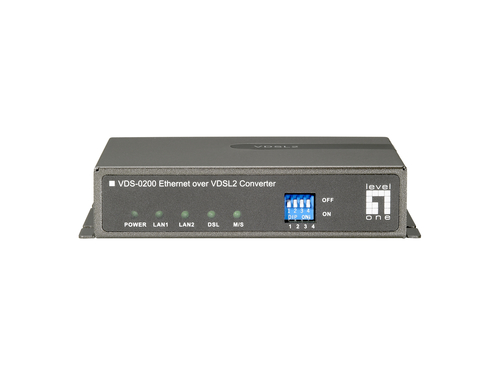

Ethernet over VDSL2 Converter, Annex A
Model VDS-0200EAN 4014619046607
29 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight550 g
- ColourBlack
- Maximum transfer distance300 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 550 g
- Colour
- Black
- Maximum transfer distance
- 300 m
- Internal
- No
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- VDS-0200
- Part number
- VDS-0200
- EAN / UPC
- 4014619046607, 4015867142752, 5050914860158
- Also known as
- LevelOne Ethernet over VDSL2 Converter, Annex A
Specifications
29 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 300 m |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | DSL, LAN, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |

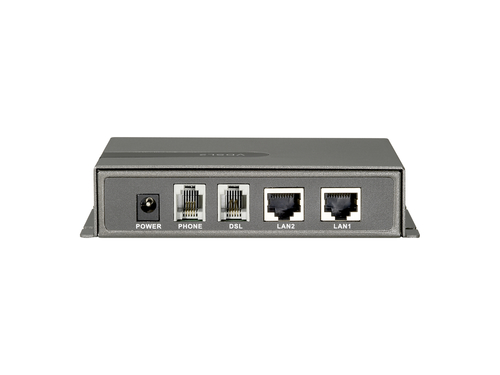

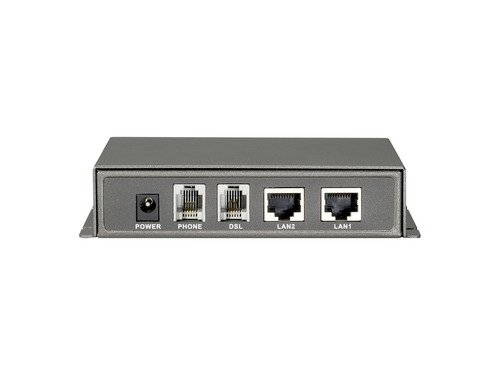

| Ethernet LAN (RJ-45) ports | 2 |
| RJ-11 ports quantity | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Output current | 2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 120 mm |
| Height | 28 mm |
| Weight | 550 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 150 mm |
| Package depth | 234 mm |
| Package height | 81 mm |
| Package weight | 800 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC Class B |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
