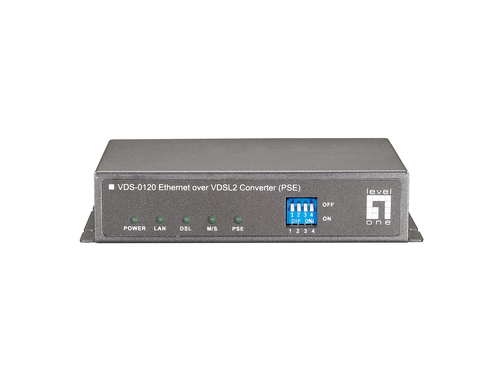

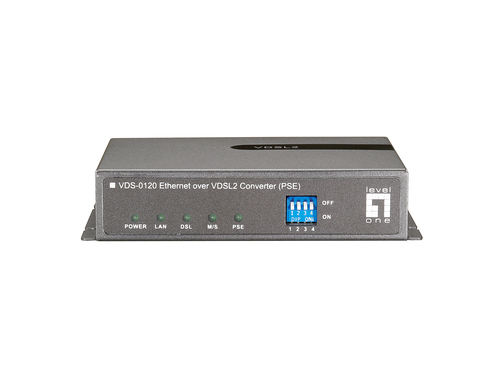

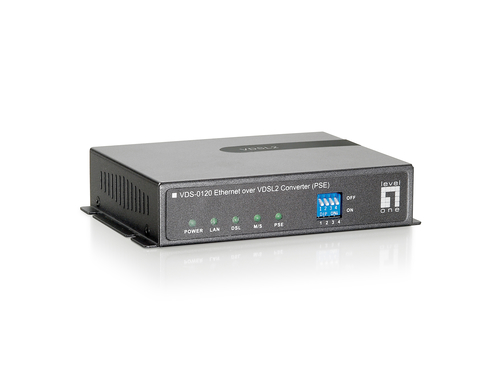

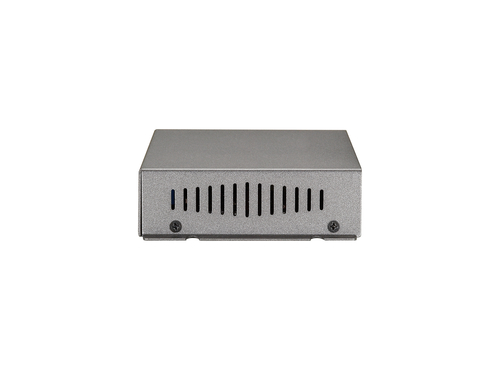

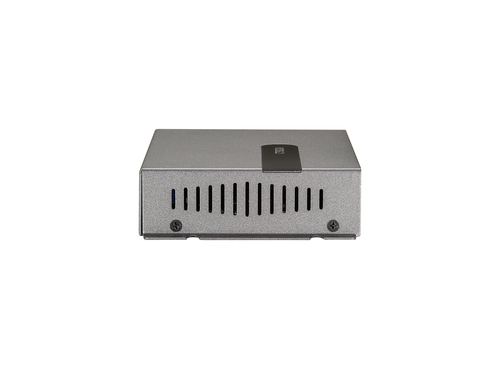

LevelOne Ethernet over VDSL2 Converter, 1 PoE Output

LevelOne Ethernet over VDSL2 Converter, 1 PoE Output

Model VDS-0120EAN 4005922210526

30 specifications
  • Speed100 Mbit/s
  • ConnectivityWired
  • Weight550 g
  • ColourBlack
  • Maximum transfer distance300 m
  • InternalNo
See all specifications

Overview

Speed
100 Mbit/s
Connectivity
Wired
Weight
550 g
Colour
Black
Maximum transfer distance
300 m
Internal
No
Brand
LevelOne
Model
VDS-0120
Part number
VDS-0120
EAN / UPC
4005922210526, 4005922242343, 4014619297887, 4015867143650
Also known as
LevelOne Ethernet over VDSL2 Converter, 1 PoE Output

Specifications

30 specifications in 10 groups

Network

Maximum data transfer rate100 Mbit/s
Converter input interface10Base-T, 100Base-TX
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3u
Ethernet interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Auto MDI/MDI-XYes
Duplex systemFull, Half

Performance

Maximum transfer distance300 m

Features

InternalNo
LED indicatorsDSL, LAN, Power
Product colourBlack

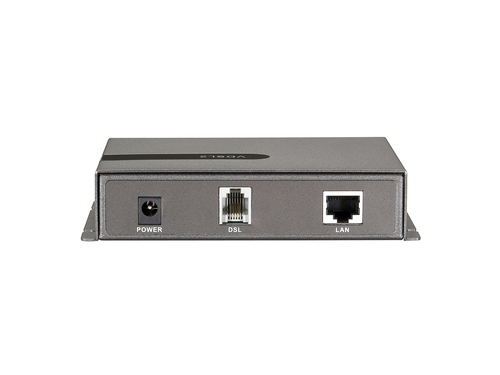

Ports & interfaces

Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
RJ-11 ports quantity1
DC-in jackYes

Power

Output voltage12 V
Output current2 A

Weight & dimensions

Width90 mm
Depth120 mm
Height28 mm
Weight550 g

Operational conditions

Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)5 - 95%

Packaging data

Package width150 mm
Package depth235 mm
Package height80 mm
Package weight810 g

Certificates

CertificationFCC Rules Part 15 Class B CE

Logistics data

Country of originTaiwan
Harmonized System (HS) code85176990
