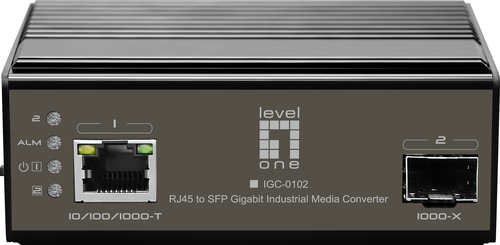

IGC-0102 network media converter 1000 Mbit/s Black
Model IGC-0102EAN 4015867223949
28 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight300 g
- ColourBlack
- InternalNo
- Width65 mm
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 300 g
- Colour
- Black
- Internal
- No
- Width
- 65 mm
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- IGC-0102
- Part number
- IGC-0102
- EAN / UPC
- 4015867223949
- Also known as
- LevelOne IGC-0102 network media converter 1000 Mbit/s Black
Specifications
28 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
Features
| Specification | Value |
|---|---|
| Internal | No |
| DIN rail mounting | Yes |
| Housing material | Metal |
| LED indicators | Activity, Alarm, Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 36 mm |
| Height | 101 mm |
| Weight | 300 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -45 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 110 mm |
| Package depth | 62 mm |
| Package height | 130 mm |
| Package weight | 350 g |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Pallet net height | 159 cm |
| Pallet net length | 80 cm |
| Pallet net width | 120 cm |
