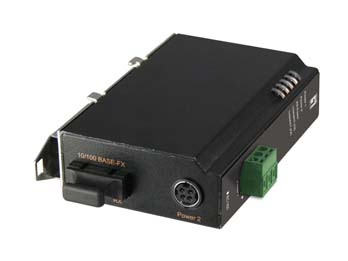

LevelOne IEC-1420 network media converter 100 Mbit/s Black
Model IEC-1420EAN 4015867184011
32 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight250 g
- ColourBlack
- Maximum transfer distance20000 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 250 g
- Colour
- Black
- Maximum transfer distance
- 20000 m
- Internal
- No
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- IEC-1420
- Part number
- IEC-1420
- EAN / UPC
- 4015867184011, 5050914832735
- Also known as
- LevelOne IEC-1420 network media converter 100 Mbit/s Black
Specifications
32 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Buffer size | 28.5 KB |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Plug and Play | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Power
| Specification | Value |
|---|---|
| Input voltage | 48 V |
| Power consumption (typical) | 3.6 W |
| Power over Ethernet (PoE) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 110 mm |
| Height | 30 mm |
| Weight | 250 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Safety | UL508 |
| Certification | FCC Part 15 Class A EN61000-6-4 EN61000-6-2 |
