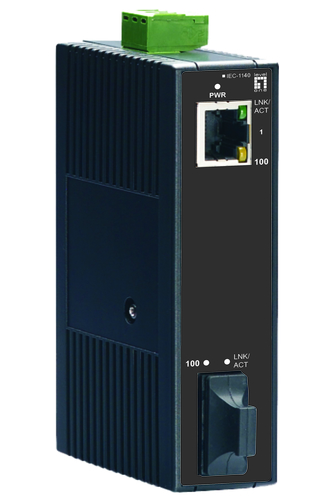

LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 20km, -10°C to 60°C
Model IEC-1120EAN 4015867183915
49 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight200 g
- ColourBlack
- Maximum transfer distance20000 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 200 g
- Colour
- Black
- Maximum transfer distance
- 20000 m
- Internal
- No
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- IEC-1120
- Part number
- IEC-1120
- EAN / UPC
- 4015867183915, 5050914832797
- Also known as
- LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 20km, -10°C to 60°C
Specifications
49 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148810 pps |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Fiber mode structure | Single-mode |
| Buffer size | 484 KB |
| Mean time between failures (MTBF) | 1063464 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Plug and Play | Yes |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Activity, Link, Power, Status |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 - 48 V |
| Output current (12V) | 0.3 A |
| Output current (24V) | 0.15 A |
| Output current (48V) | 0.07 A |
| Power consumption (max) | 4.3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 26 mm |
| Depth | 70 mm |
| Height | 110 mm |
| Weight | 200 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 180 mm |
| Package depth | 79 mm |
| Package height | 221 mm |
| Package weight | 500 g |
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Safety | UL60950-1, EN60950-1, IEC60950-1 |
| Certification | - FCC Part 15, Class A, VCCI - EN61000-6-4 - EN55022 - EN61000-3-2 - EN61000-3-3 - EN61000-6-2 - EN61000-4-2 - EN61000-4-3 - EN61000-4-4 - EN61000-4-5 - EN61000-4-6 - EN61000-4-8 - IEC60068-2-6 Fc - IEC60068-2-27 Ea - FED STD 101C Method 5007.1 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
