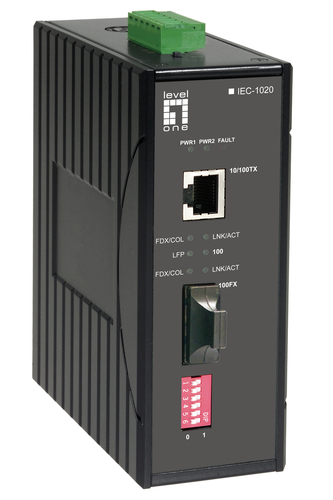

RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 20km, -40°C to 75°C
Model IEC-1020EAN 4015867183885
49 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight800 g
- ColourBlack
- Maximum transfer distance20000 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 800 g
- Colour
- Black
- Maximum transfer distance
- 20000 m
- Internal
- No
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- IEC-1020
- Part number
- IEC-1020
- EAN / UPC
- 4015867183885, 5050914832780
- Also known as
- LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 20km, -40°C to 75°C
Specifications
49 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148810 pps |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Fiber mode structure | Single-mode |
| Buffer size | 128 KB |
| Mean time between failures (MTBF) | 953788 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Activity, Link, Status |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Power
| Specification | Value |
|---|---|
| Input voltage | 10 - 48 V |
| Power consumption (typical) | 4.32 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 110 mm |
| Height | 135 mm |
| Weight | 800 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 198 mm |
| Package depth | 92 mm |
| Package height | 236 mm |
| Package weight | 950 g |
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Safety | Class 1, Division 2 group A,B,C&DUL60950-1, EN60950-1, IEC60950-1 |
| Certification | FCC |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 418 mm |
| Master (outer) case length | 255 mm |
| Master (outer) case height | 520 mm |
| Master (outer) case gross weight | 9.5 kg |
| Products per master (outer) case | 10 pc(s) |
