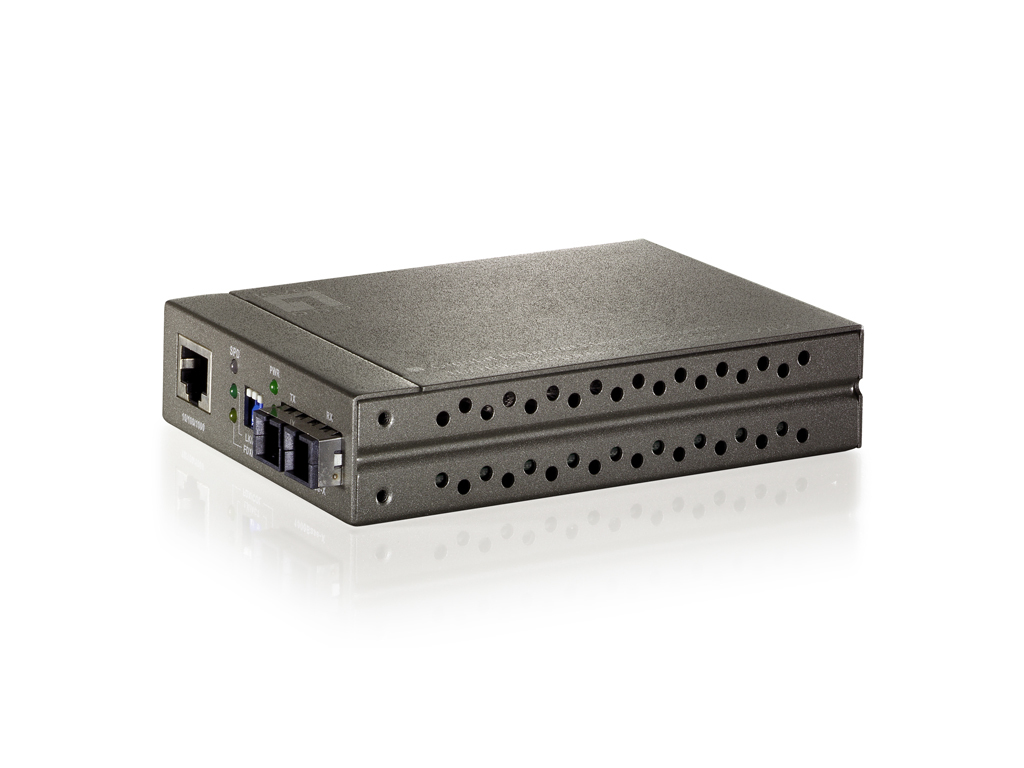

1000BaseT to 1000SX SC MultiMode
Model GVT-4001EAN 4014619102242
37 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourBlack
- Wavelength850 nm
- InternalNo
- Output voltage9 V
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Wavelength
- 850 nm
- Internal
- No
- Output voltage
- 9 V
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- GVT-4001
- Part number
- GVT-4001
- EAN / UPC
- 4014619102242, 4015867133835, 5050914828721, 5711045426551
- Also known as
- LevelOne 1000BaseT to 1000SX SC MultiMode
Specifications
37 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-SX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
| Link Loss Carry Forward (LLCF) supported | Yes |
| Cable types supported | Cat5 |
Performance
| Specification | Value |
|---|---|
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Hot-swap | Yes |
| LED indicators | Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 9 V |
| Output current | 0.7 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 119 mm |
| Height | 26 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Safety | UL, cUL |
| Certification | EMI: FCC Class A, CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
