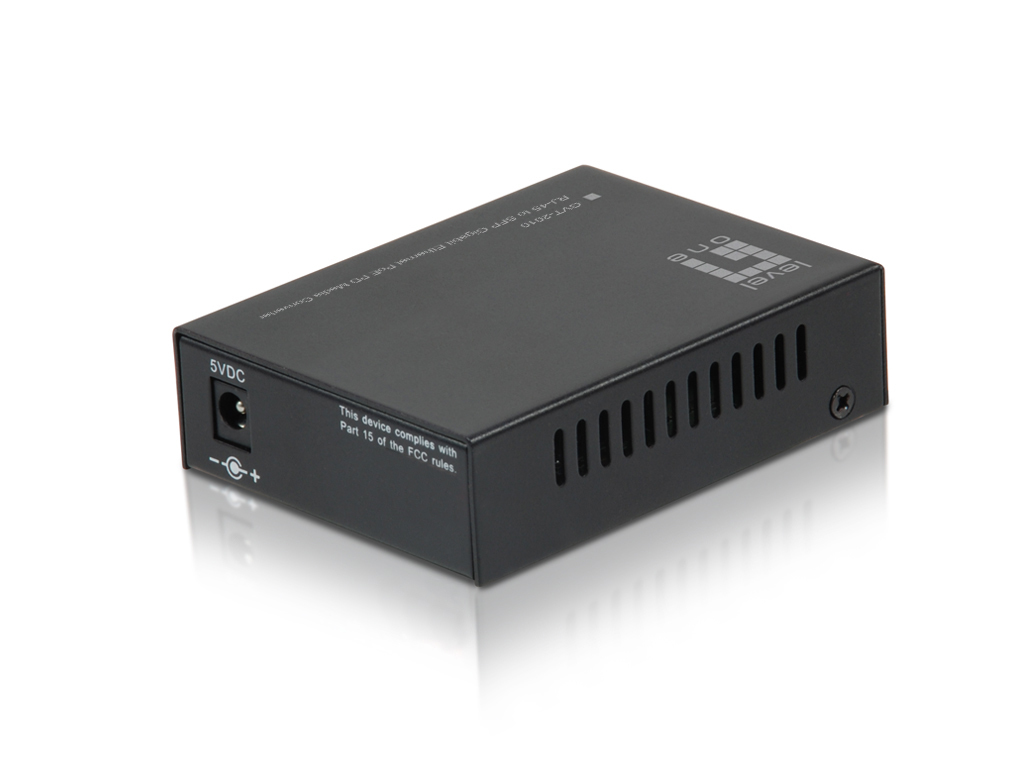

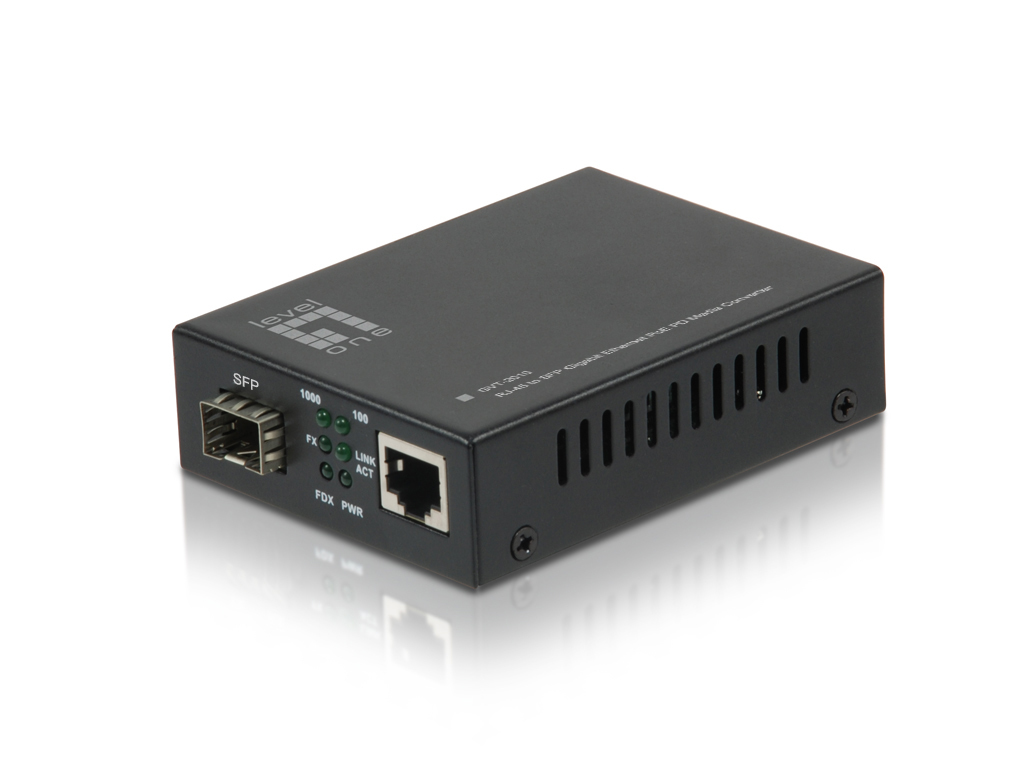

LevelOne RJ45 to SFP Gigabit Media Converter, PoE PD
Model GVT-2010EAN 4015867195192
39 specifications
- ConnectivityWired
- Weight220 g
- ColourBlack
- Ethernet LAN data rates10,100,1000 Mbit/s
- Mean time between failures (MTBF)30000 h
- InternalNo
Overview
- Connectivity
- Wired
- Weight
- 220 g
- Colour
- Black
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Mean time between failures (MTBF)
- 30000 h
- Internal
- No
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- GVT-2010
- Part number
- GVT-2010
- EAN / UPC
- 4015867195192
- Also known as
- LevelOne RJ45 to SFP Gigabit Media Converter, PoE PD
Specifications
39 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Flow control support | Yes |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 30000 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Web-based management | Yes |
| LED indicators | Activity, FDX, Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Input voltage | 90 - 264 V |
| Output voltage | 5 V |
| Output current | 2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 71 mm |
| Height | 26 mm |
| Weight | 220 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 120 mm |
| Package depth | 55 mm |
| Package height | 235 mm |
| Package weight | 430 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
