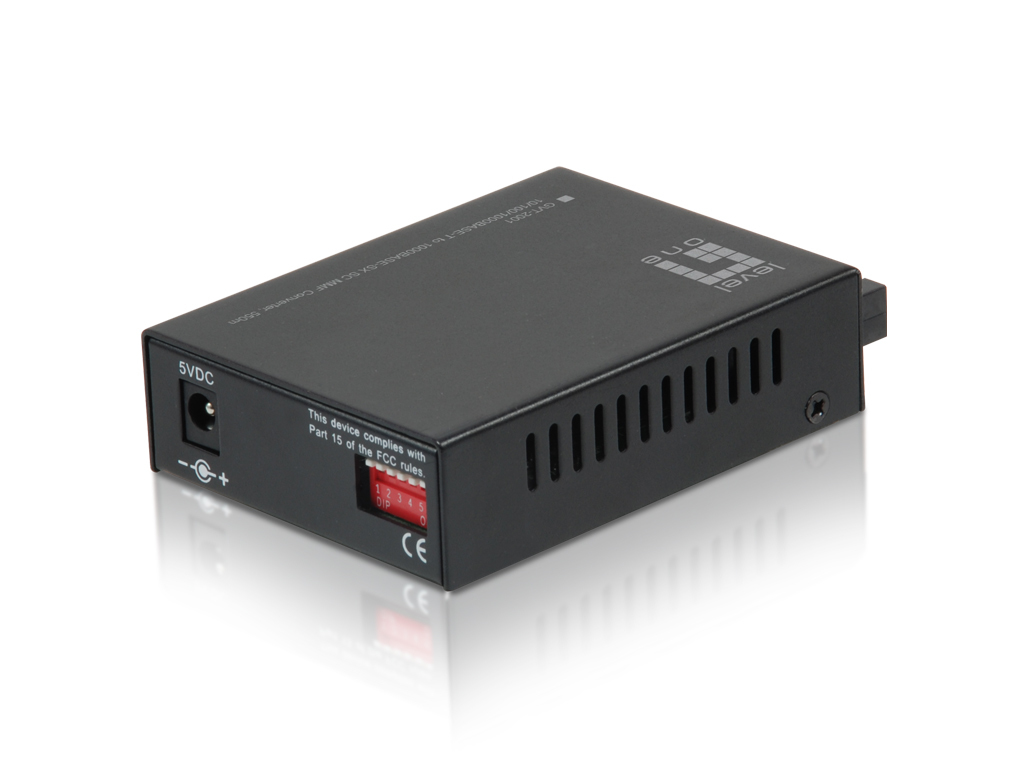

LevelOne RJ45 to SC Gigabit Media Converter, Multi-Mode Fiber, 550m
Model GVT-2001EAN 4015867185162
47 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight420 g
- ColourBlack
- Maximum transfer distance550 m
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 420 g
- Colour
- Black
- Maximum transfer distance
- 550 m
- Internal
- No
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- GVT-2001
- Part number
- GVT-2001
- EAN / UPC
- 4015867185162, 724627314660, 846359031285, 5050914832889 +1 more
- Also known as
- LevelOne RJ45 to SC Gigabit Media Converter, Multi-Mode Fiber, 550m
Specifications
47 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
| Duplex system | Full |
| Link Loss Carry Forward (LLCF) supported | Yes |
| Link Loss Return (LLR) supported | Yes |
| Cable types supported | Cat5, Cat5e |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 - 12 V |
| Input current | 2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 70 mm |
| Height | 25 mm |
| Weight | 420 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 235 mm |
| Package depth | 125 mm |
| Package height | 55 mm |
| Package weight | 530 g |
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
