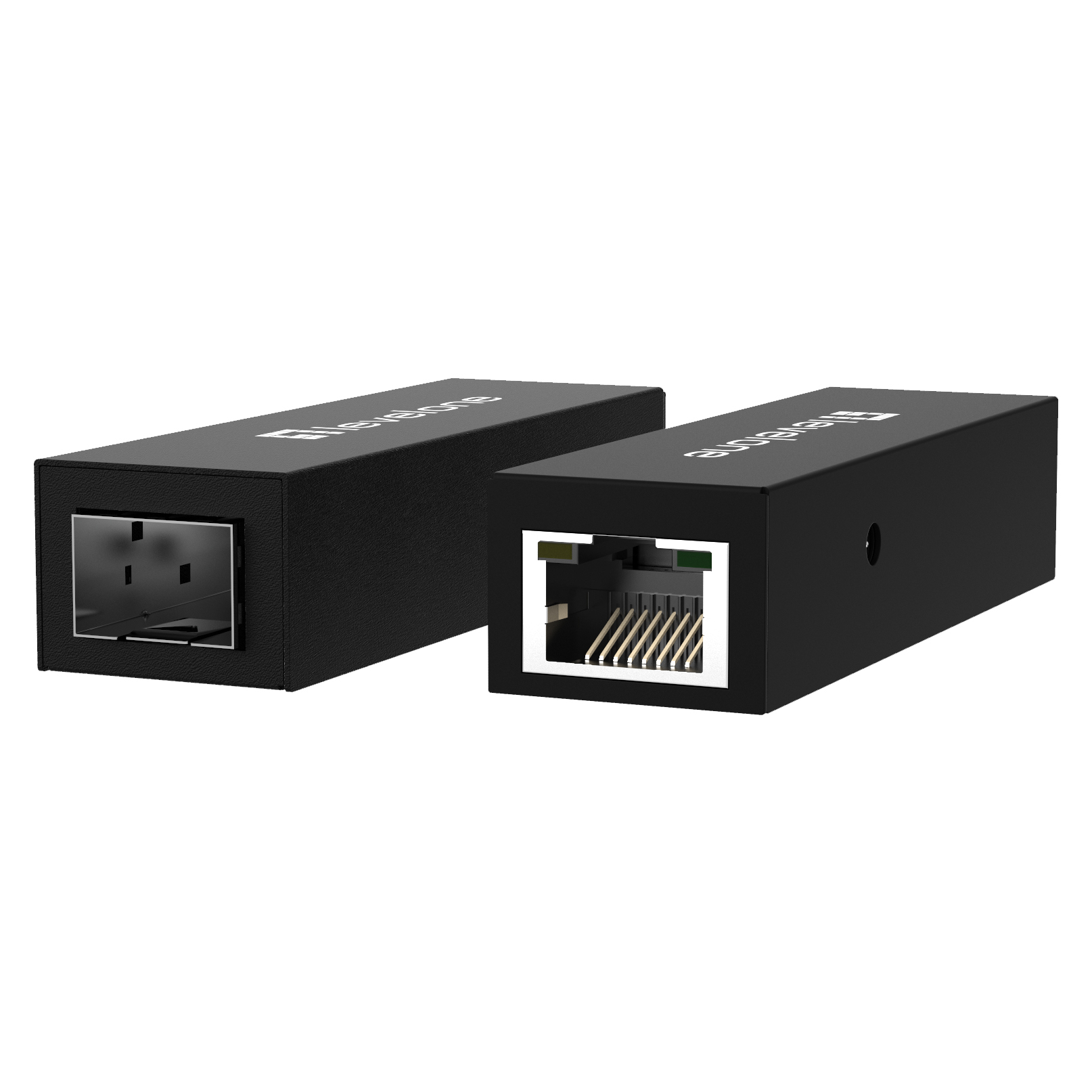

Ultra-Slim RJ45 to SFP Gigabit Media Converter
Model GVT-1001EAN 846359058329
46 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight56 g
- ColourYellow
- Mean time between failures (MTBF)100000 h
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 56 g
- Colour
- Yellow
- Mean time between failures (MTBF)
- 100000 h
- Internal
- No
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- GVT-1001
- Part number
- GVT-1001
- EAN / UPC
- 846359058329, 4015867227718, 4015867229293
- Also known as
- LevelOne Ultra-Slim RJ45 to SFP Gigabit Media Converter
Specifications
46 specifications in 12 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3z |
| Ethernet LAN data rates | 1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Plug and Play | Yes |
| LED indicators | Activity, Link |
| Product colour | Yellow |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Input current | 1 A |
| Power consumption (typical) | 1.2 W |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 23.3 mm |
| Depth | 79 mm |
| Height | 18.5 mm |
| Weight | 56 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 135 mm |
| Package depth | 105 mm |
| Package height | 45 mm |
| Package weight | 160 g |
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, UKCA, WEEE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Master (outer) cases per pallet (air) | 15 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 154.4 cm |
| Master (outer) case width | 475 mm |
| Master (outer) case length | 560 mm |
| Master (outer) case height | 275 mm |
| Master (outer) case gross weight | 17 kg |
| Products per master (outer) case | 100 pc(s) |
