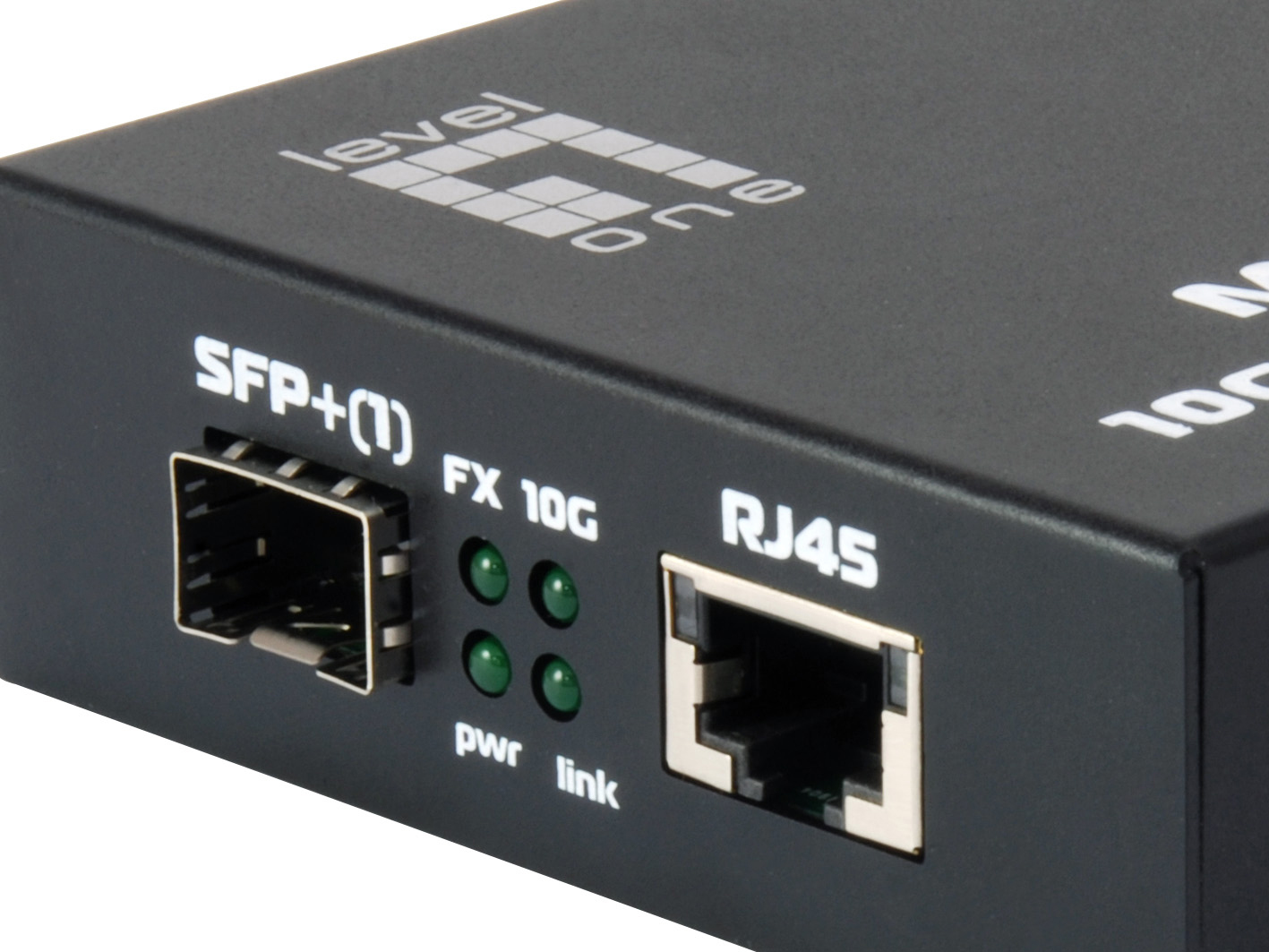

GVT-0500 network media converter 10000 Mbit/s Black
Model GVT-0500EAN 4015867209301
43 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- Weight300 g
- ColourBlack
- Maximum transfer distance100 m
- InternalNo
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Weight
- 300 g
- Colour
- Black
- Maximum transfer distance
- 100 m
- Internal
- No
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- GVT-0500
- Part number
- GVT-0500
- EAN / UPC
- 4015867209301
- Also known as
- LevelOne GVT-0500 network media converter 10000 Mbit/s Black
Specifications
43 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
| Fiber ethernet cabling technology | 10GBASE-ER, 10GBASE-LR, 10GBASE-SR, 10GBASE-ZR |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full |
| Cable types supported | Cat6a |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 100 m |
| Mean time between failures (MTBF) | 50000 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Hot-swap | Yes |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SFP |

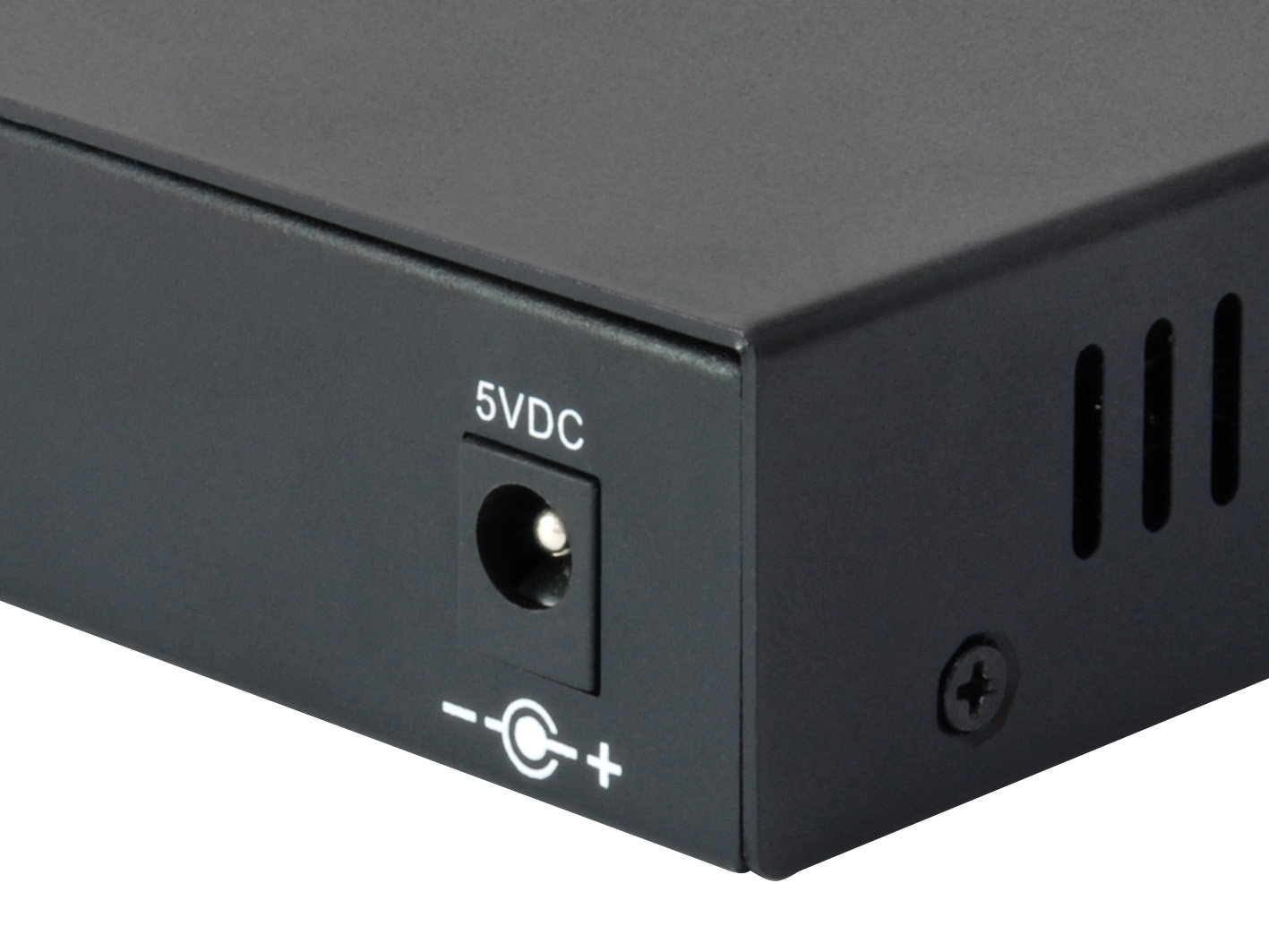

| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Input current | 3 A |
| Power consumption (typical) | 1.2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 85 mm |
| Height | 25 mm |
| Weight | 300 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 150 mm |
| Package height | 85 mm |
| Package weight | 700 g |
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
