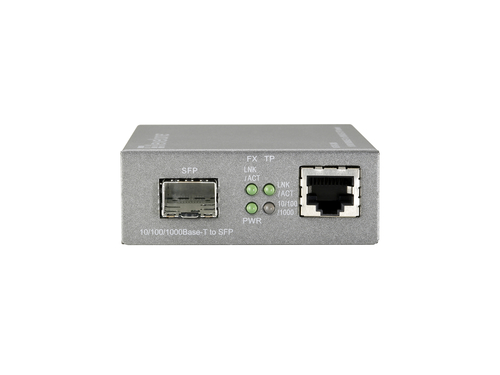

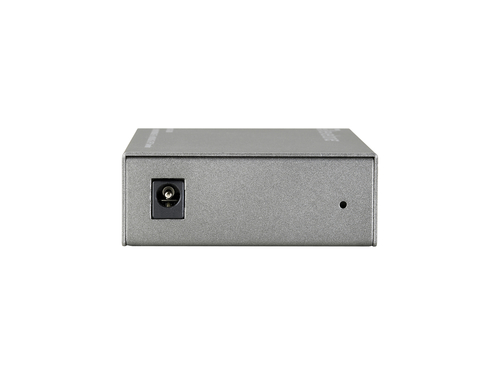

LevelOne RJ45 to SFP Managed Gigabit Media Converter
Model GVS-3800EAN 846359002117
39 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourGrey
- InternalNo
- Input voltage5 V
- Width70.3 mm
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Grey
- Internal
- No
- Input voltage
- 5 V
- Width
- 70.3 mm
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- GVS-3800
- Part number
- GVS-3800
- EAN / UPC
- 846359002117, 4015867160190, 5050914832919
- Also known as
- LevelOne RJ45 to SFP Managed Gigabit Media Converter
Specifications
39 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Converter output interface | 1000Base-X |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| VLAN support | Yes |
| Rate limiting | Yes |
| Link Loss Carry Forward (LLCF) supported | Yes |
| Link Loss Return (LLR) supported | Yes |
| Cable types supported | Cat5 |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Web-based management | Yes |
| LED indicators | Yes |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Input current | 1 A |
| Power consumption (typical) | 1.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70.3 mm |
| Depth | 94 mm |
| Height | 26.2 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 220 mm |
| Package height | 60 mm |
| Package weight | 460 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 Class A, CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
