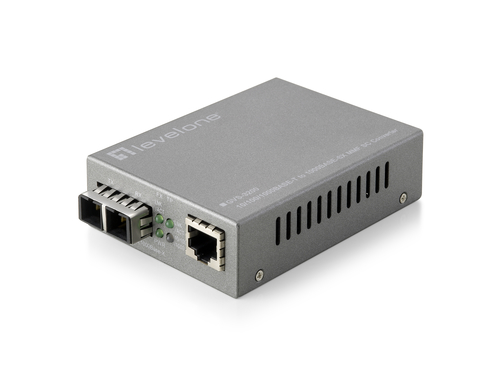

LevelOne 10/100/1000BASE-T to 1000BASE-LX10 SMF SC Converter
Model GVS-3110EAN 4015867160213
37 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance20000 m
- InternalNo
- Input voltage5 V
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 20000 m
- Internal
- No
- Input voltage
- 5 V
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- GVS-3110
- Part number
- GVS-3110
- EAN / UPC
- 4015867160213, 5050914832872
- Also known as
- LevelOne 10/100/1000BASE-T to 1000BASE-LX10 SMF SC Converter
Specifications
37 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 1000Base-T |
| Converter output interface | 1000Base-LX |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Flow control support | Yes |
| Rate limiting | Yes |
| DHCP client | Yes |
| Duplex system | Full |
| Link Loss Carry Forward (LLCF) supported | Yes |
| Link Loss Return (LLR) supported | Yes |
| Cable types supported | Cat5 |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Fiber cable diameters supported (core/cladding) | 3/125,8.7/125,9/125,10/125,50/125,62.5/125,100/140 µm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Web-based management | Yes |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Input current | 1 A |
| Power consumption (typical) | 1.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70.3 mm |
| Depth | 94 mm |
| Height | 26.2 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 Class A, CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
