Smart Gigabit RJ45-SFP Media Converter, Compatible with 19-inch rack-mountable chassis
Model GVM-2000EAN 4015867243169
52 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight177 g
- ColourBlack
- Mean time between failures (MTBF)400000 h
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 177 g
- Colour
- Black
- Mean time between failures (MTBF)
- 400000 h
- Internal
- No
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- GVM-2000
- Part number
- GVM-2000
- EAN / UPC
- 4015867243169
- Also known as
- LevelOne Smart Gigabit RJ45-SFP Media Converter, Compatible with 19-inch rack-mountable chassis
Specifications
52 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-T, 1000Base-T |
| Converter output interface | 100Base-X, 1000Base-X |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Flow control support | Yes |
| VLAN support | Yes |
| Auto-negotiation | Yes |
| Quality of Service (QoS) support | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 400000 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Web-based management | Yes |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Output current | 2 A |
| Power consumption (typical) | 19 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 71 mm |
| Height | 26 mm |
| Weight | 177 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |

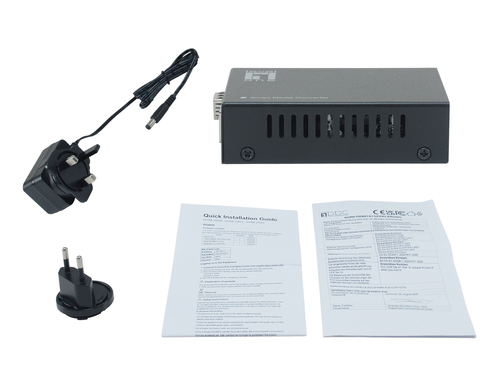

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 118 mm |
| Package depth | 78 mm |
| Package height | 86 mm |
| Package weight | 350 g |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Customs product code (TARIC) | 8517620000 |
| Pallet gross height | 154.5 cm |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 250 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 13.2 kg |
| Products per master (outer) case | 36 pc(s) |
