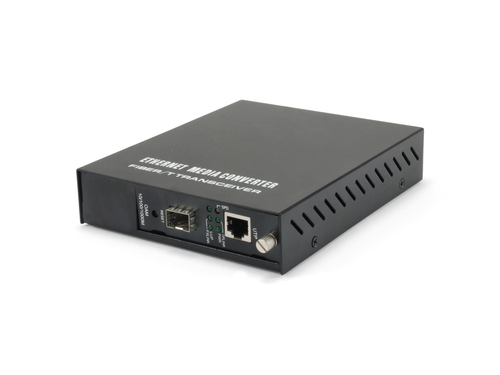

RJ45 to SFP Managed Gigabit Media Converter
Model GVM-1000EAN 4015867195628
46 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight700 g
- ColourBlack
- Mean time between failures (MTBF)30000 h
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 700 g
- Colour
- Black
- Mean time between failures (MTBF)
- 30000 h
- Internal
- No
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- GVM-1000
- Part number
- GVM-1000
- EAN / UPC
- 4015867195628
- Also known as
- LevelOne RJ45 to SFP Managed Gigabit Media Converter
Specifications
46 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Flow control support | Yes |
| VLAN support | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
| Link Loss Carry Forward (LLCF) supported | Yes |
| Link Loss Return (LLR) supported | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 30000 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Web-based management | Yes |
| Hot-swap | Yes |
| LED indicators | Activity, FDX, Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Output voltage | 5 V |
| Output current | 2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 127 mm |
| Depth | 156 mm |
| Height | 32 mm |
| Weight | 700 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 185 mm |
| Package depth | 275 mm |
| Package height | 62 mm |
| Package weight | 860 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 480 mm |
| Master (outer) case height | 390 mm |
| Master (outer) case gross weight | 17.5 kg |
| Products per master (outer) case | 17 pc(s) |
