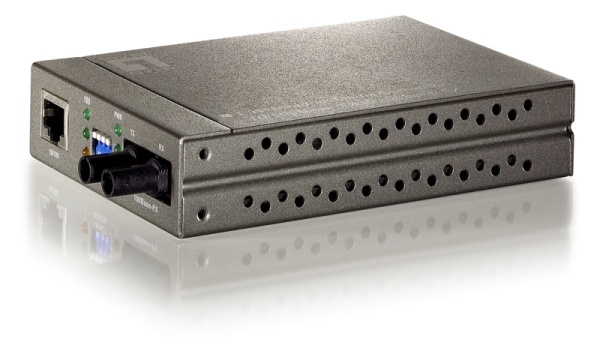

FVT-4301 network media converter 1310 nm
Model FVT-4301EAN 5050914833008
19 specifications
- ConnectivityWired
- Cabling technology10BASE-T, 100BASE-TX/100BASE-FX
- Maximum transfer distance30000 m
- Hot-swapYes
- Operating temperature (T-T)0 - 45 °C
Overview
- Connectivity
- Wired
- Cabling technology
- 10BASE-T, 100BASE-TX/100BASE-FX
- Maximum transfer distance
- 30000 m
- Hot-swap
- Yes
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- FVT-4301
- Part number
- FVT-4301
- EAN / UPC
- 5050914833008, 878742002091, 4015867133811, 5711045885860 +1 more
- Also known as
- LevelOne FVT-4301 network media converter 1310 nm
Specifications
19 specifications in 7 groups
Network
| Specification | Value |
|---|---|
| Cabling technology | 10BASE-T, 100BASE-TX/100BASE-FX |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 30000 m |
| Wavelength | 1310 nm |
Features
| Specification | Value |
|---|---|
| Hot-swap | Yes |
| LED indicators | Power |
| Compliance industry standards | IEEE802.3, IEEE802.3u, IEEE802.3x |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Safety | UL, cUL |
| Certification | EMI FCC Class A, CE |
Other features
| Specification | Value |
|---|---|
| Cable type | RJ 45 |
| Connector(s) | RJ-45 (CAT-3/5) |
| Dimensions (WxDxH) | 119 x 85 x 26 mm |
| Full duplex | Yes |
| Packet transfer speed | 64 - 1518 Bytes |
| Power requirements | DC9V / 0.7A |
| Fiber type | 62.5/125, 50/125, 8/125, 10/125 µm |
