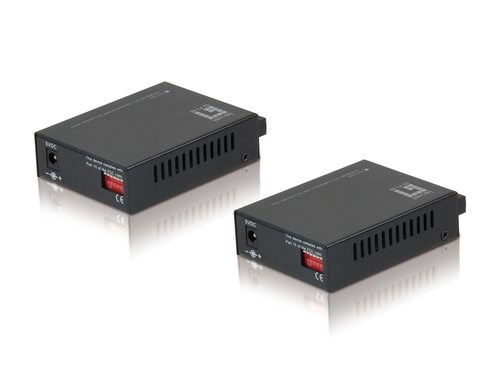

RJ45 to SC BIDI Fast Ethernet Media Converter Set, Single-Mode Fiber, 20km
Model FVT-2202EAN 4015867200353
48 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight420 g
- ColourBlack
- Maximum transfer distance20000 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 420 g
- Colour
- Black
- Maximum transfer distance
- 20000 m
- Internal
- No
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- FVT-2202
- Part number
- FVT-2202
- EAN / UPC
- 4015867200353, 4015867225493
- Also known as
- LevelOne RJ45 to SC BIDI Fast Ethernet Media Converter Set, Single-Mode Fiber, 20km
Specifications
48 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Fiber ethernet cabling technology | 100BASE-FX |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
| Link Loss Carry Forward (LLCF) supported | Yes |
| Link Loss Return (LLR) supported | Yes |
| Cable types supported | Cat5 |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Wavelength-division multiplexing (WDM) | Yes |
| Fiber cable diameters supported (core/cladding) | 8.3/125,9/125,10/125 µm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SX |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Input current | 1 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 70 mm |
| Height | 25 mm |
| Weight | 420 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 235 mm |
| Package depth | 125 mm |
| Package height | 55 mm |
| Package weight | 914 g |
| Package type | Blister |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 480 mm |
| Master (outer) case length | 360 mm |
| Master (outer) case height | 390 mm |
| Master (outer) case gross weight | 16.2 kg |
| Products per master (outer) case | 36 pc(s) |
