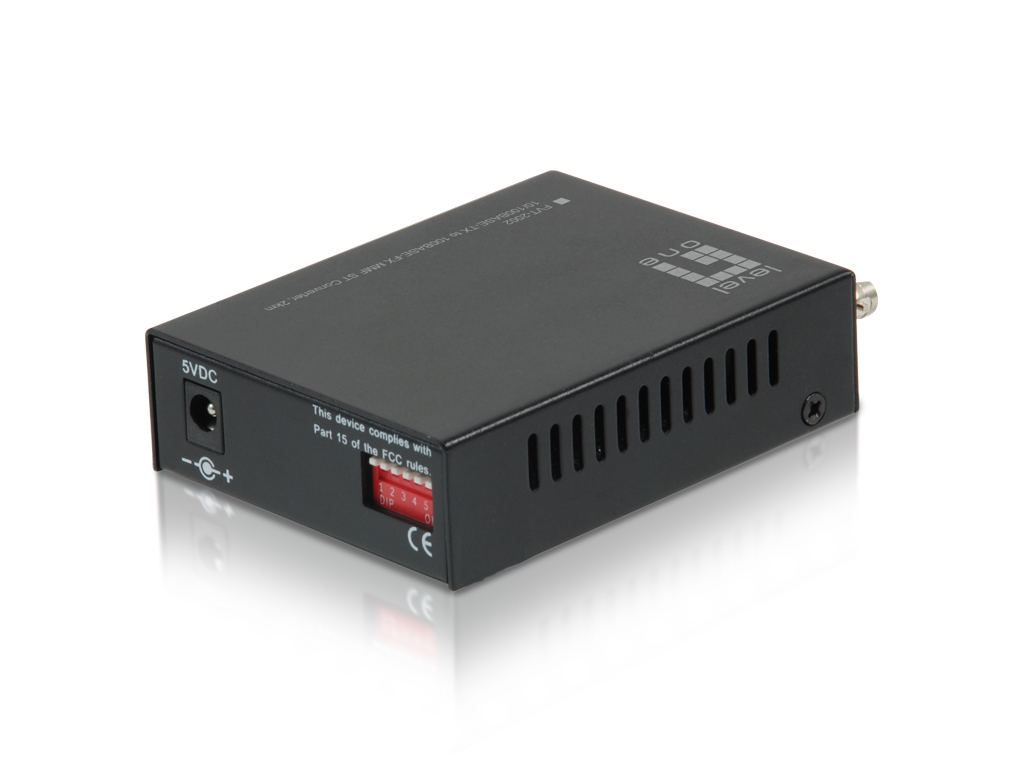

RJ45 to ST Fast Ethernet Media Converter, Multi-Mode Fiber, 2km
Model FVT-2002EAN 8463590313844
44 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight420 g
- ColourBlack
- Maximum transfer distance2000 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 420 g
- Colour
- Black
- Maximum transfer distance
- 2000 m
- Internal
- No
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- FVT-2002
- Part number
- FVT-2002
- EAN / UPC
- 8463590313844, 846359031384, 4015867185148, 4015867225479 +2 more
- Also known as
- LevelOne RJ45 to ST Fast Ethernet Media Converter, Multi-Mode Fiber, 2km
Specifications
44 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
| Link Loss Carry Forward (LLCF) supported | Yes |
| Link Loss Return (LLR) supported | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Activity, Link |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Input current | 1 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 70 mm |
| Height | 25 mm |
| Weight | 420 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 235 mm |
| Package depth | 125 mm |
| Package height | 55 mm |
| Package weight | 494 g |
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
