LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter
Model FVS-3800EAN 4015867160169
32 specifications
- Speed100 Mbit/s
- ConnectivityWired
- ColourGrey
- InternalNo
- Input voltage5 V
- Width70.3 mm
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Colour
- Grey
- Internal
- No
- Input voltage
- 5 V
- Width
- 70.3 mm
- Brand
- LevelOne
- Category
- Network Media Converter
- Model
- FVS-3800
- Part number
- FVS-3800
- EAN / UPC
- 4015867160169, 5050914833060
- Also known as
- LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter
Specifications
32 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Jumbo frames support | Yes |
| Flow control support | Yes |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Input current | 1 A |
| Power consumption (typical) | 1.5 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70.3 mm |
| Depth | 26.2 mm |
| Height | 94 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 220 mm |
| Package height | 60 mm |
| Package weight | 470 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 Class A, CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
Reviews
No reviews of LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter yet. Have you used it? Tell others what you think.
Write a reviewCompare LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter
All network media converter comparisons- LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter vsLevelOne RJ45 to SC Managed Fast Ethernet Media Converter, Single-Mode Fiber, 20kmCompare specs
- LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter vsLevelOne 10/100/1000BASE-T to 1000BASE-LX10 SMF SC ConverterCompare specs

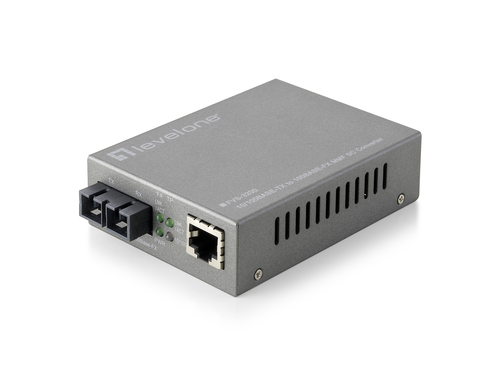

- LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter vsLevelOne 10/100BASE-TX to 100BASE-FX MMF SC Smart Converter, 2kmCompare specs

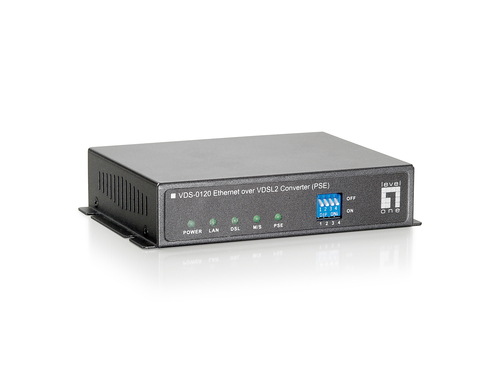

- LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter vsLevelOne Ethernet over VDSL2 Converter, 1 PoE OutputCompare specs

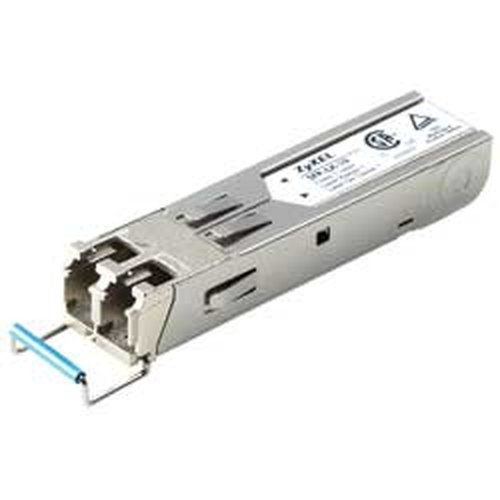

- LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter vsZyxel SFP-LX-10 network media converterCompare specs
- LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter vsIntellinet 515337 network media converter 100 Mbit/s 1300 nmCompare specs

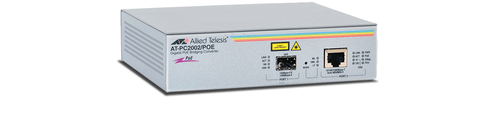

- LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter vsAllied Telesis PC2002POE network media converter 1000 Mbit/s 1310 nm Multi-mode GreyCompare specs

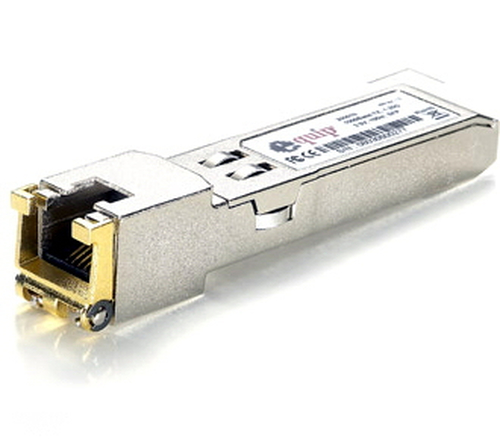

- LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter vsEquip SFP network media converter 1250 Mbit/sCompare specs
