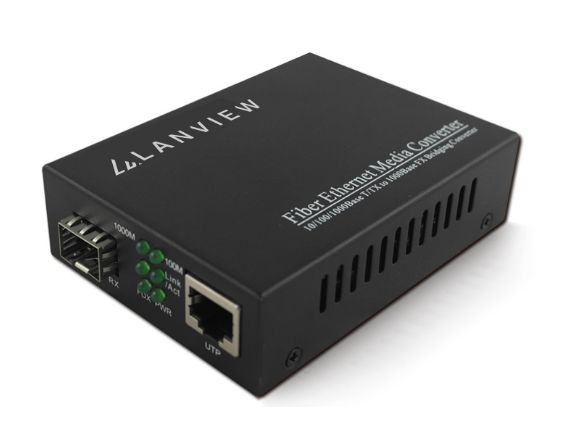

LVN-MED-SFP-1000BASE-X network media converter Multi-mode Black
Model LVN-MED-SFP-1000BASE-XEAN 5715063521045
38 specifications
- ConnectivityWired
- Weight340 g
- ColourBlack
- Networking standardsIEEE 802.3u
- Fiber mode structureMulti-mode
- Plug and PlayYes
Overview
- Connectivity
- Wired
- Weight
- 340 g
- Colour
- Black
- Networking standards
- IEEE 802.3u
- Fiber mode structure
- Multi-mode
- Plug and Play
- Yes
- Brand
- Lanview
- Category
- Network Media Converter
- Model
- LVN-MED-SFP-1000BASE-X
- Part number
- LVN-MED-SFP-1000BASE-X
- EAN / UPC
- 5715063521045
- Also known as
- Lanview LVN-MED-SFP-1000BASE-X network media converter Multi-mode Black
Specifications
38 specifications in 12 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u |
| Ethernet LAN data rates | 100 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-T |
| Fiber ethernet cabling technology | 1000BASE-SX |
| Flow control support | Yes |
| Duplex system | Full |
| Cabling technology | 10/100/1000 |
Performance
| Specification | Value |
|---|---|
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Housing material | Metal |
| International Protection (IP) code | IP20 |
| LED indicators | Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Fiber optic connector | SFP |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Input current | 1 A |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 100 mm |
| Height | 50 mm |
| Weight | 340 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 150 mm |
| Package depth | 100 mm |
| Package height | 50 mm |
| Package weight | 700 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC, Rohs |
Other features
| Specification | Value |
|---|---|
| Connector(s) | RJ45 |
| Power requirements | 5V 1A |
| Transmission distance (max) | 80 km |
