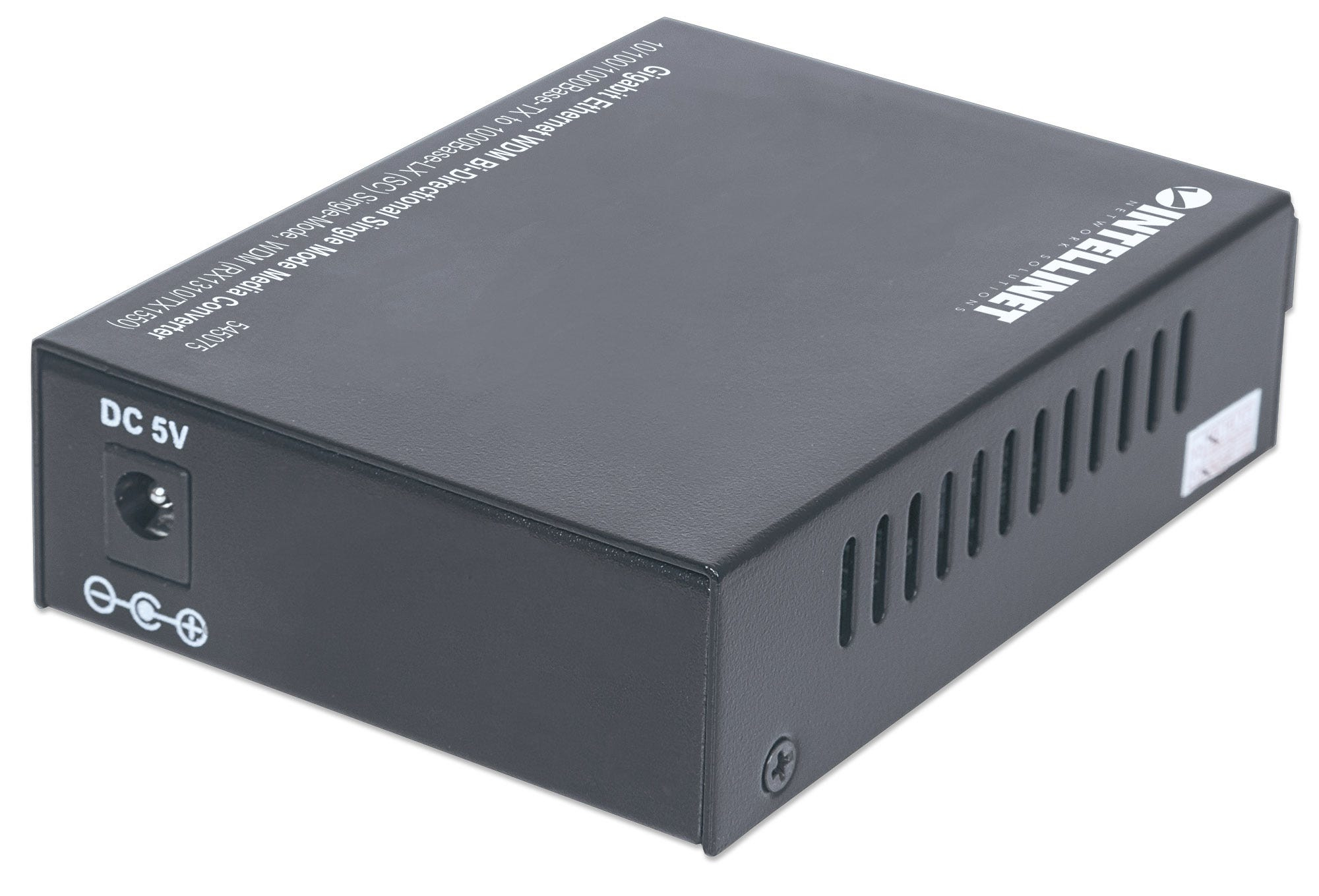

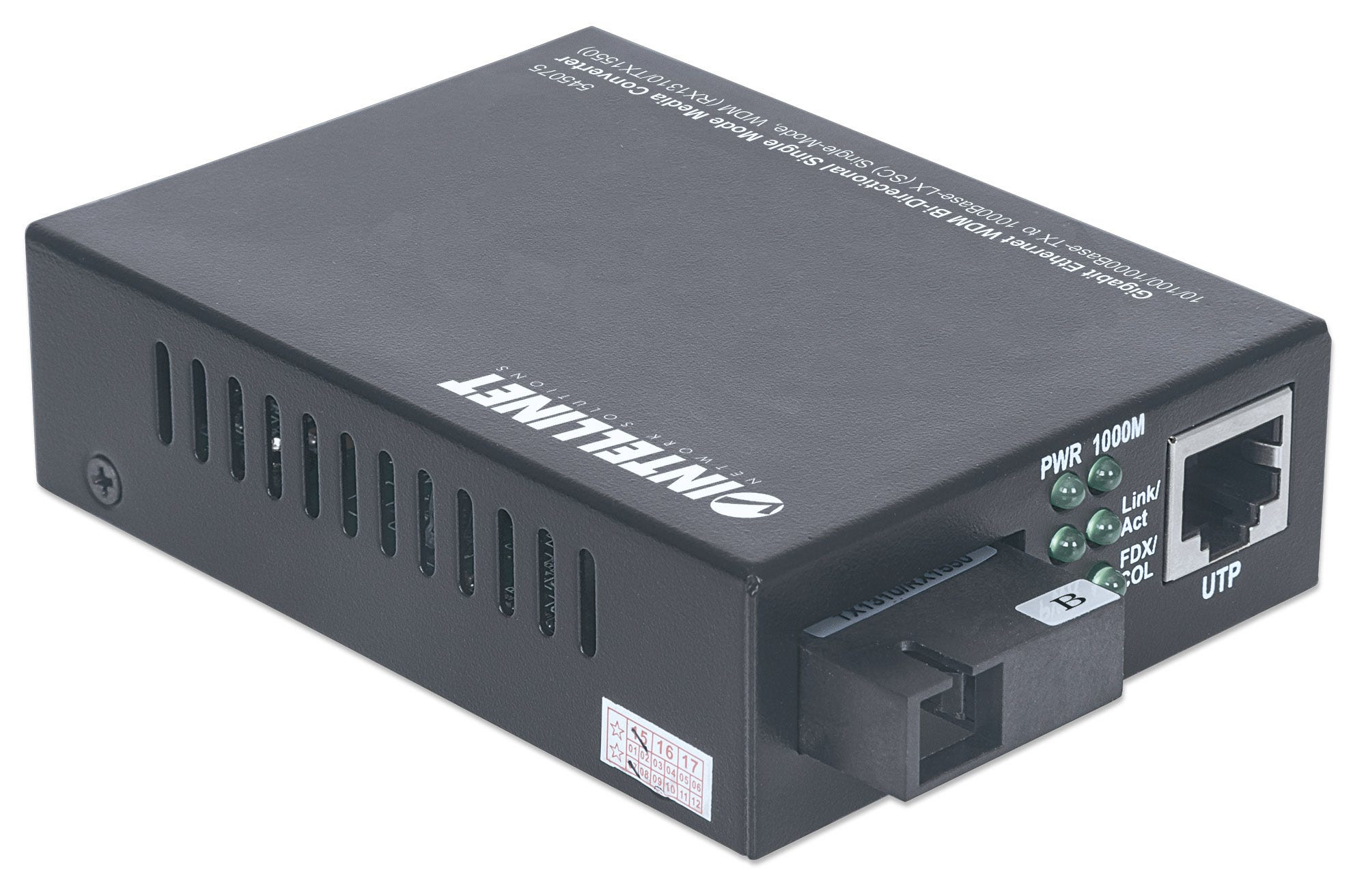

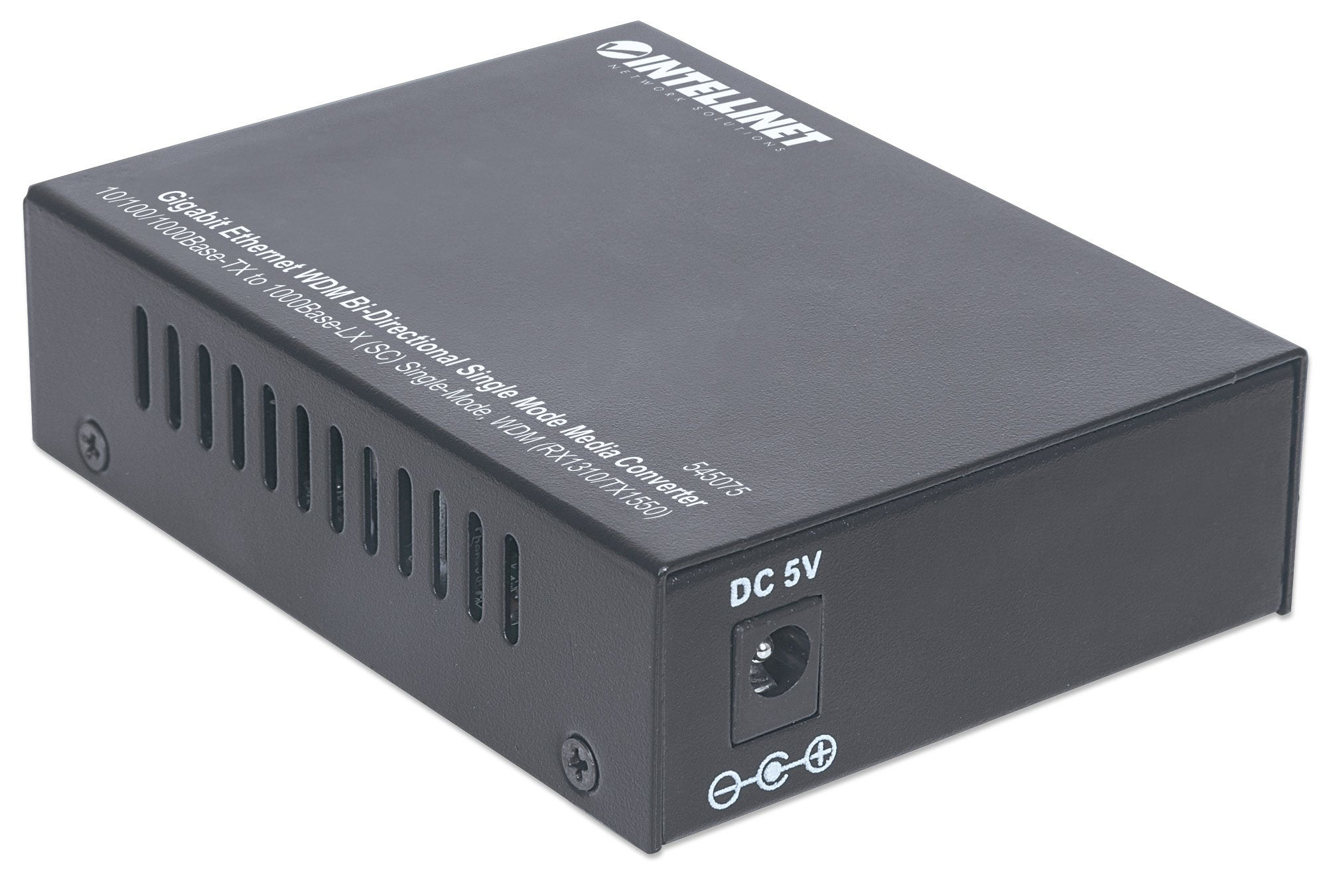

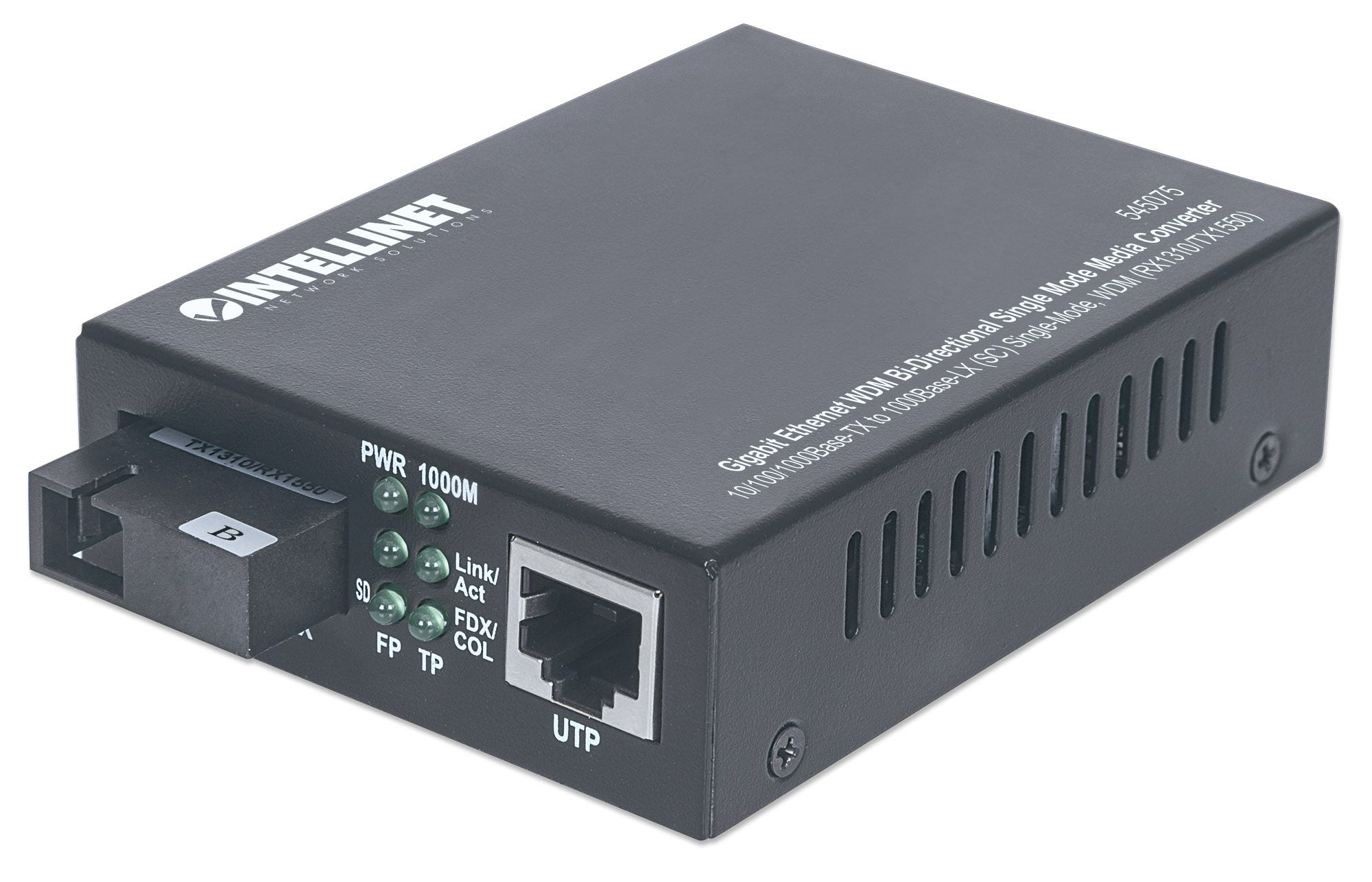

Intellinet Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100/1000Base-Tx to 1000Base-Lx (SC) Single-Mode, 20km, WDM (Rx1310/Tx1550)
Model 545075EAN 766623545075
42 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight170 g
- ColourBlack
- Maximum transfer distance20000 m
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 170 g
- Colour
- Black
- Maximum transfer distance
- 20000 m
- Internal
- No
- Brand
- Intellinet
- Category
- Network Media Converter
- Model
- 545075
- Part number
- 545075
- EAN / UPC
- 766623545075
- Also known as
- Intellinet Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100/1000Base-Tx to 1000Base-Lx (SC) Single-Mode, 20km, WDM (Rx1310/Tx1550)
Specifications
42 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-TX |
| Converter output interface | 1000Base-LX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fiber ethernet cabling technology | 1000BASE‑LX |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full |
| Cable types supported | Cat5, Fiber |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Wavelength | 1550 nm |
| Wavelength-division multiplexing (WDM) | Yes |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 8.3/125,8.7/125,8/125,10/125 µm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Sensitivity | -22 dBmW |
| Mean time between failures (MTBF) | 100000 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Metal |
| LED indicators | Status |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |

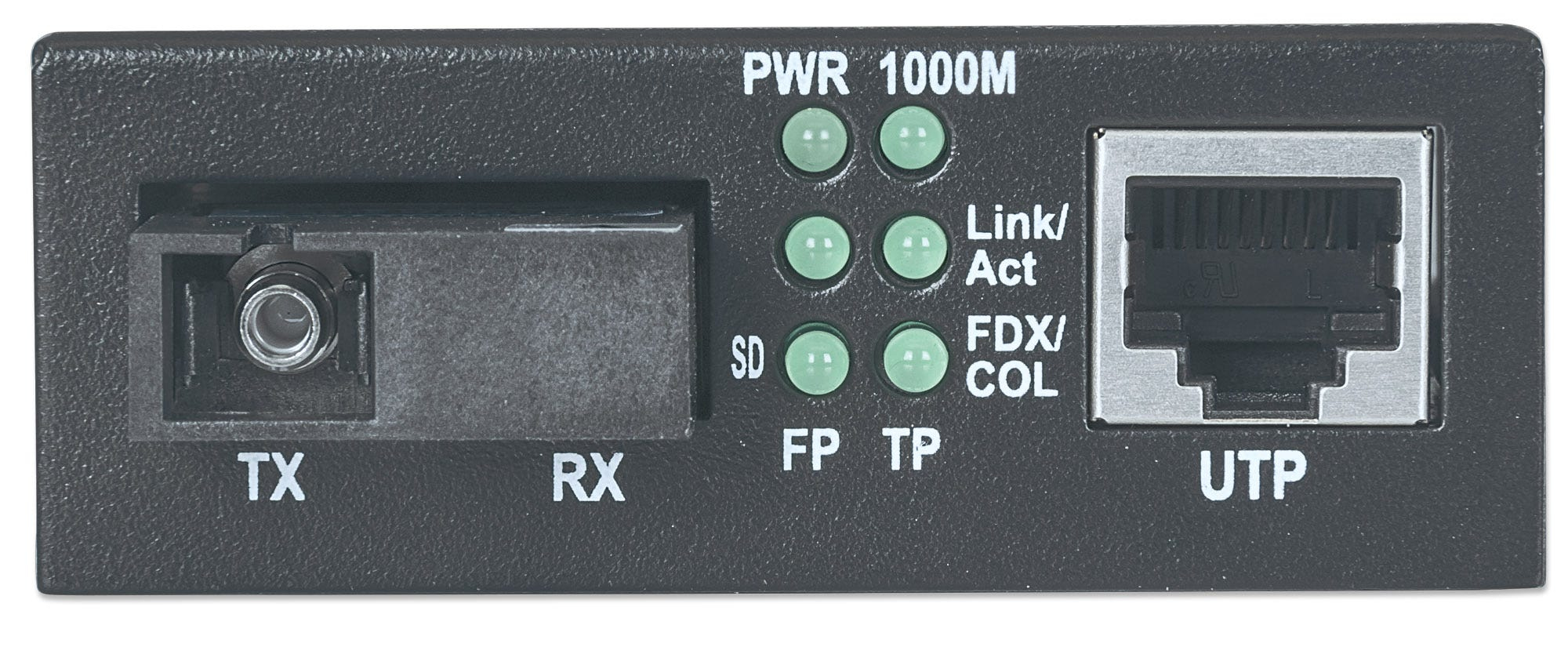

| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 1.2 A |
| Power consumption (max) | 5 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69 mm |
| Depth | 105 mm |
| Height | 25 mm |
| Weight | 170 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
