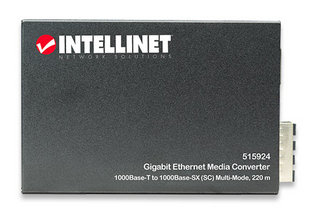

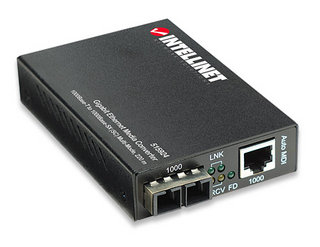

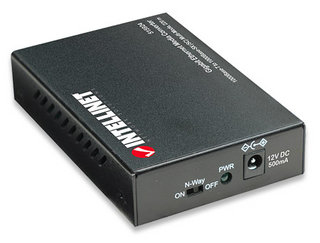

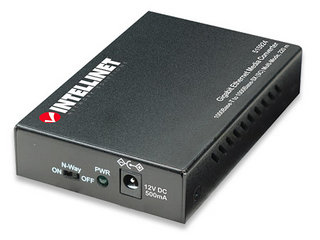

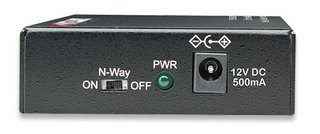

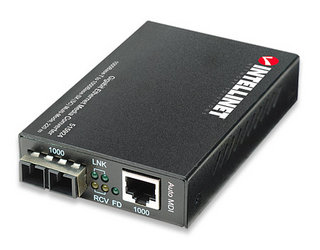

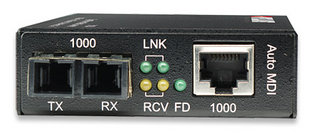

Intellinet 515924 network media converter 850 nm
Model 515924EAN 766623515924
17 specifications
- Weight240 g
- Networking standardsIEEE 802.3ab, IEEE 802.3z
- Maximum transfer distance550 m
- InternalNo
- Input voltage5 V
- Operating temperature (T-T)0 - 60 °C
Overview
- Weight
- 240 g
- Networking standards
- IEEE 802.3ab, IEEE 802.3z
- Maximum transfer distance
- 550 m
- Internal
- No
- Input voltage
- 5 V
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- Intellinet
- Category
- Network Media Converter
- Model
- 515924
- Part number
- 515924
- EAN / UPC
- 766623515924
- Also known as
- Intellinet 515924 network media converter 850 nm
Specifications
17 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3z |
| Cabling technology | 1000Base-T, 1000Base-SX |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Input current | 1.4 A |
| Power consumption (typical) | 5.2 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 240 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 74 x 102 x 22 mm |
