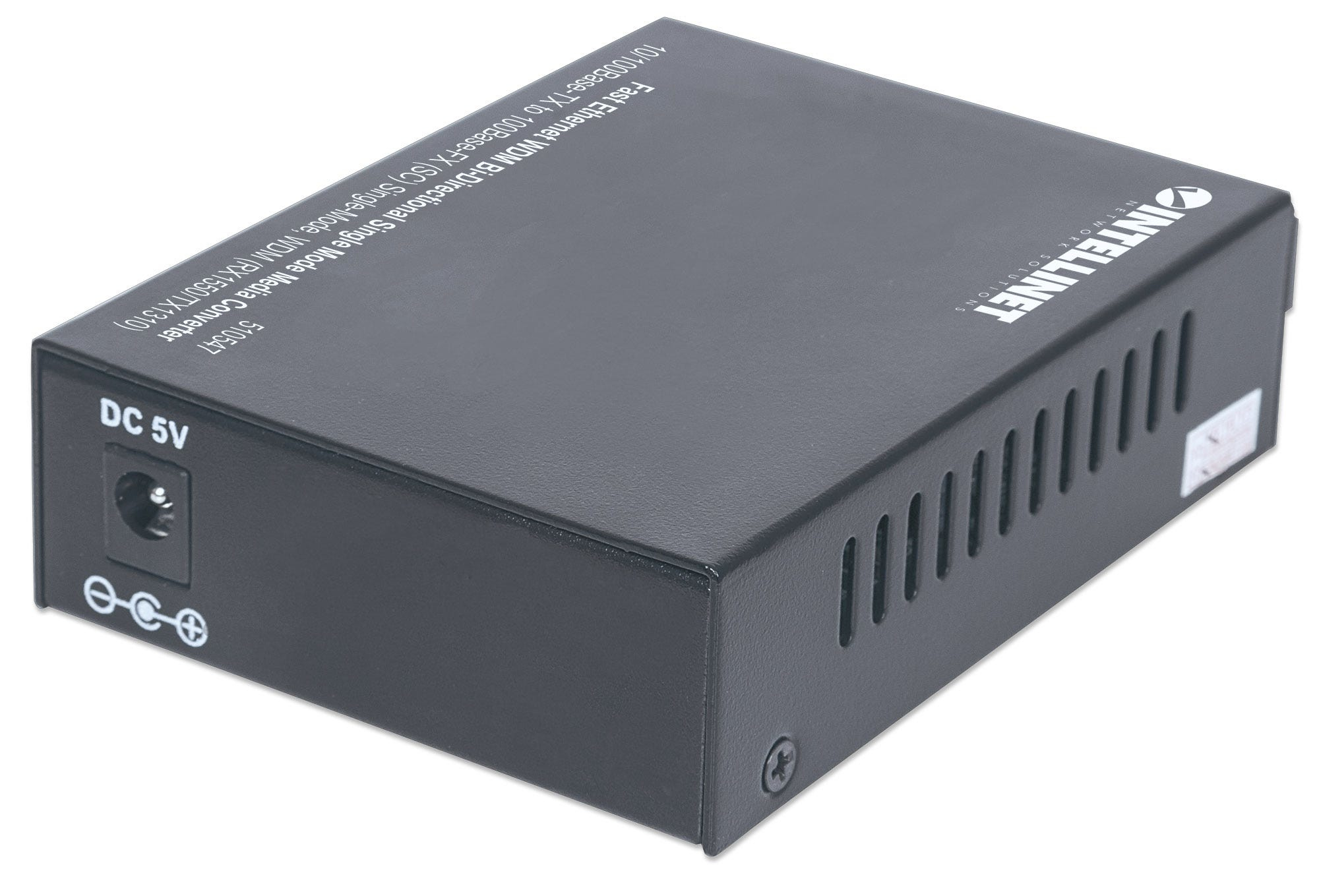

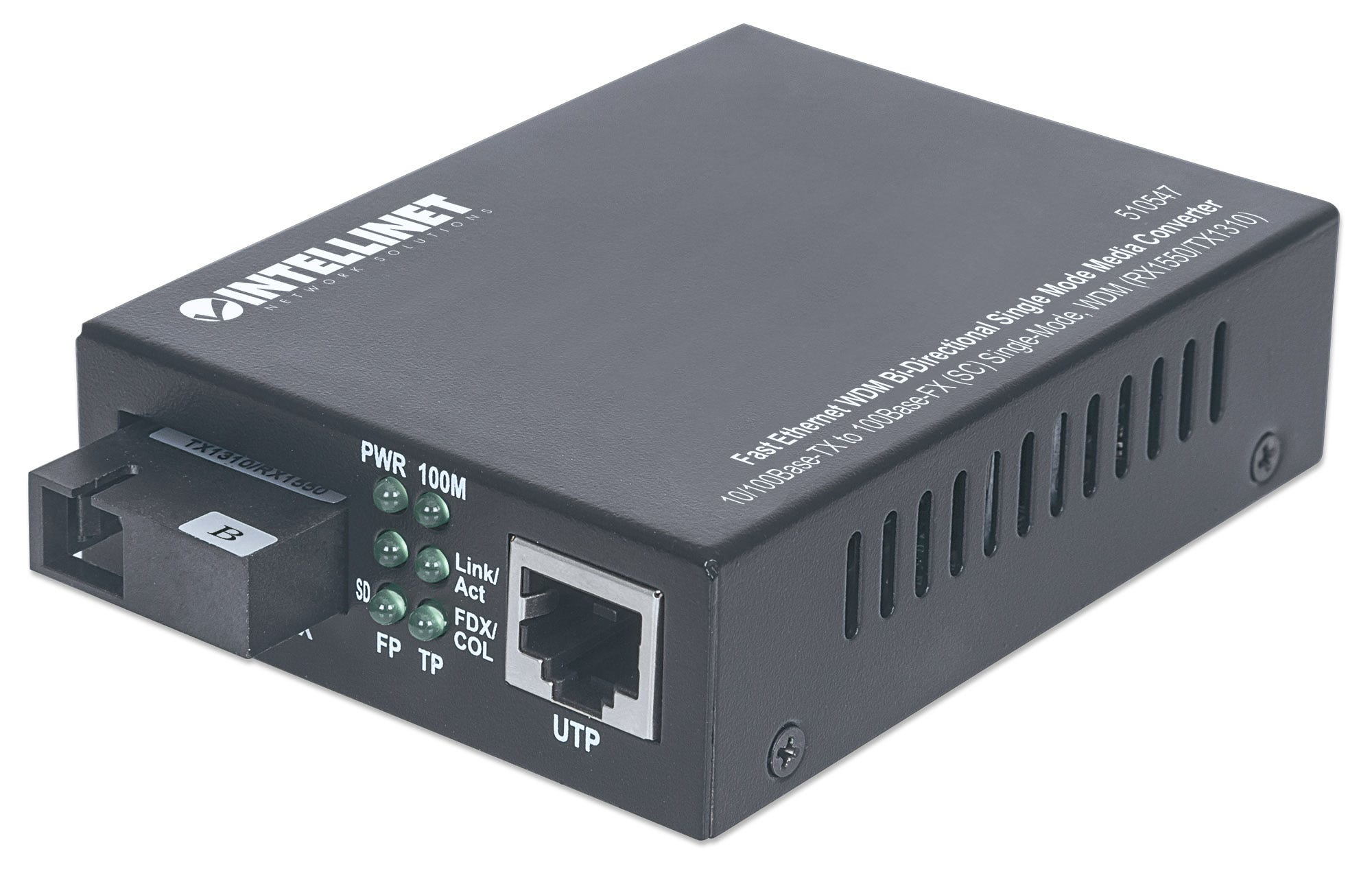

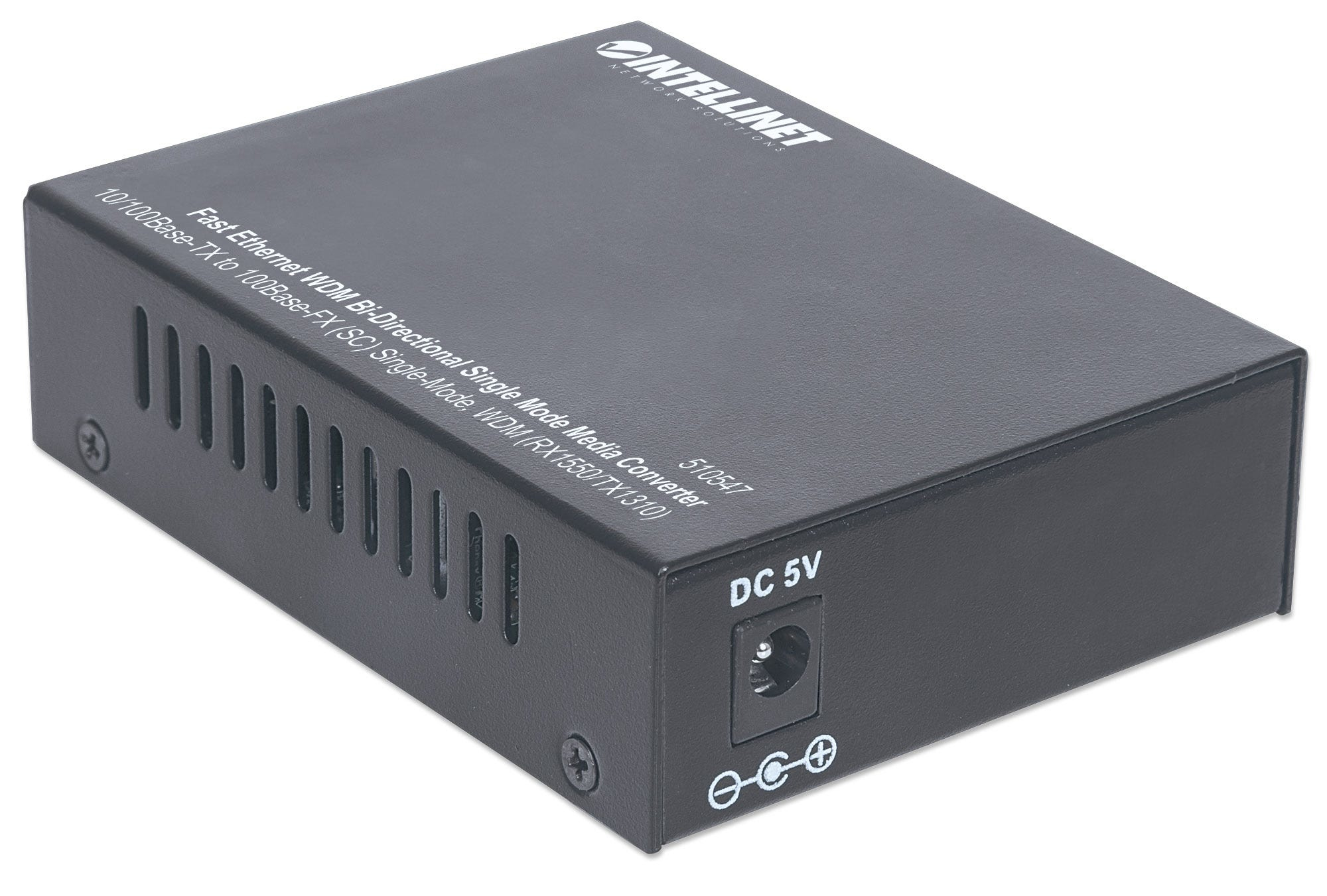

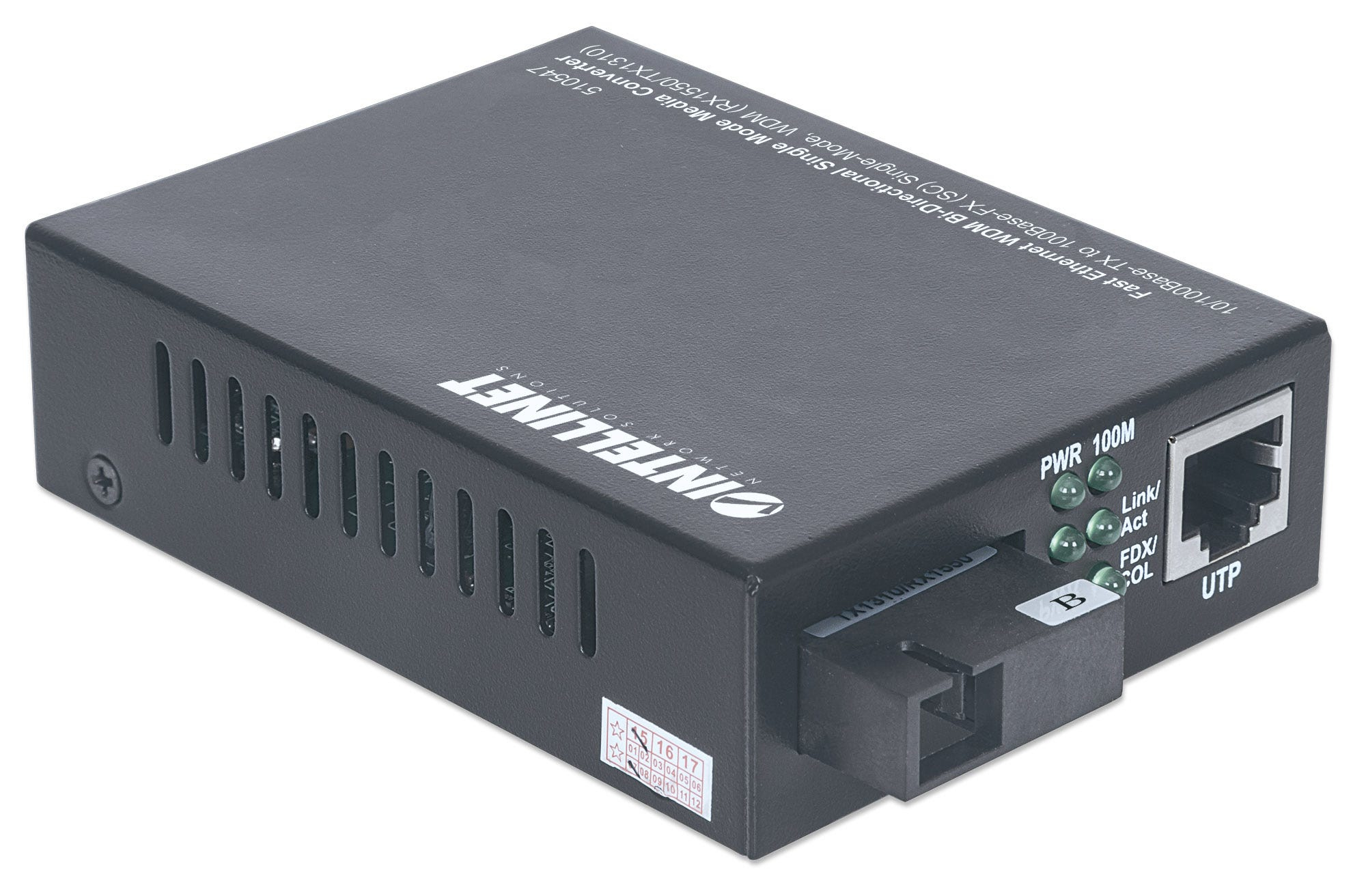

Intellinet Fast Ethernet WDM… 510547 Specs

Overview

Speed: 100 Mbit/s
Connectivity: Wired
Weight: 180 g
Colour: Black
Maximum transfer distance: 20000 m
Internal: No

Brand: Intellinet
Category: Network Media Converter
Model: 510547
Part number: 510547
EAN / UPC: 766623510547
Also known as: Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Single-Mode, 20 km (12.4 mi.), WDM (Rx1550/Tx1310)

Specifications

43 specifications in 10 groups

Network

Specification	Value
Maximum data transfer rate	100 Mbit/s
Converter input interface	10Base-T, 100Base-TX
Converter output interface	100Base-FX
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Fiber ethernet cabling technology	100BASE-FX
Auto MDI/MDI-X	Yes
Duplex system	Full
Cable types supported	Cat5e

Performance

Specification	Value
Maximum transfer distance	20000 m
Wavelength-division multiplexing (WDM)	Yes
Fiber mode structure	Single-mode
Fiber cable diameters supported (core/cladding)	9/125 µm
Tx power (min)	-15 dBmW
Tx power (max)	-3 dBmW
Sensitivity	-32 dBmW
Mean time between failures (MTBF)	100000 h

Features

Specification	Value
Internal	No
Housing material	Metal

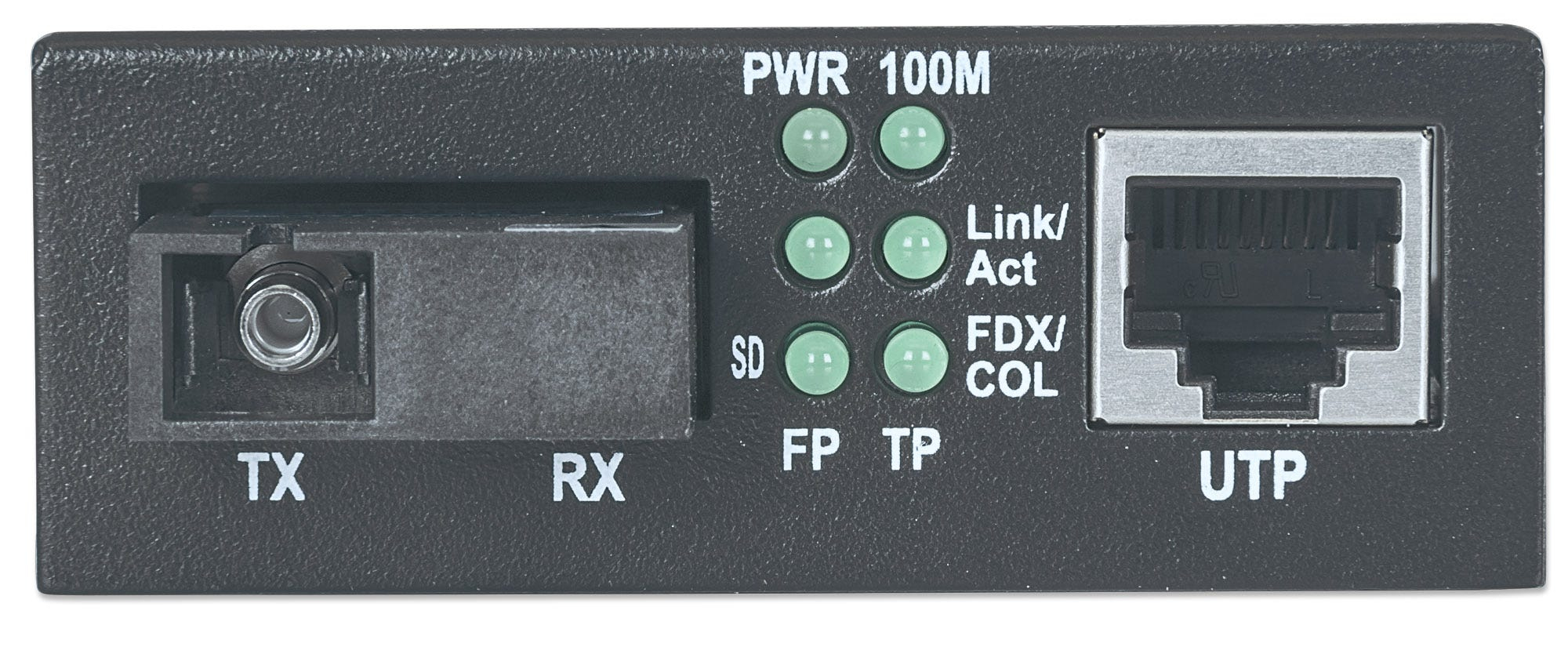

LED indicators	Yes
Product colour	Black

Ports & interfaces

Specification	Value
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC

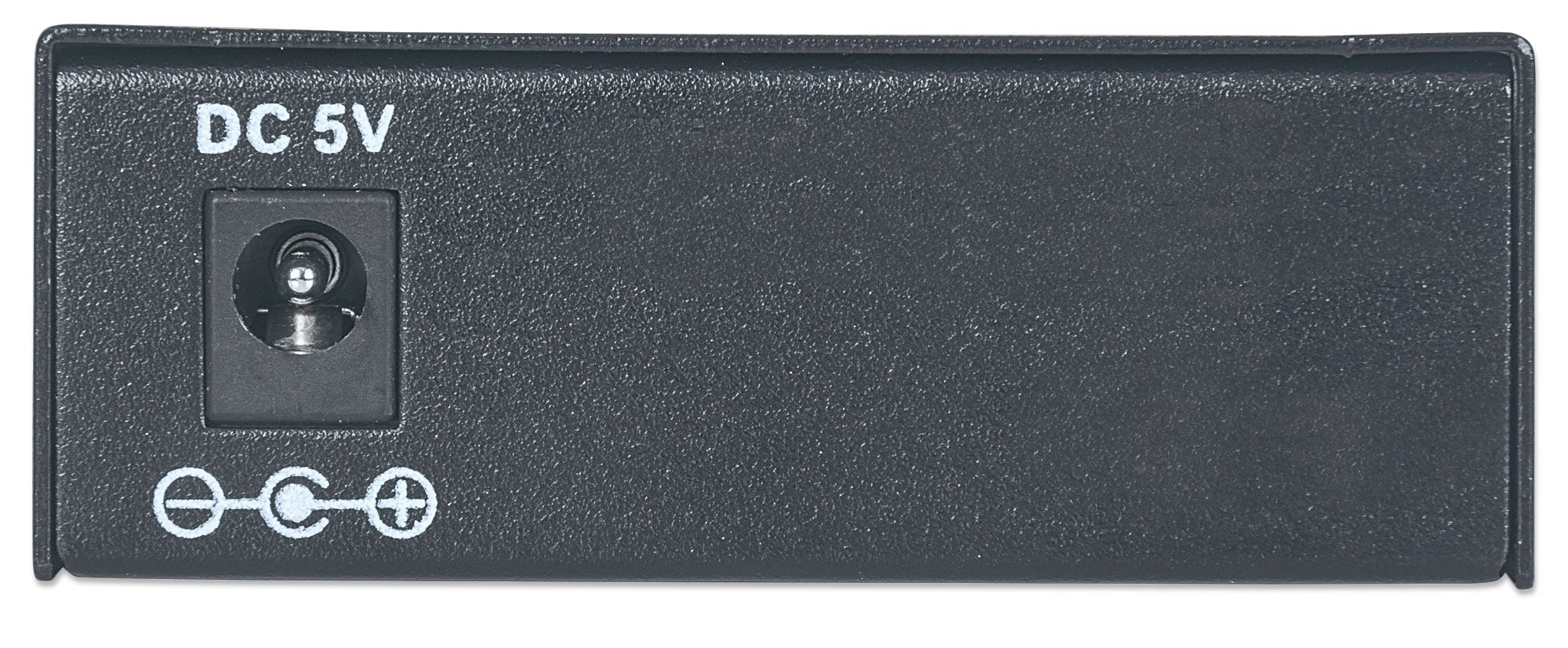

DC-in jack	Yes

Power

Specification	Value
Output voltage	5 V
Output current	1.2 A
Power consumption (max)	5 W
External power adapter	Yes

Weight & dimensions

Specification	Value
Width	69 mm
Depth	105 mm
Height	25 mm
Weight	180 g

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 80%

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes

Certificates

Specification	Value
Certification	FCC Class A, CE

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
