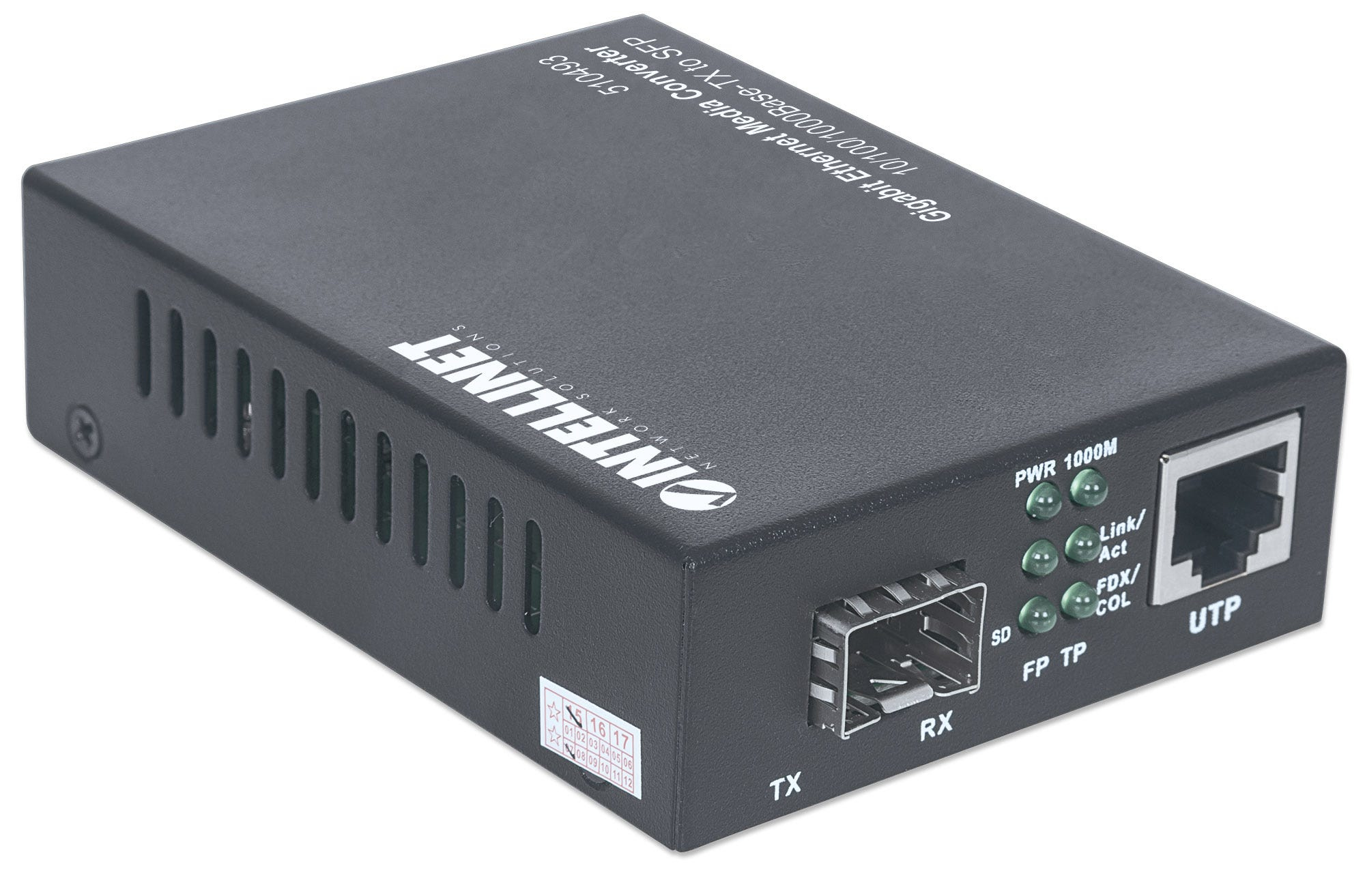

Gigabit Ethernet to SFP Media Converter, 10/100/1000Base-Tx to SFP slot, empty
Model 510493EAN 766623510493
32 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight170 g
- ColourBlack
- Maximum transfer distance100 m
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 170 g
- Colour
- Black
- Maximum transfer distance
- 100 m
- Internal
- No
- Brand
- Intellinet
- Category
- Network Media Converter
- Model
- 510493
- Part number
- 510493
- EAN / UPC
- 766623510493
- Also known as
- Intellinet Gigabit Ethernet to SFP Media Converter, 10/100/1000Base-Tx to SFP slot, empty
Specifications
32 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-TX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full |
| Cable types supported | Cat5e, Fiber |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 100 m |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Metal |
| LED indicators | Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 1.2 A |
| Power consumption (max) | 5 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 96 mm |
| Height | 26 mm |
| Weight | 170 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
