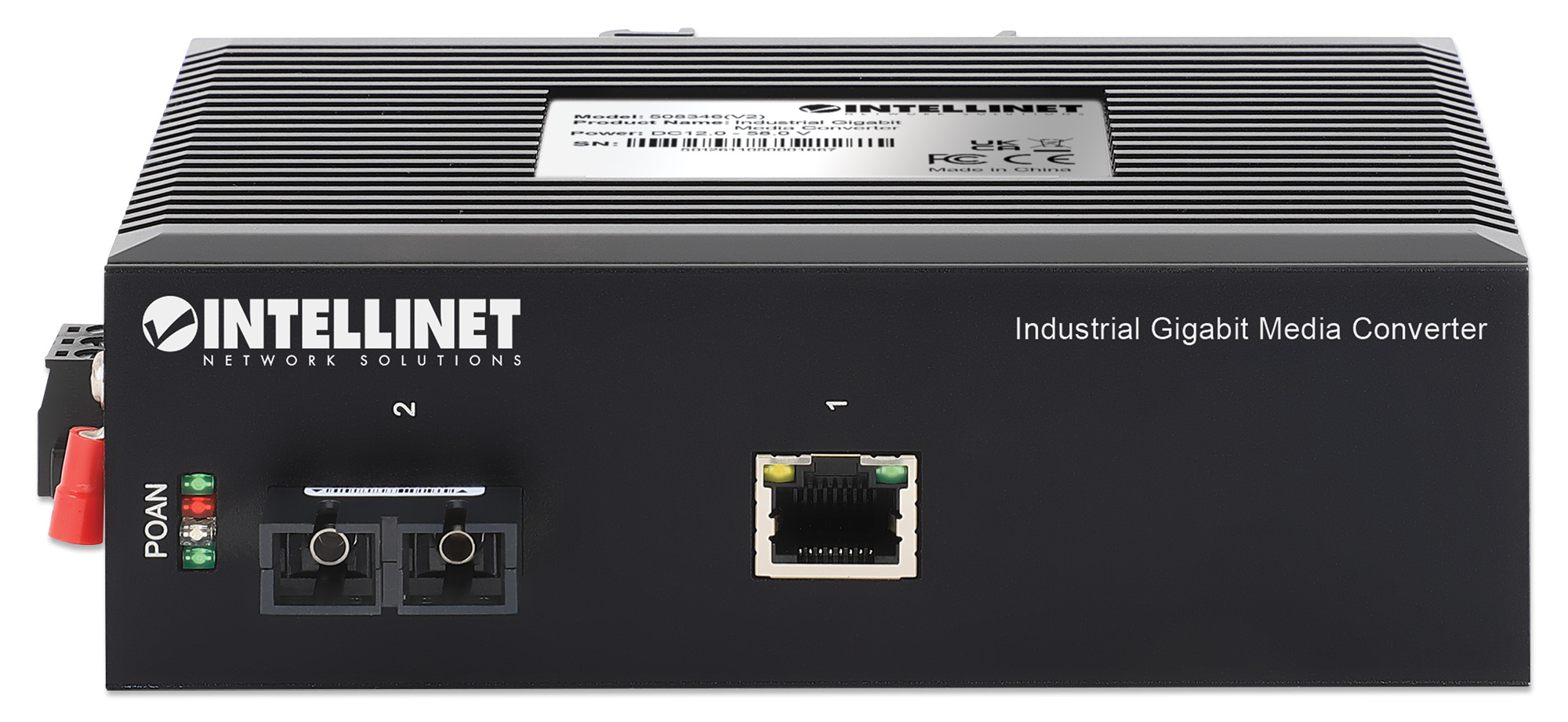

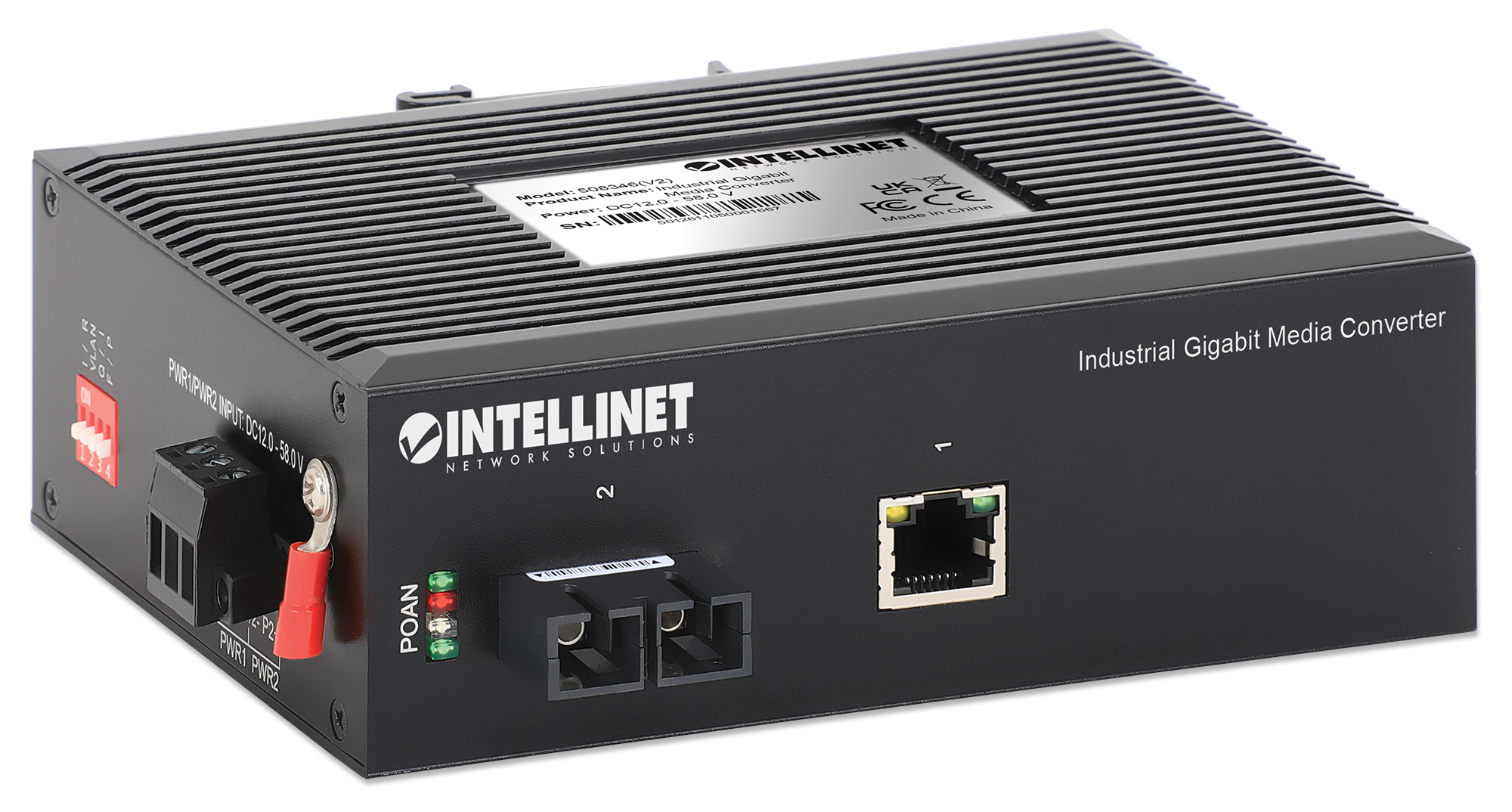

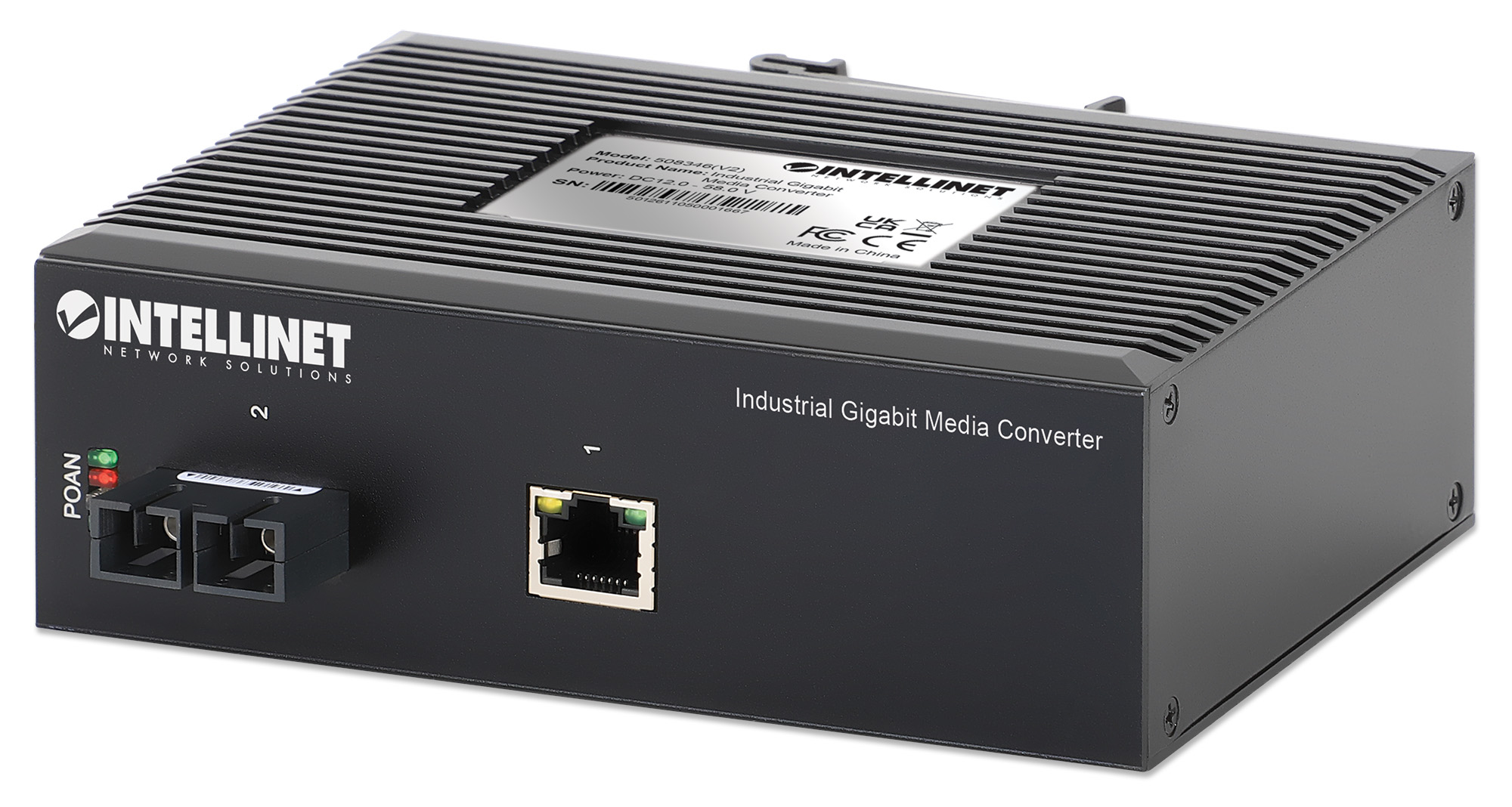

Industrial Gigabit Media Converter 10/100/1000Base-TX to 1000Base-LX (SC) Single-mode, 20 km (12.4 mi.), IP40-rated Metal Housing, DIN-Rail Mount
Model 508346EAN 766623508346
48 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight600 g
- ColourBlack
- Maximum transfer distance20000 m
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 600 g
- Colour
- Black
- Maximum transfer distance
- 20000 m
- Internal
- No
- Brand
- Intellinet
- Category
- Network Media Converter
- Model
- 508346
- Part number
- 508346
- EAN / UPC
- 766623508346
- Also known as
- Intellinet Industrial Gigabit Media Converter 10/100/1000Base-TX to 1000Base-LX (SC) Single-mode, 20 km (12.4 mi.), IP40-rated Metal Housing, DIN-Rail Mount
Specifications
48 specifications in 13 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-TX |
| Converter output interface | 1000Base-LX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat5e |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 8/125,8.3/125,8.7/125,10/125 µm |
| Tx power (min) | -9 dBmW |
| Tx power (max) | -3 dBmW |
| Buffer size | 1000 KB |
Features
| Specification | Value |
|---|---|
| Internal | No |

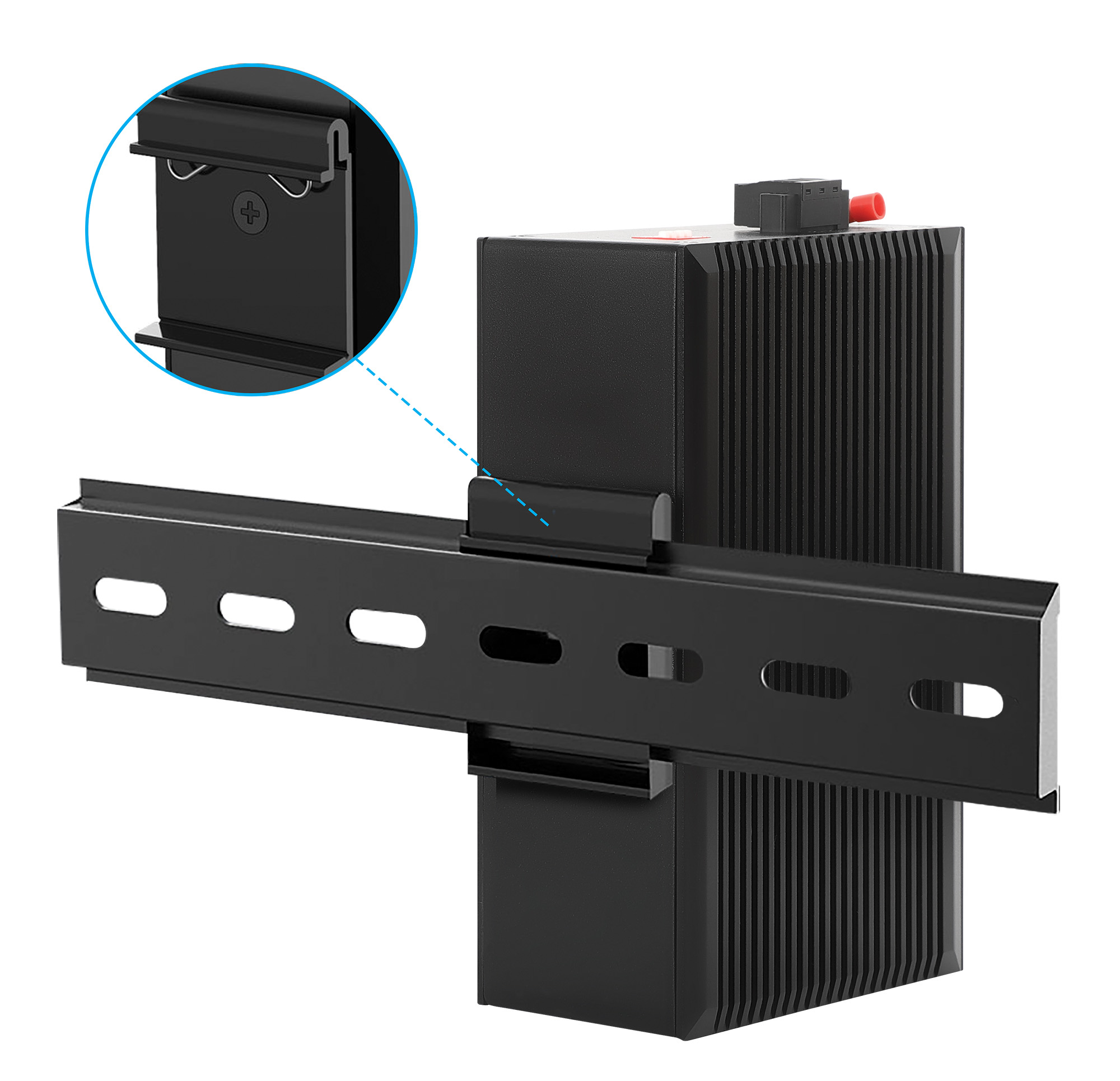

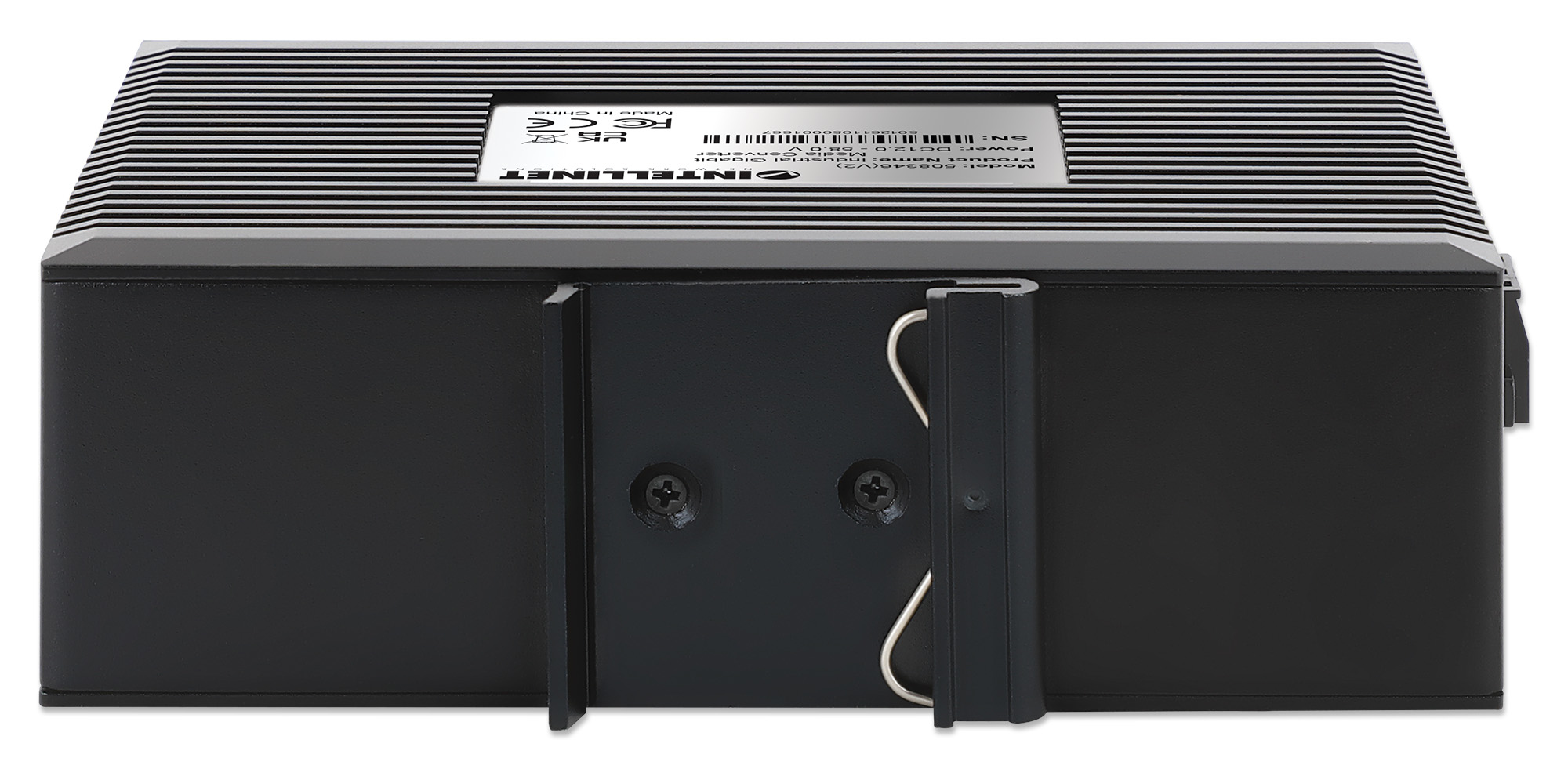

| DIN rail mounting | Yes |
| Housing material | Metal |
| International Protection (IP) code | IP40 |
| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Terminal block port | Yes |

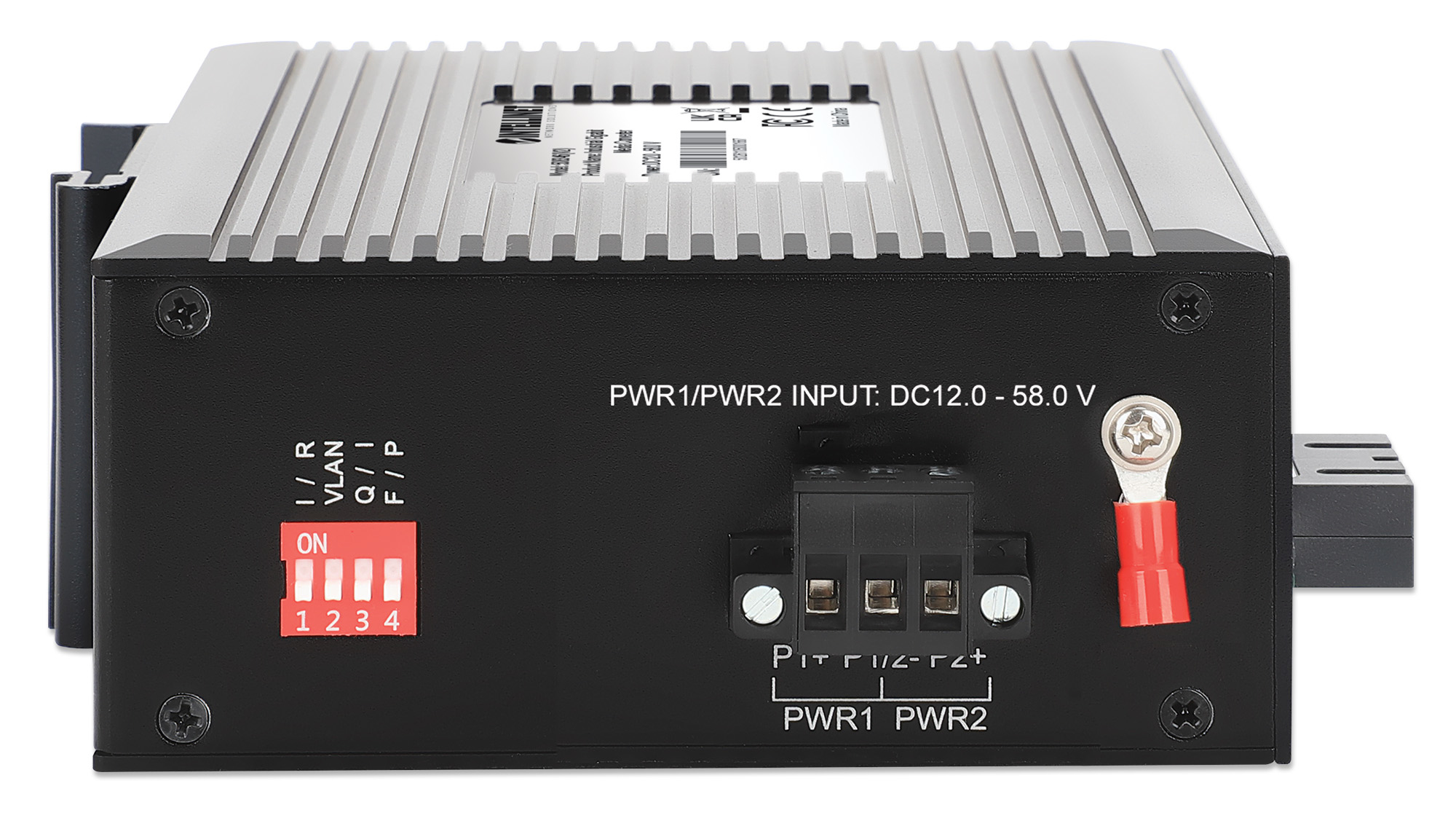

Power
| Specification | Value |
|---|---|
| Output voltage | 12 - 58 V |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 104 mm |
| Depth | 143 mm |
| Height | 48 mm |
| Weight | 600 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 185 mm |
| Package height | 65 mm |
| Package weight | 620 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), UKCA, CE |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 340 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 350 mm |
| Master (outer) case gross weight | 12.7 kg |
| Products per master (outer) case | 20 pc(s) |
Other features
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
