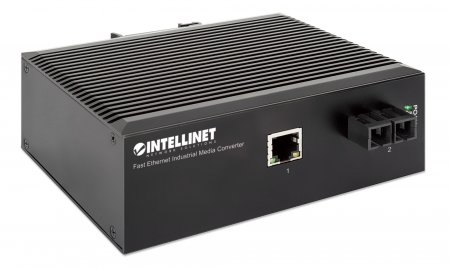

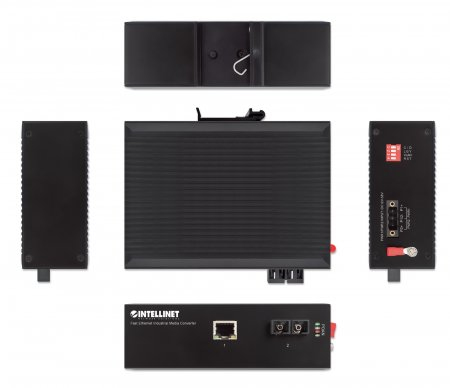

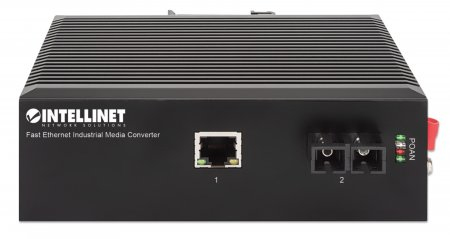

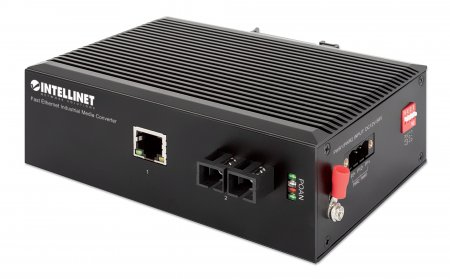

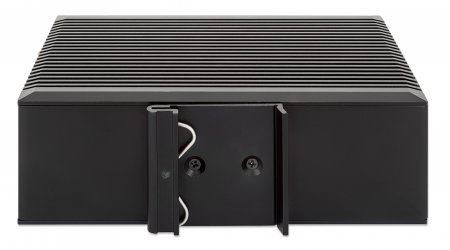

Industrial Fast Ethernet Media Converter, 100Base-TX to 100Base-FX (SC) Single-mode, 20 km, IP40-rated Metal Housing, DIN-rail Mount
Model 508322EAN 766623508322
28 specifications
- Weight600 g
- ColourBlack
- Networking standardsIEEE 802.3, IEEE 802.3u
- Maximum transfer distance20000 m
- InternalNo
- Terminal block portYes
Overview
- Weight
- 600 g
- Colour
- Black
- Networking standards
- IEEE 802.3, IEEE 802.3u
- Maximum transfer distance
- 20000 m
- Internal
- No
- Terminal block port
- Yes
- Brand
- Intellinet
- Category
- Network Media Converter
- Model
- 508322
- Part number
- 508322
- EAN / UPC
- 766623508322
- Also known as
- Intellinet Industrial Fast Ethernet Media Converter, 100Base-TX to 100Base-FX (SC) Single-mode, 20 km, IP40-rated Metal Housing, DIN-rail Mount
Specifications
28 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Jumbo frames support | Yes |
| Cable types supported | Cat5e |
| Supported network protocols | UTP/STP |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 8/125,8.3/125,8.7/125,10/125 µm |
| Tx power (min) | -9 dBmW |
| Tx power (max) | -3 dBmW |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Terminal block port | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 - 58 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 104 mm |
| Depth | 143 mm |
| Height | 48 mm |
| Weight | 600 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
