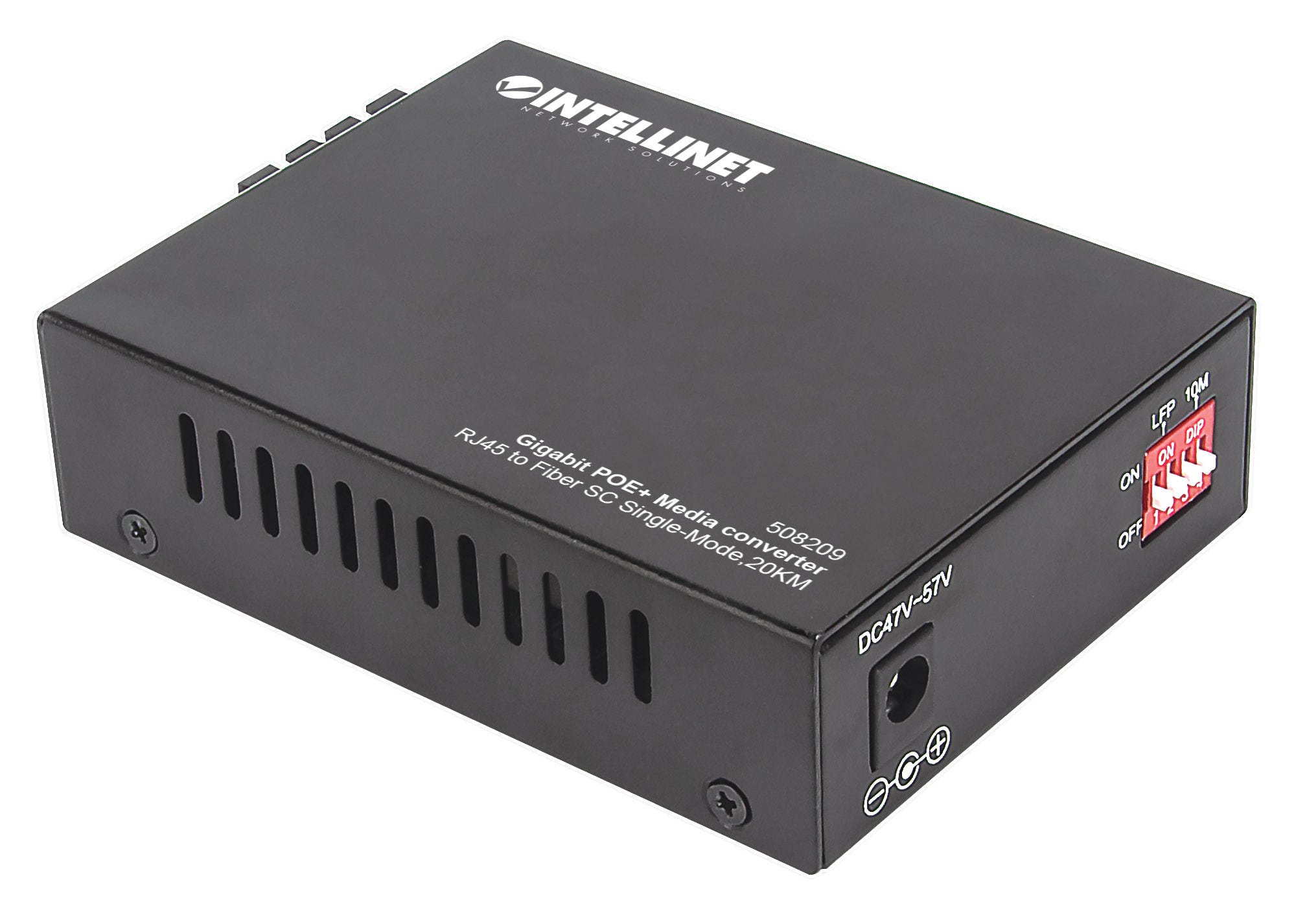

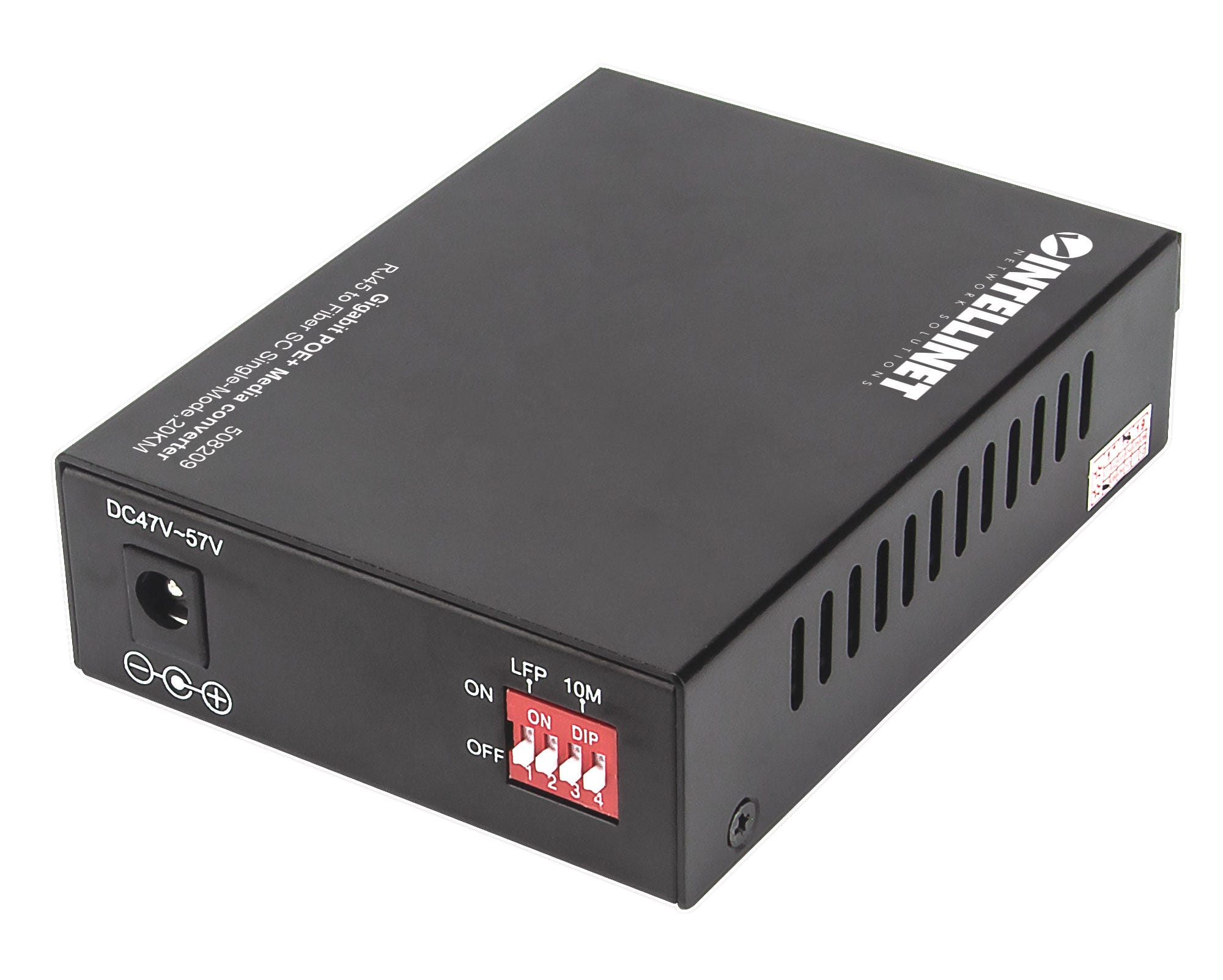

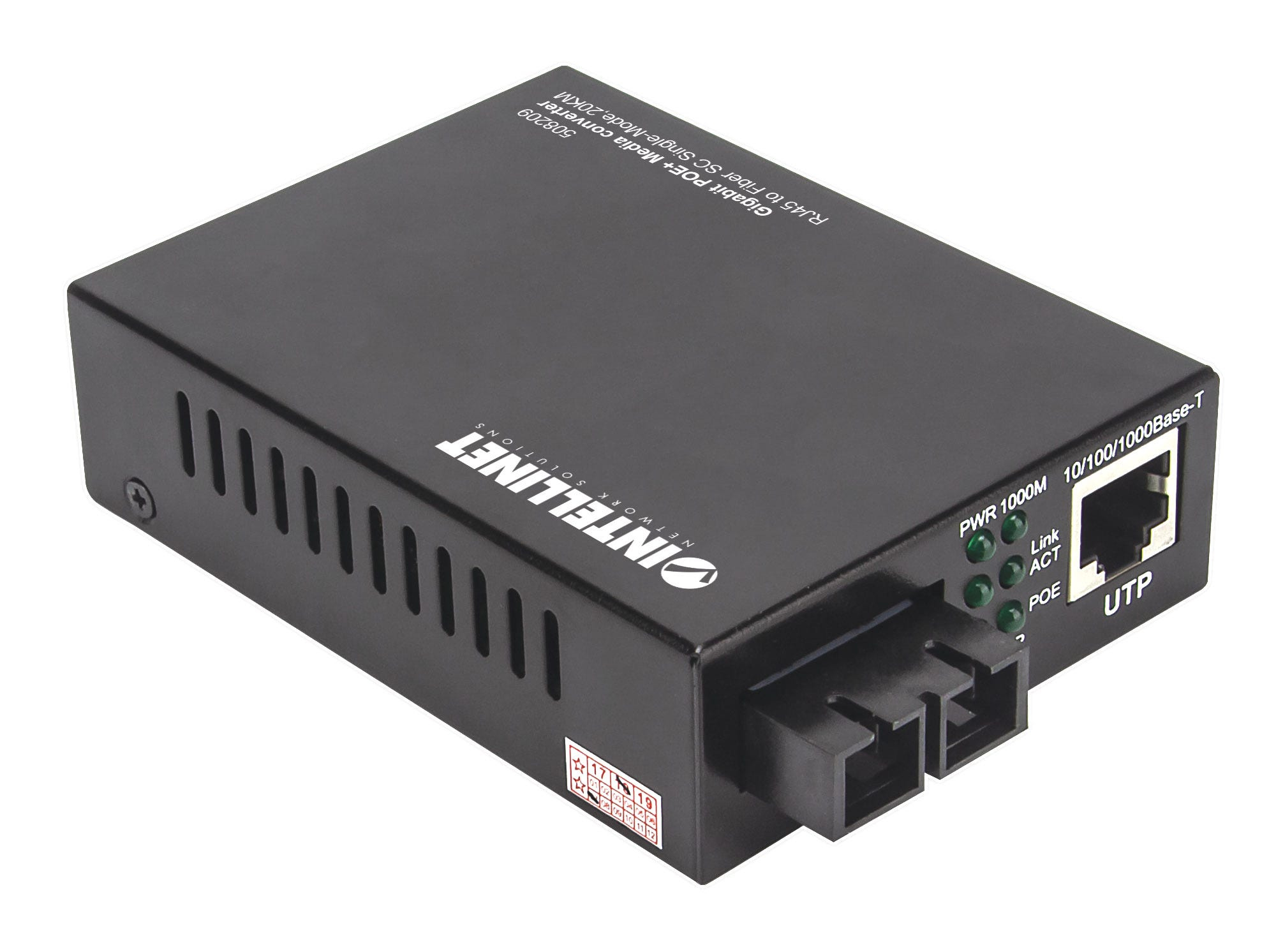

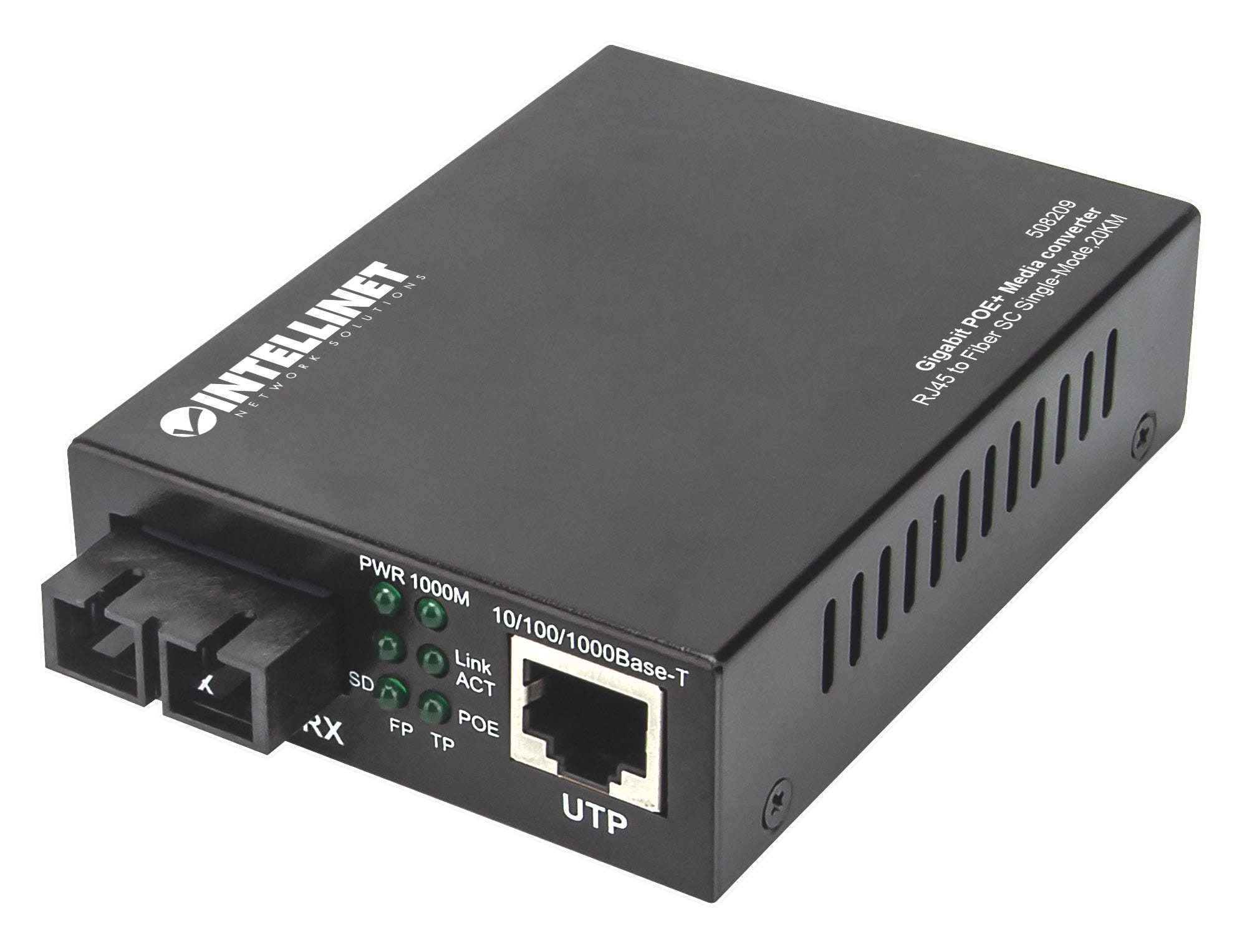

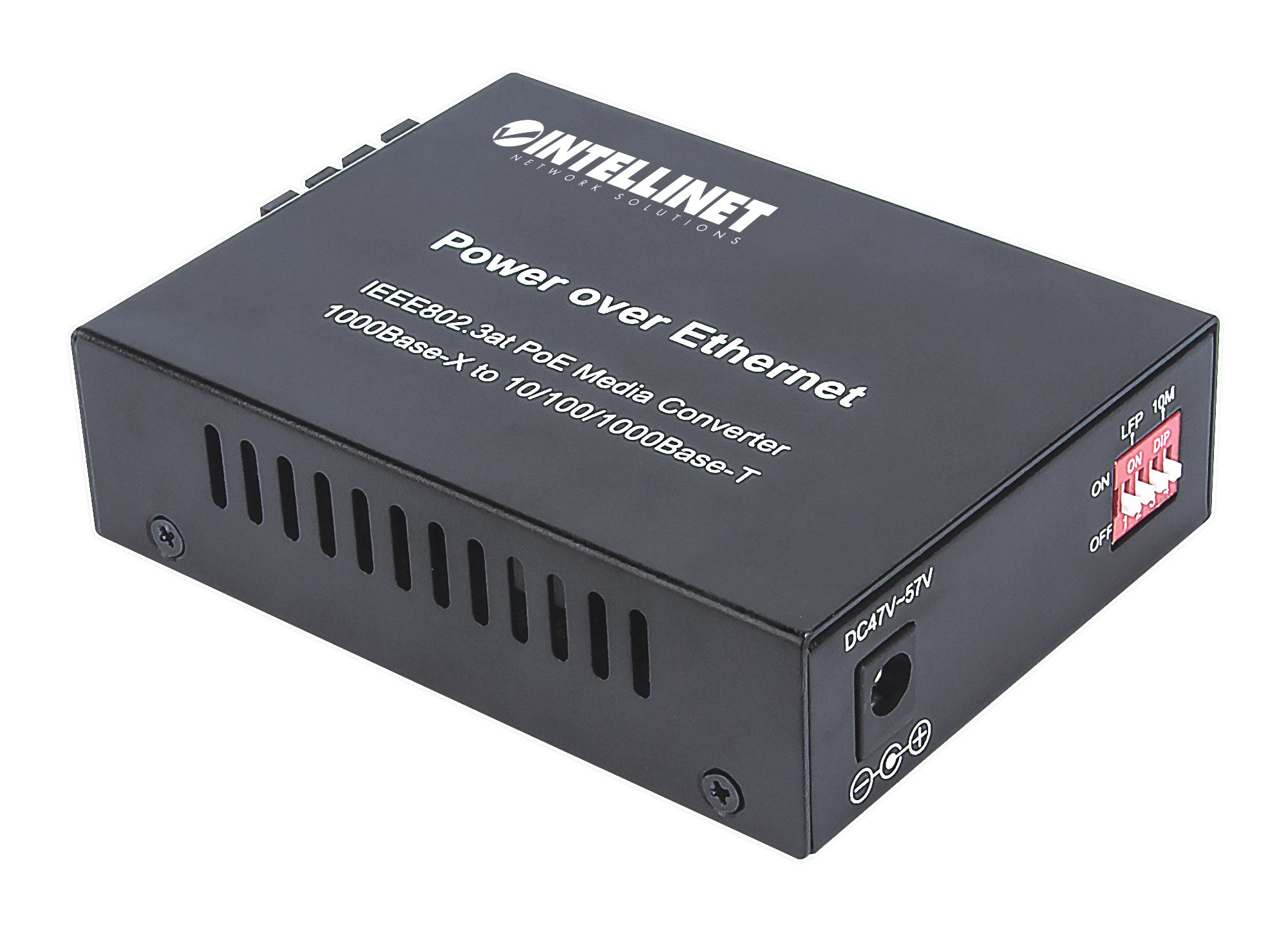

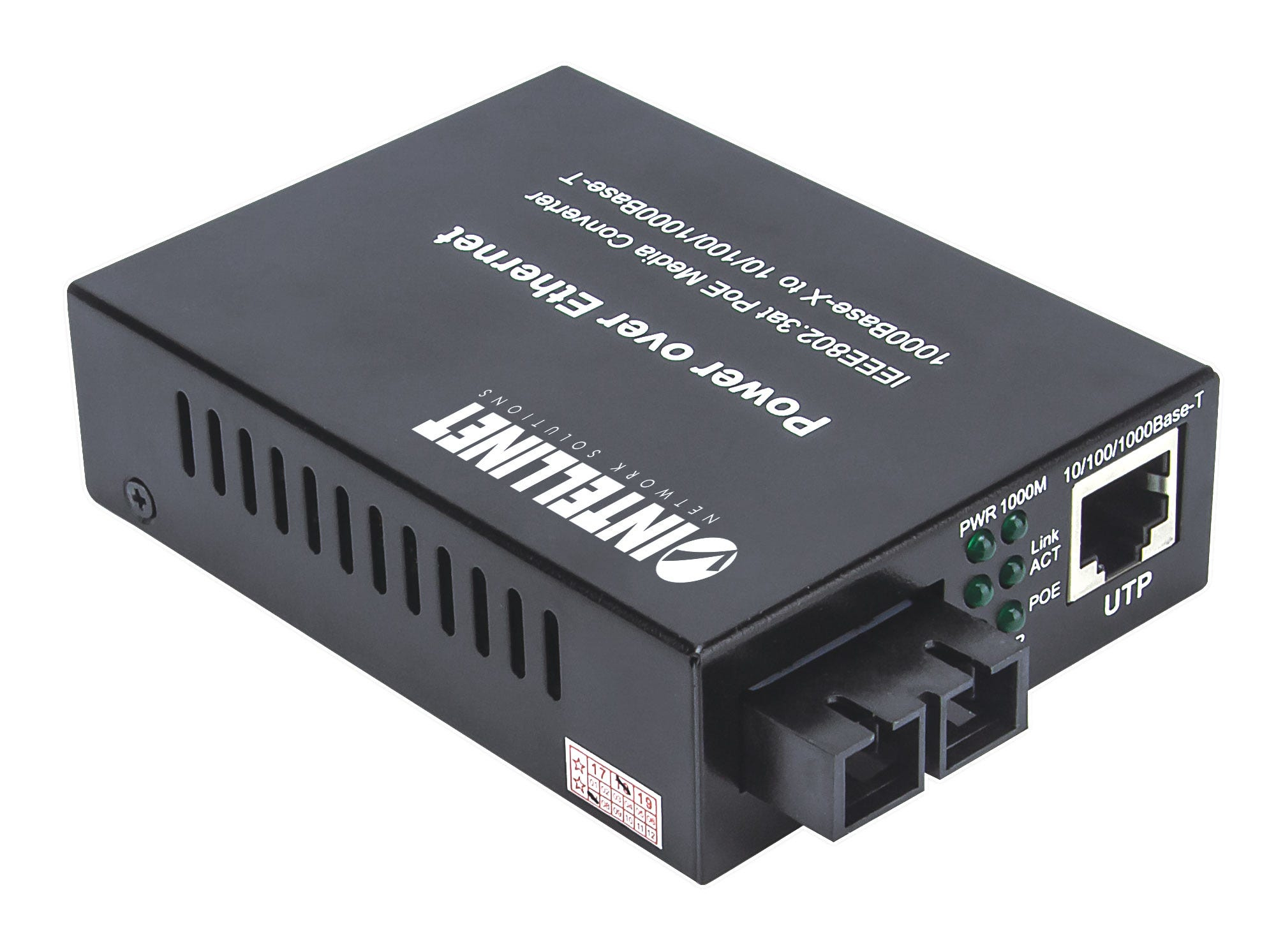

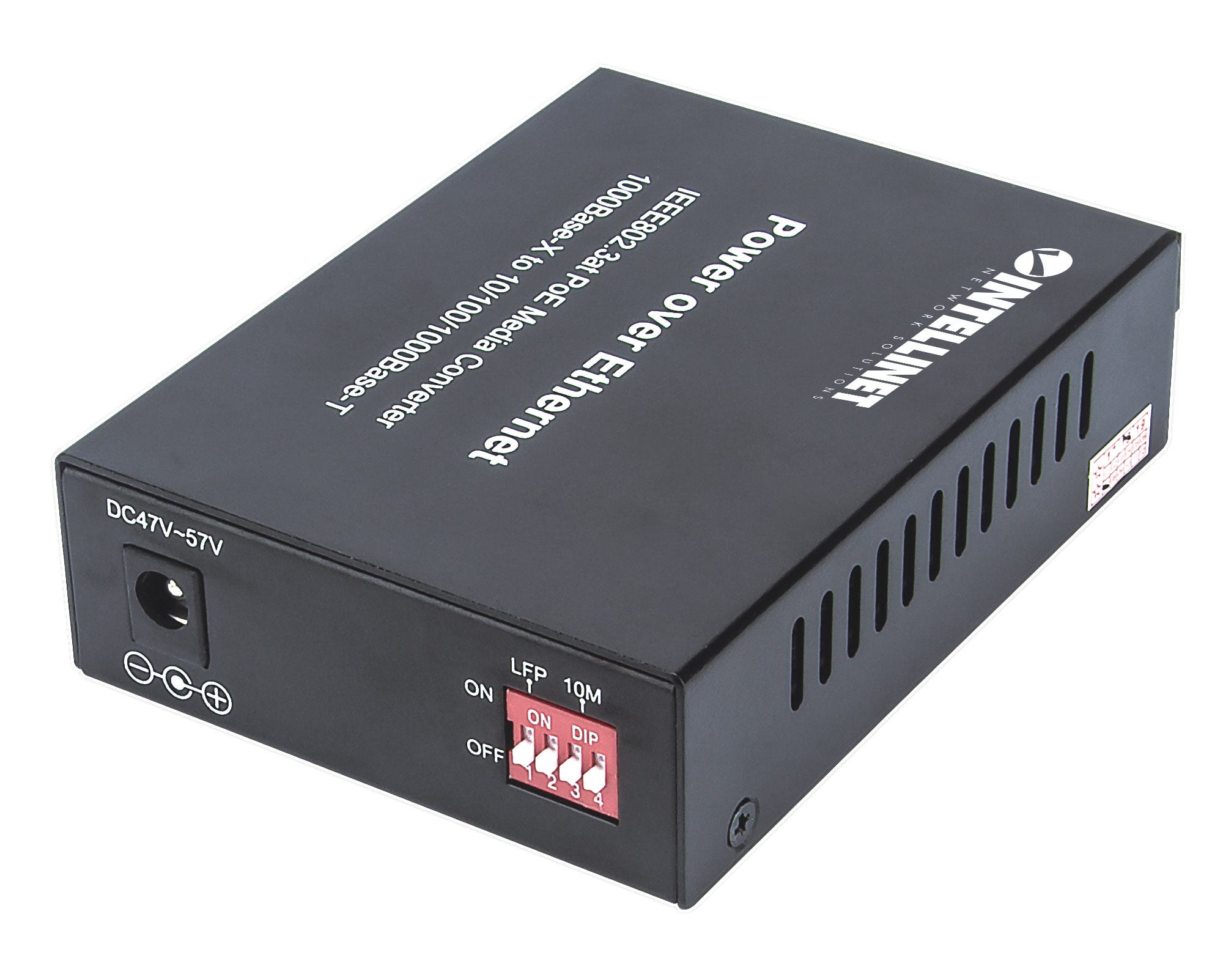

Gigabit PoE+ Media Converter, 1000Base-T RJ45 Port to 1000Base-LX (SC) Single-Mode, 20 km (12.4 mi.), PoE+ Injector
Model 508209EAN 766623508209
36 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight200 g
- ColourBlack
- Maximum transfer distance20000 m
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 200 g
- Colour
- Black
- Maximum transfer distance
- 20000 m
- Internal
- No
- Brand
- Intellinet
- Category
- Network Media Converter
- Model
- 508209
- Part number
- 508209
- EAN / UPC
- 766623508209
- Also known as
- Intellinet Gigabit PoE+ Media Converter, 1000Base-T RJ45 Port to 1000Base-LX (SC) Single-Mode, 20 km (12.4 mi.), PoE+ Injector
Specifications
36 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-LX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 8/125,8.3/125,8.7/125,10/125 µm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Metal |
| International Protection (IP) code | IP30 |

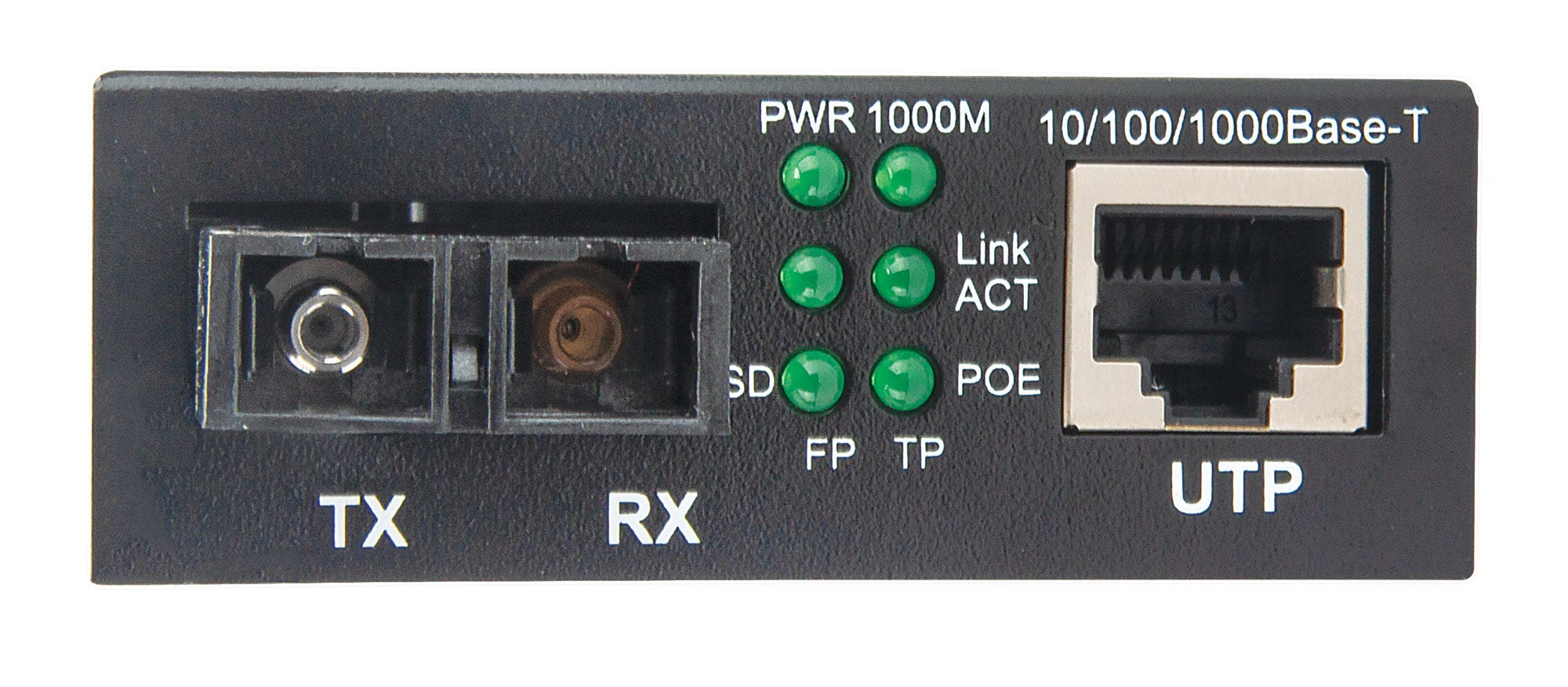

| LED indicators | Activity, Link, PoE, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 56 V |
| Input current | 0.5 A |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 95 mm |
| Height | 25 mm |
| Weight | 200 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC A |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
