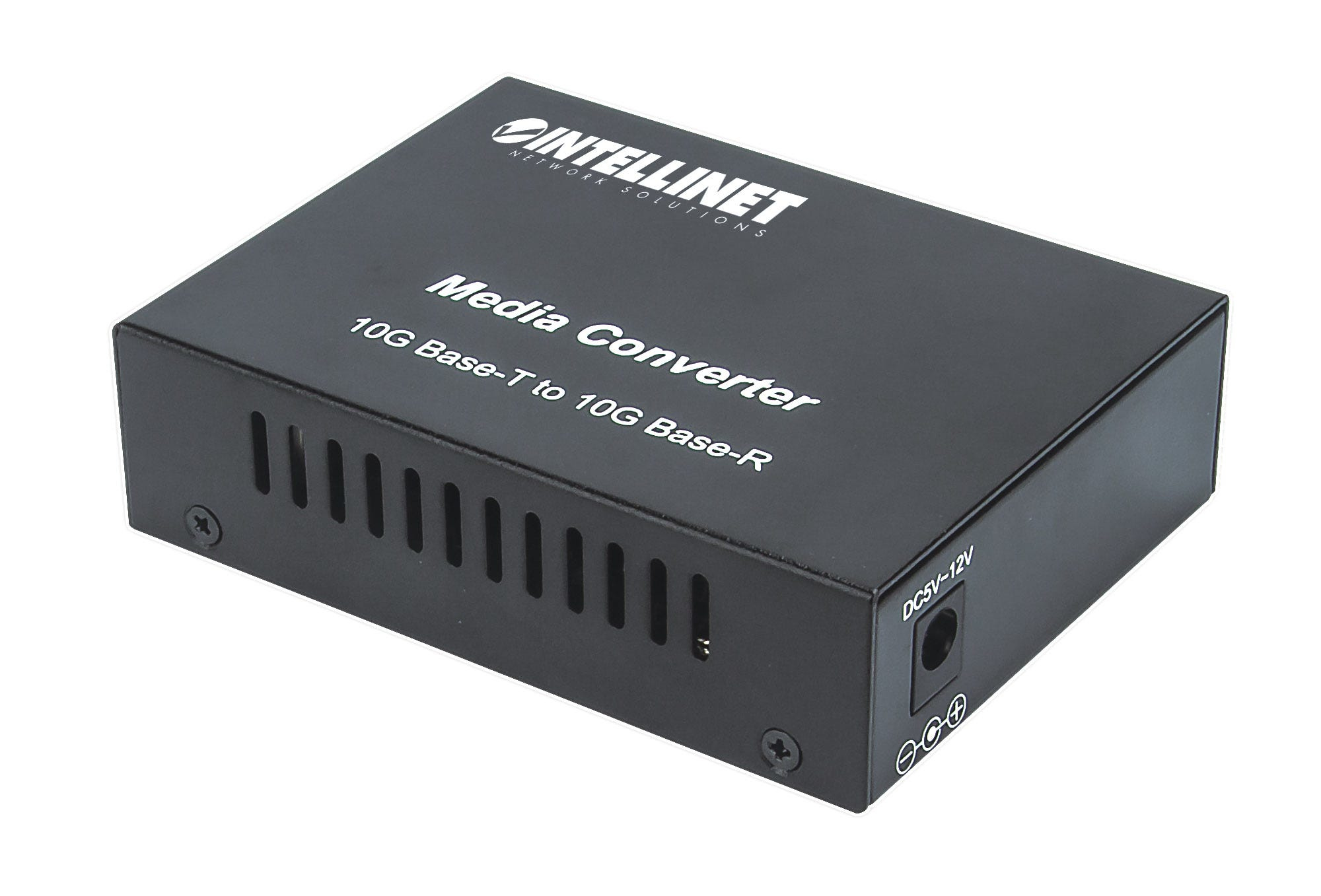

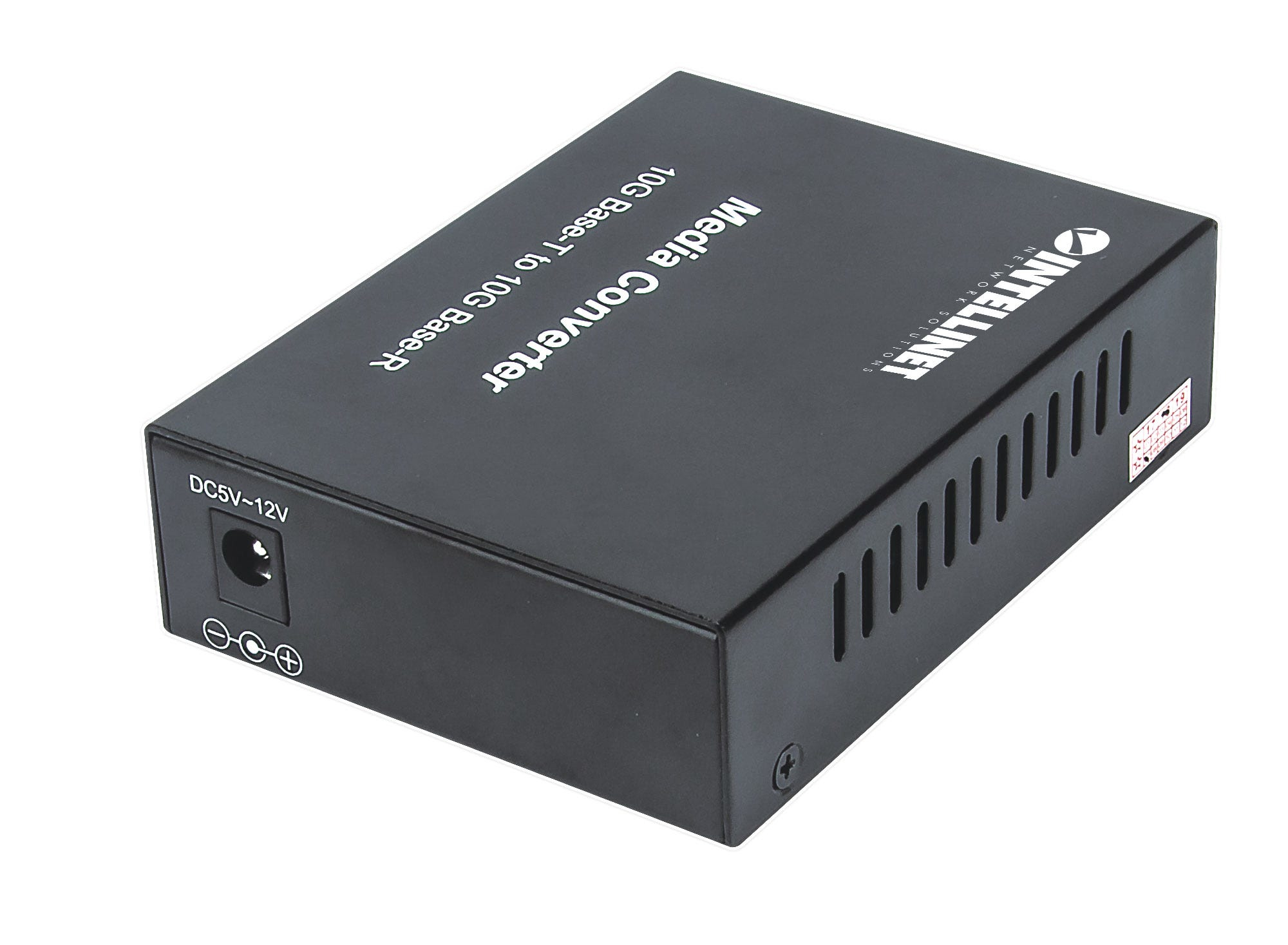

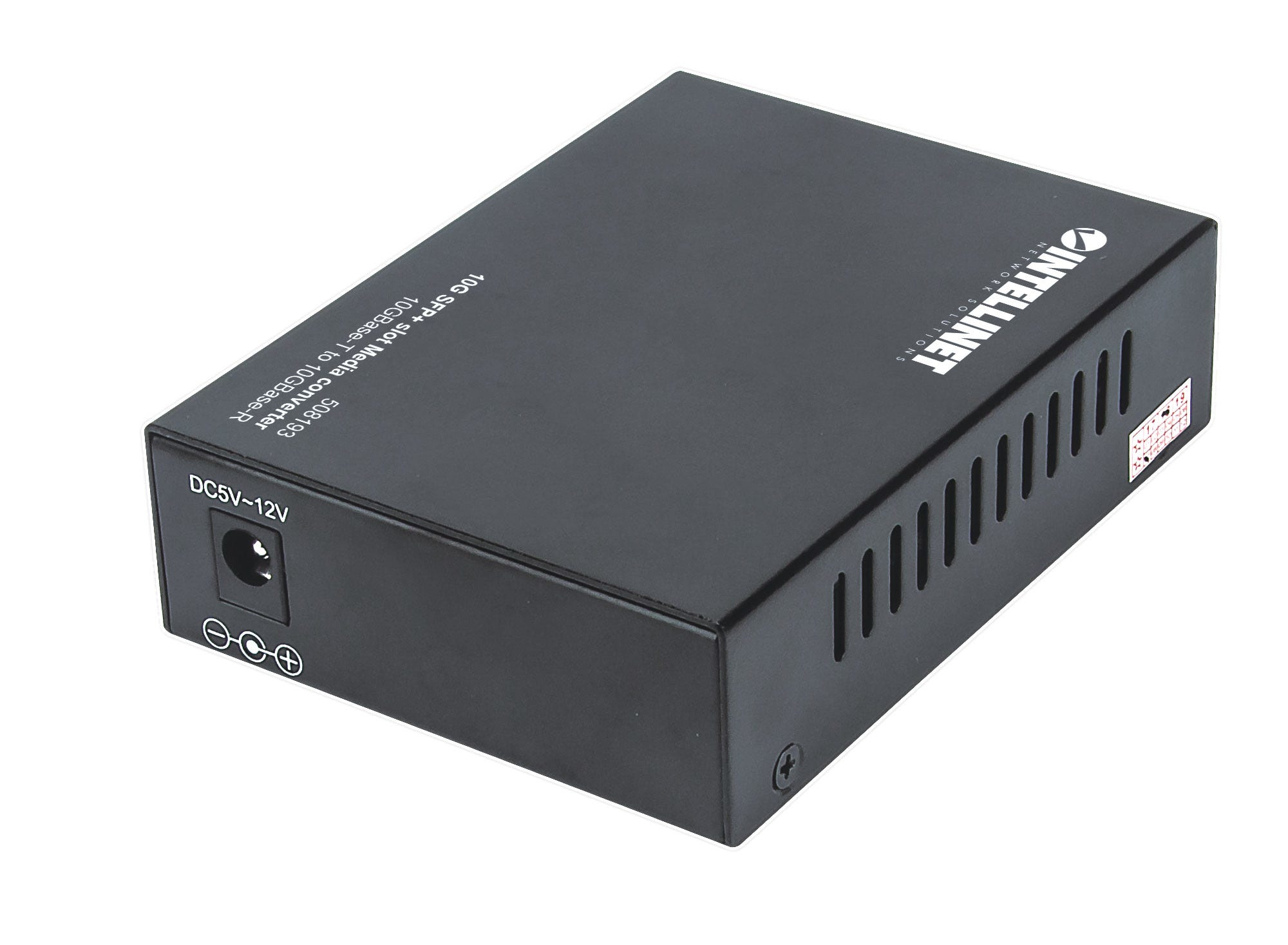

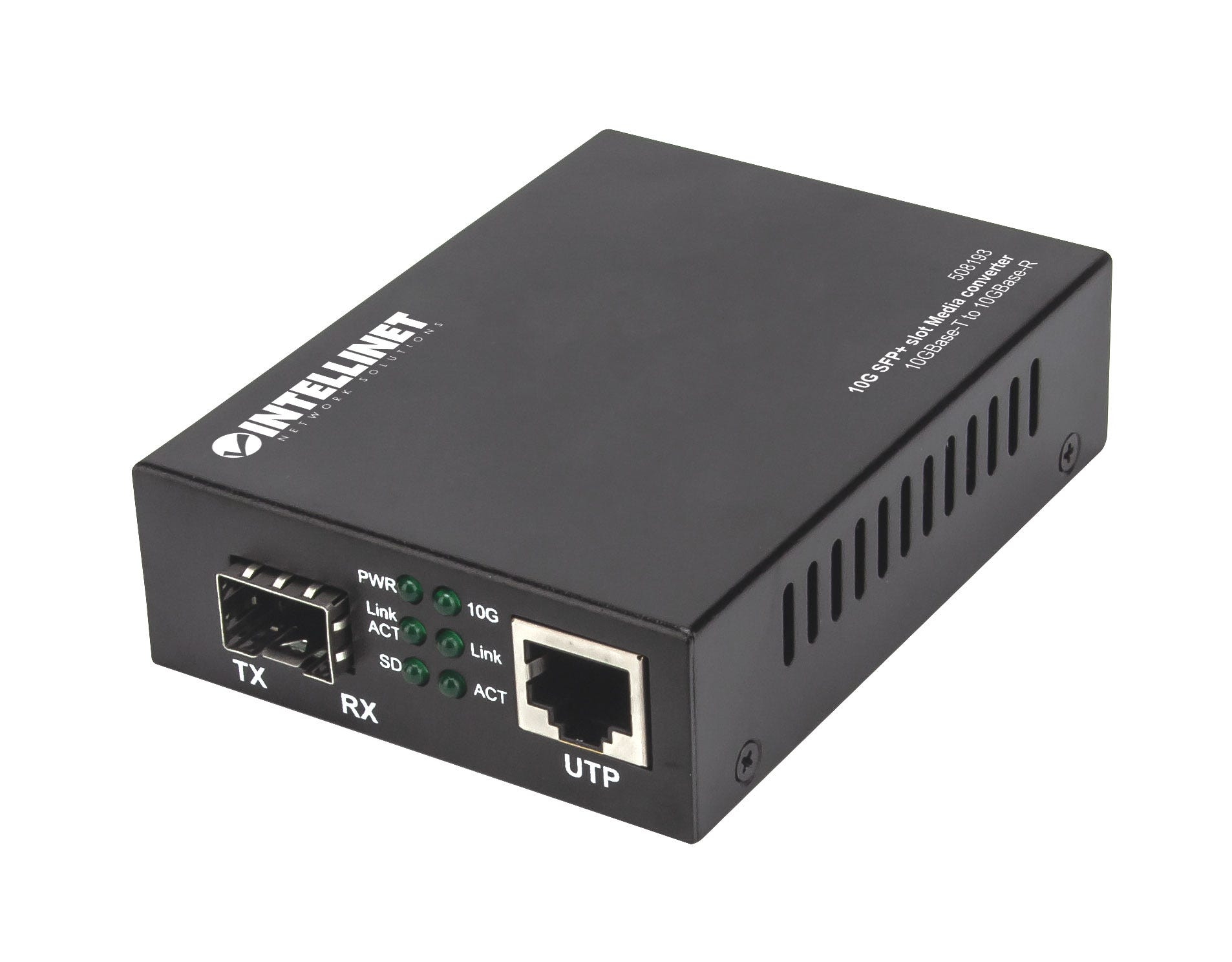

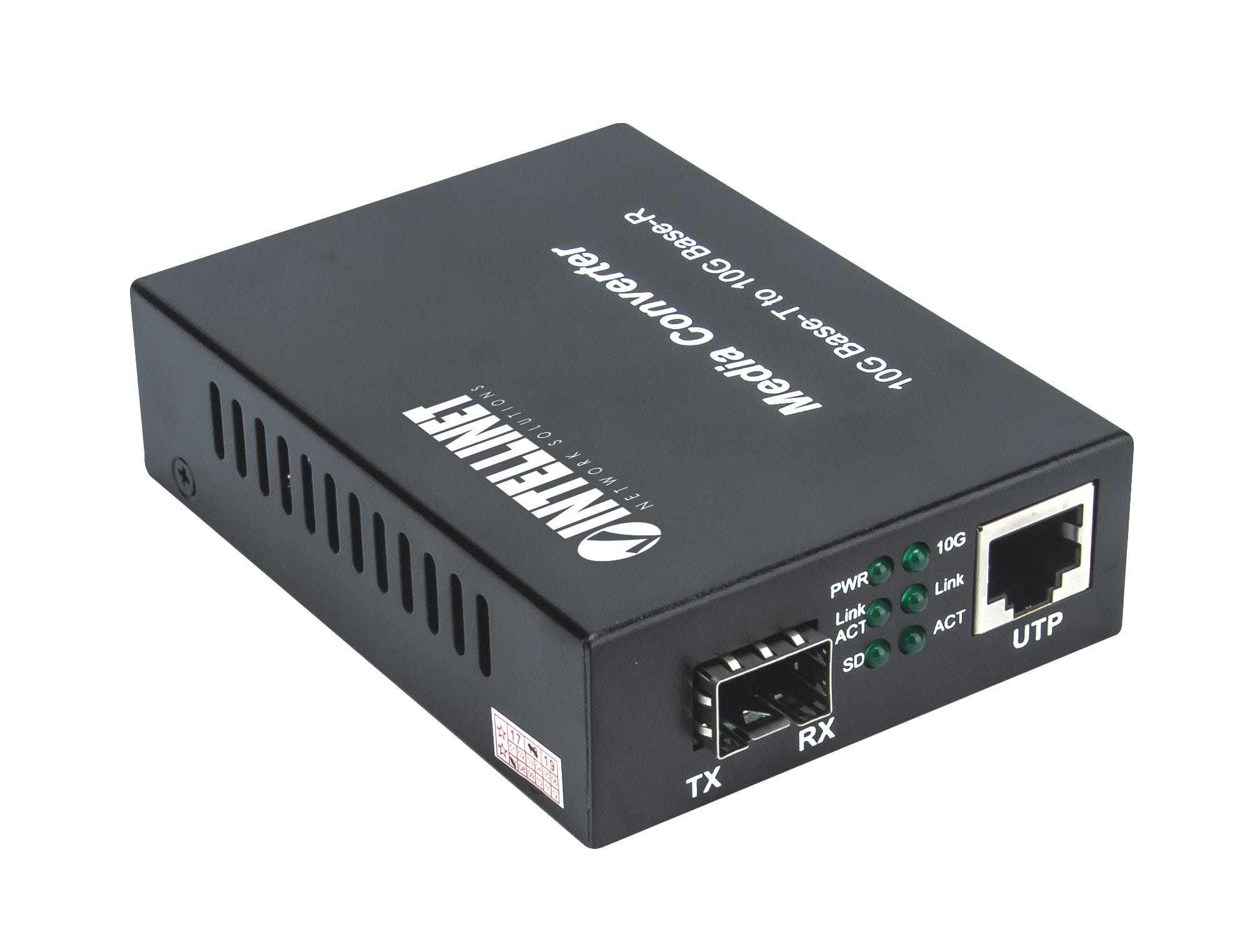

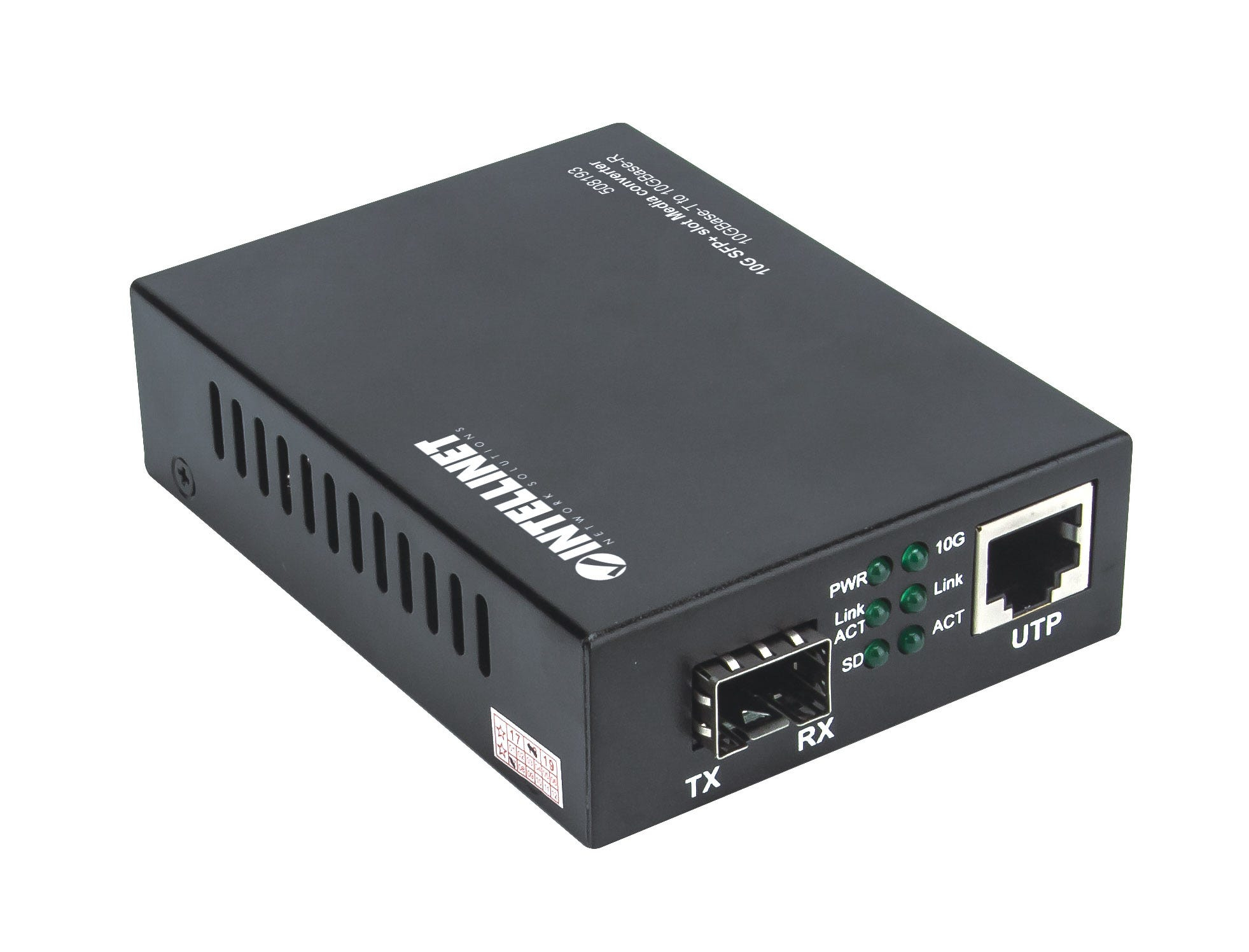

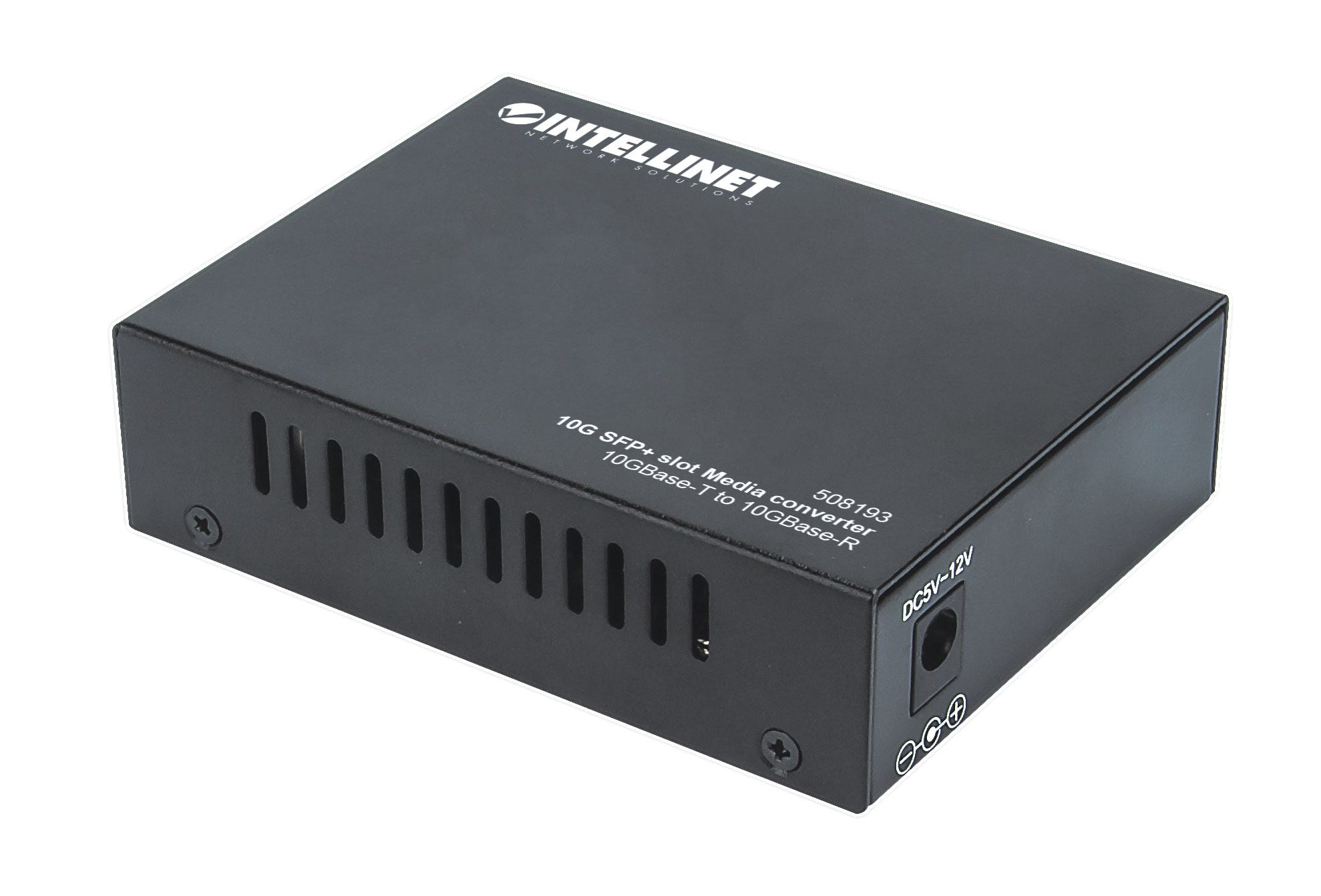

10GBase-T to 10GBase-R Media Converter
1 x 10 GB SFP+ Slot, 1 x 10GB RJ45 Port
Model 508193EAN 766623508193
28 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- Weight200 g
- ColourBlack
- Maximum transfer distance100 m
- InternalNo
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Weight
- 200 g
- Colour
- Black
- Maximum transfer distance
- 100 m
- Internal
- No
- Brand
- Intellinet
- Category
- Network Media Converter
- Model
- 508193
- Part number
- 508193
- EAN / UPC
- 766623508193
- Also known as
- Intellinet 10GBase-T to 10GBase-R Media Converter, 1 x 10 GB SFP+ Slot, 1 x 10GB RJ45 Port
Specifications
28 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3u |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,1200,2500,5000,10000 Mbit/s |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 100 m |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Metal |
| LED indicators | Activity, Link |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP+ |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 0.5 A |
| Power consumption (max) | 5 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 95 mm |
| Height | 25 mm |
| Weight | 200 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
