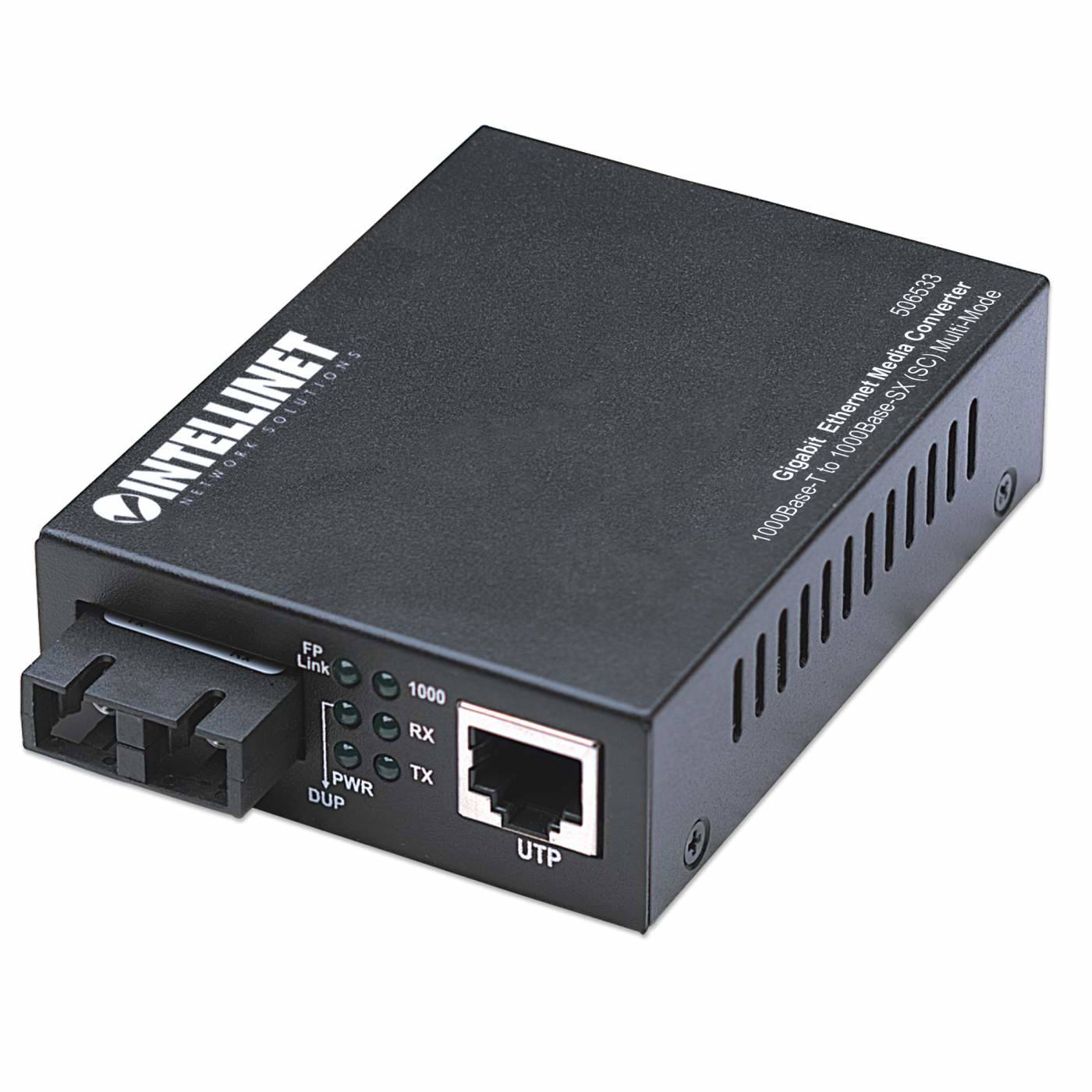

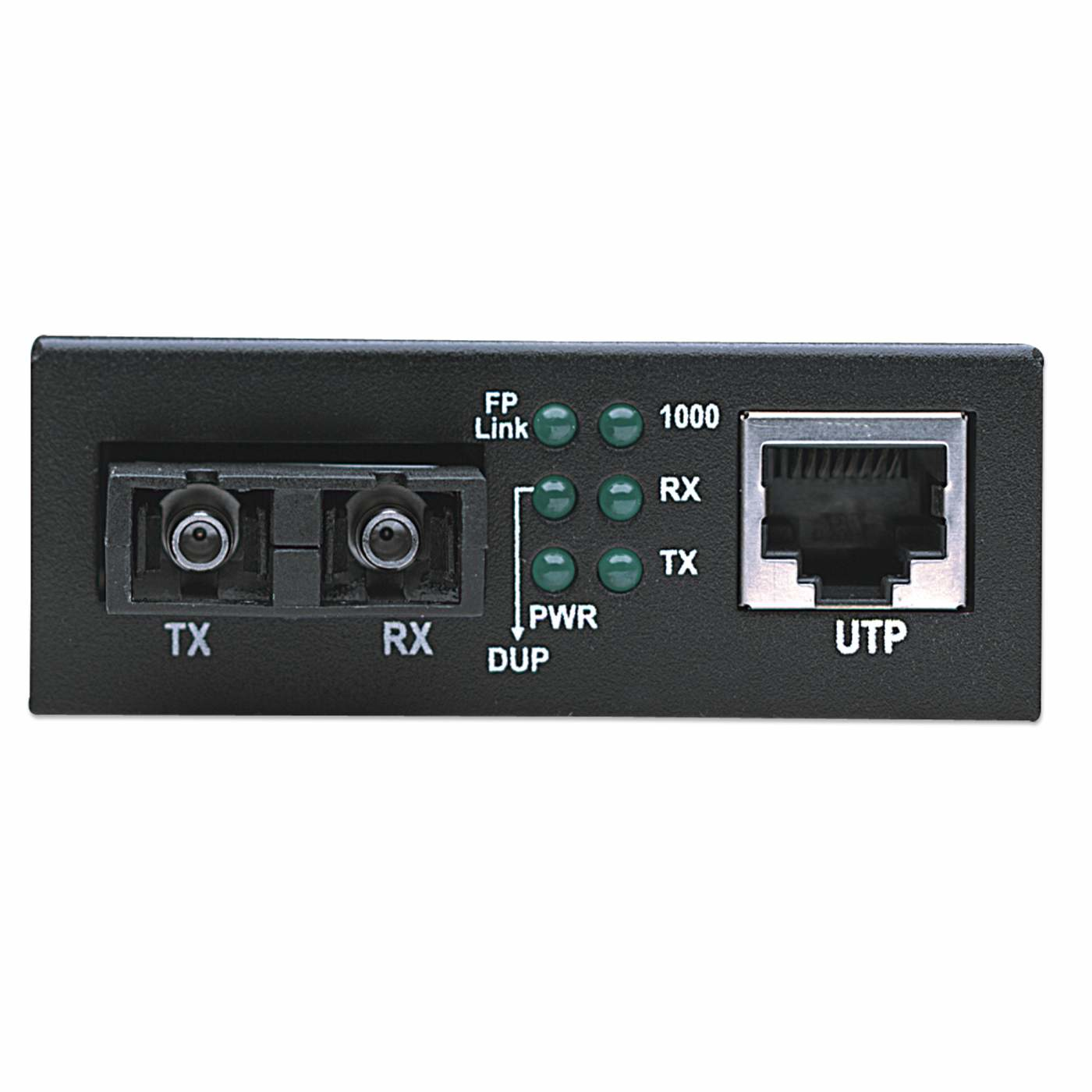

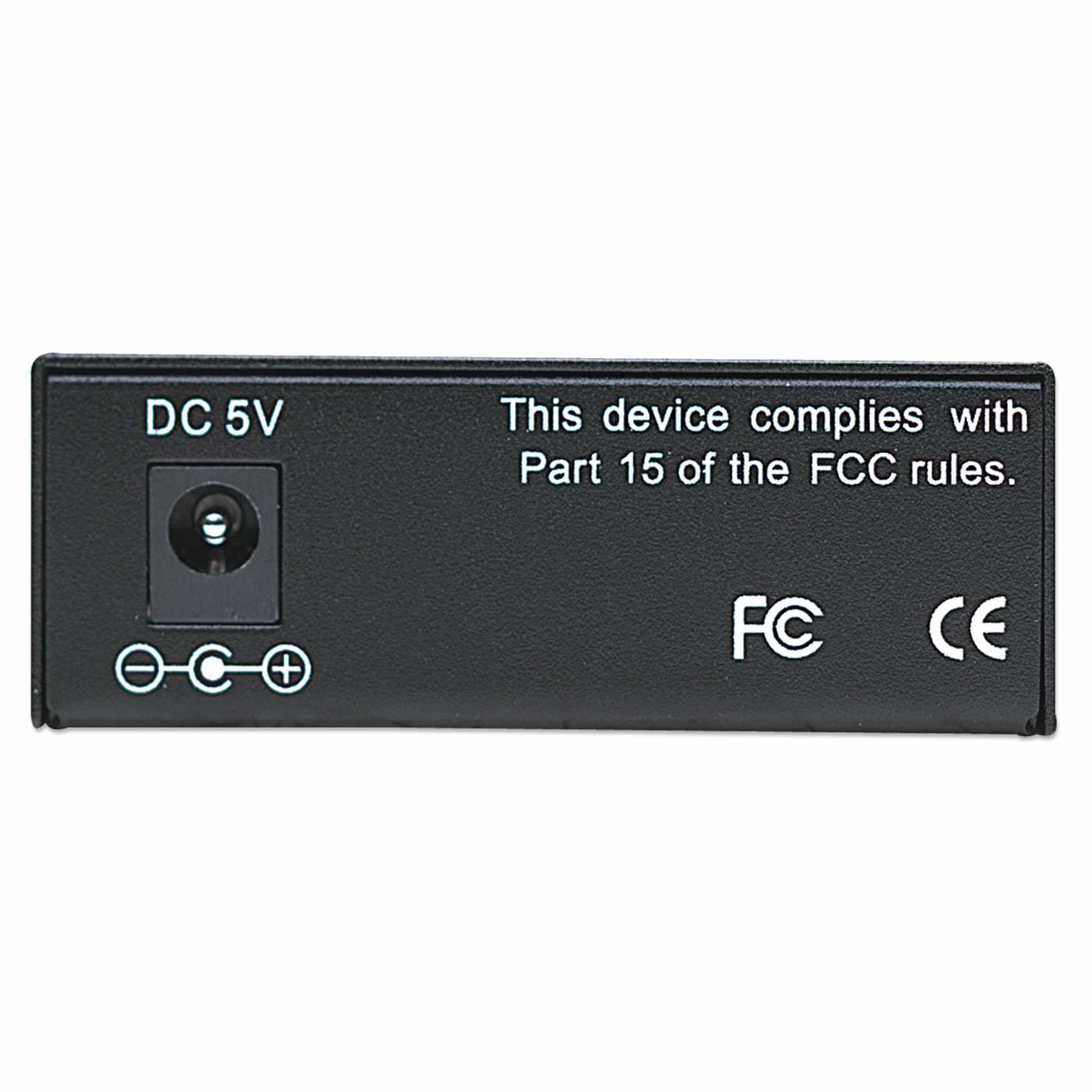

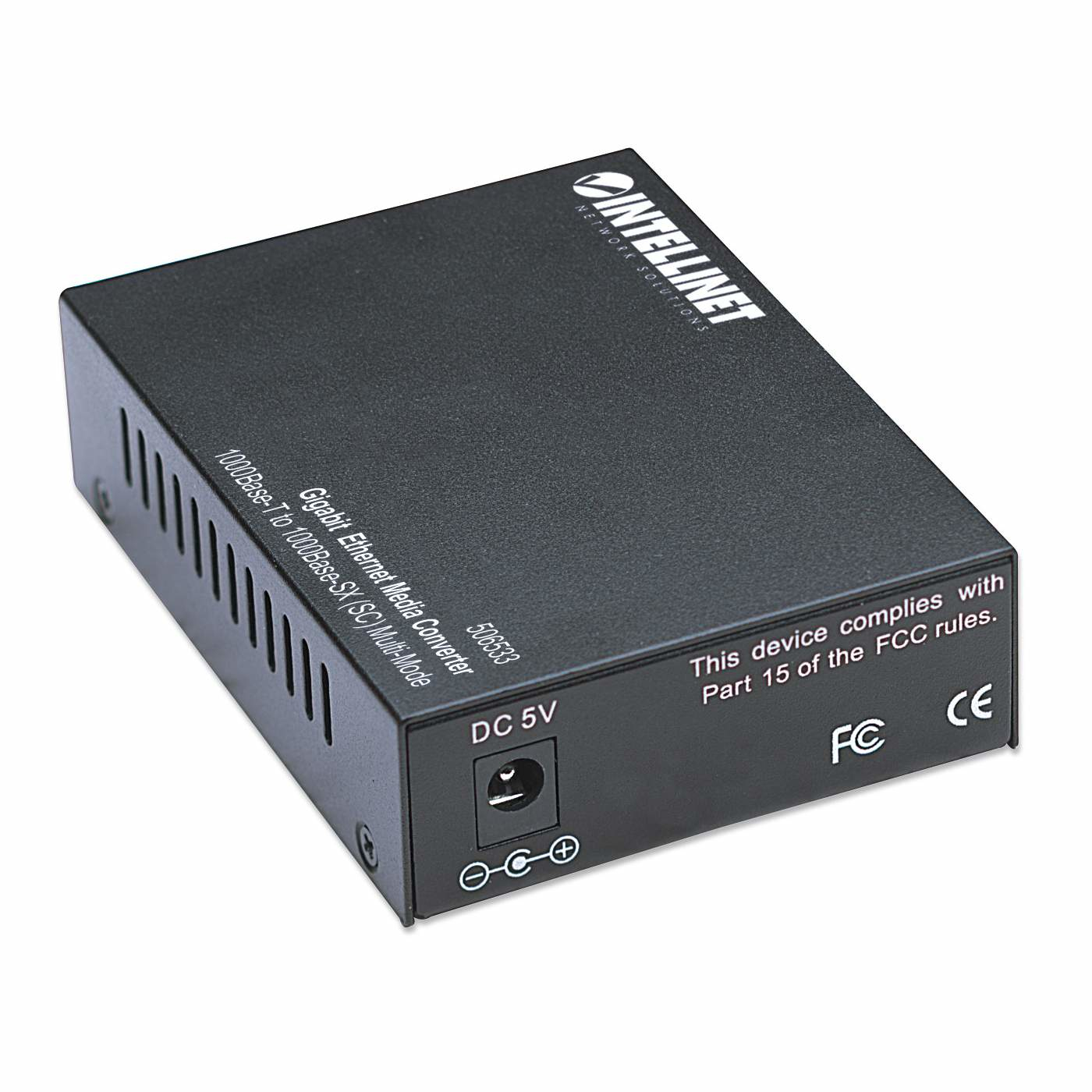

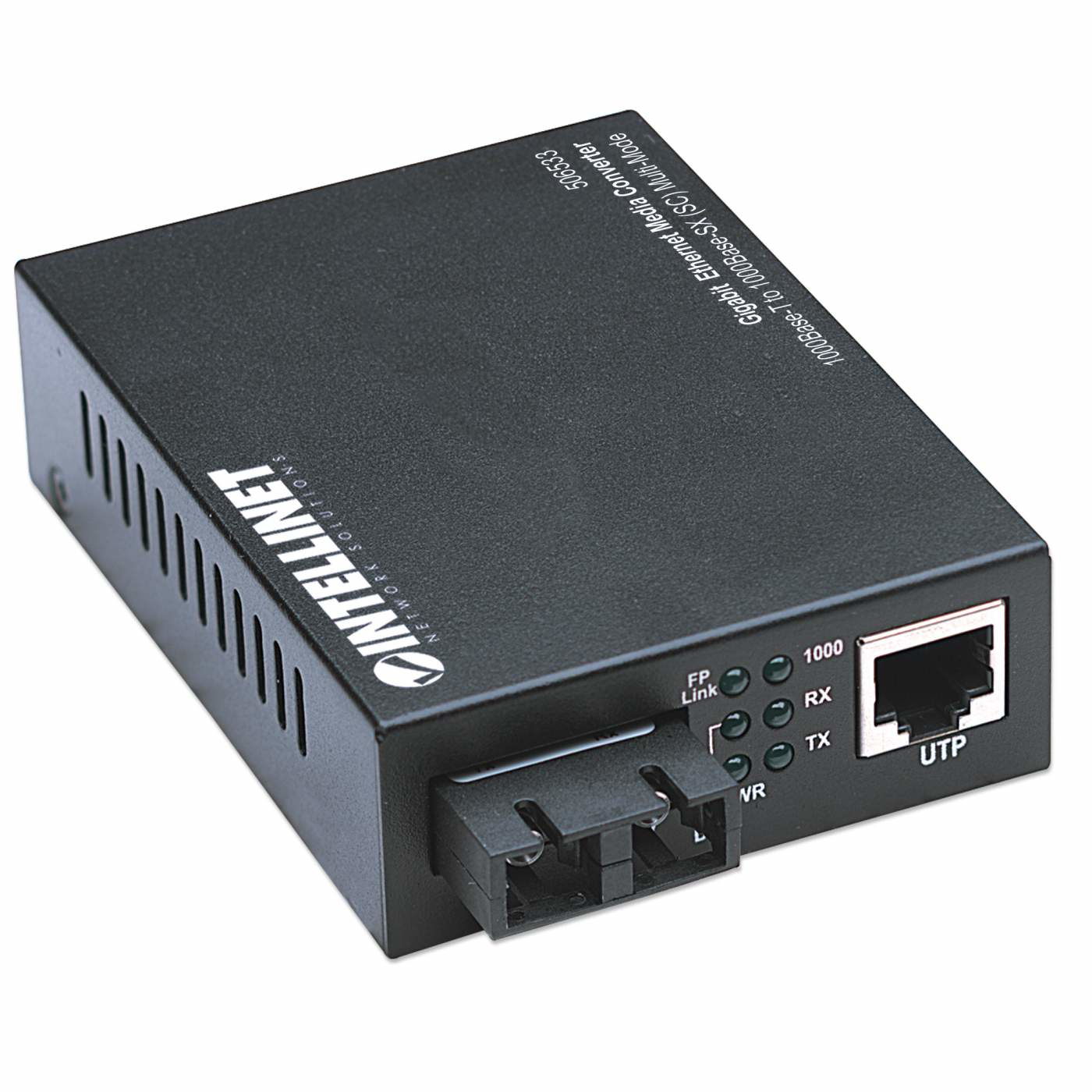

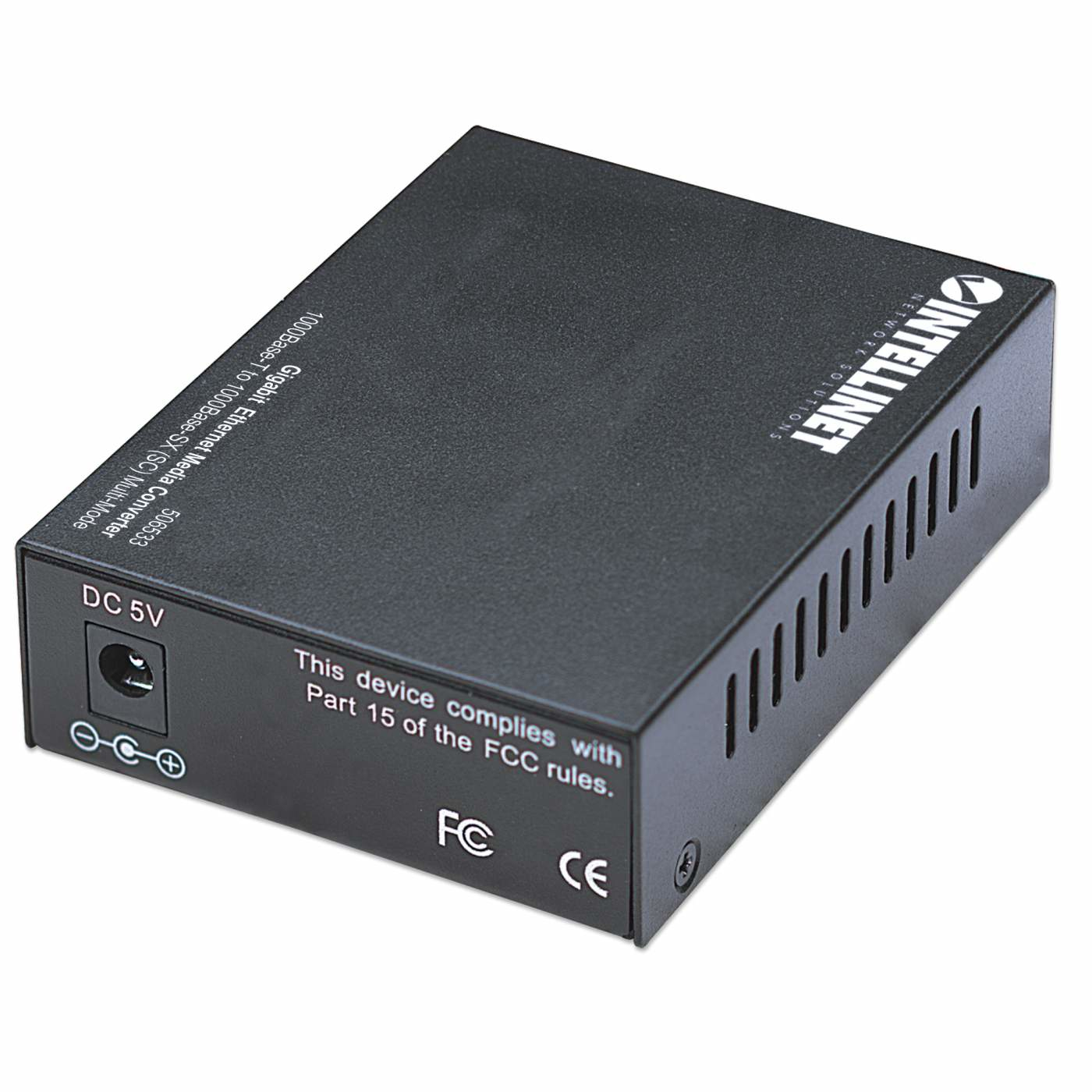

Intellinet Gigabit Ethernet Media Converter, 1000Base-T to 1000Base-Sx (SC) Multi-Mode, 550m (Euro 2-pin plug)
Model 506533EAN 999994727225
36 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight180 g
- ColourBlack
- Maximum transfer distance550 m
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 180 g
- Colour
- Black
- Maximum transfer distance
- 550 m
- Internal
- No
- Brand
- Intellinet
- Category
- Network Media Converter
- Model
- 506533
- Part number
- 506533
- EAN / UPC
- 999994727225, 031112866413, 088022097765, 132018259290 +13 more
- Also known as
- Intellinet Gigabit Ethernet Media Converter, 1000Base-T to 1000Base-Sx (SC) Multi-Mode, 550m (Euro 2-pin plug)
Specifications
36 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-SX, 1000Base-T |
| Networking standards | IEEE 802.3ab, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125,100/140 µm |
| Tx power (min) | -9 dBmW |
| Tx power (max) | -3 dBmW |
| Sensitivity | -20 dBmW |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Metal |
| LED indicators | LAN, Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 2.5 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 107 mm |
| Height | 26 mm |
| Weight | 180 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -45 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, CE, UKCA, NDAA |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
