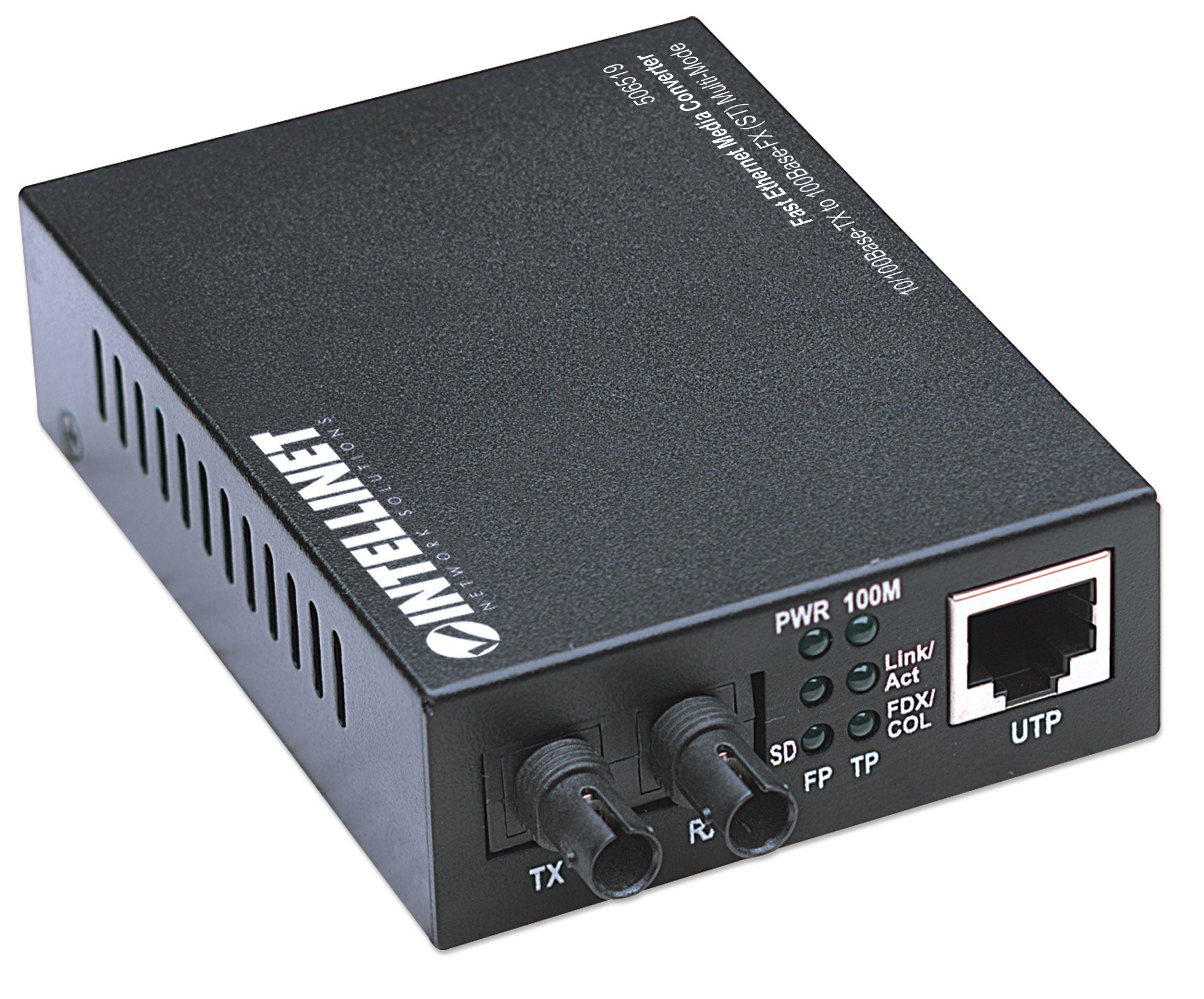

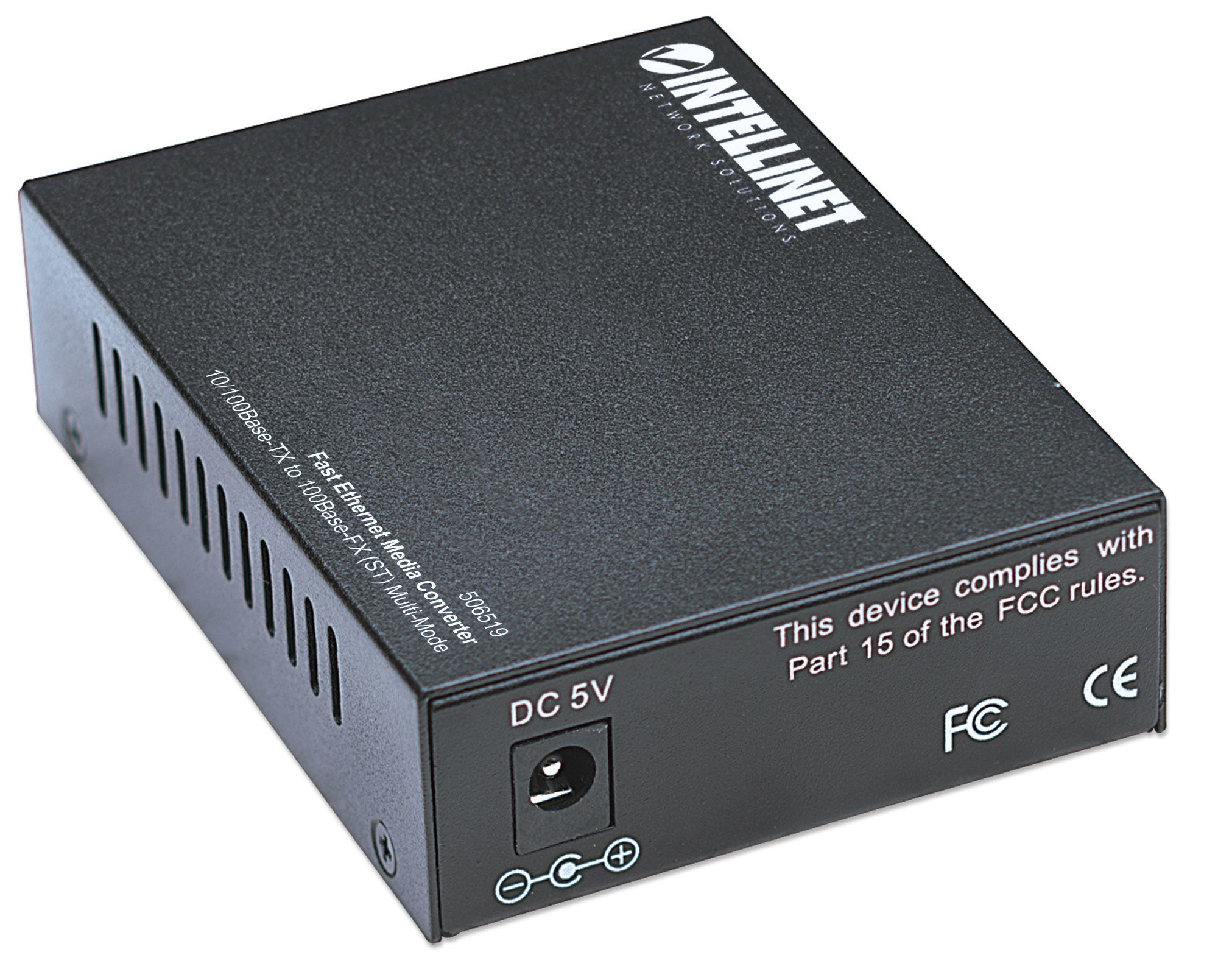

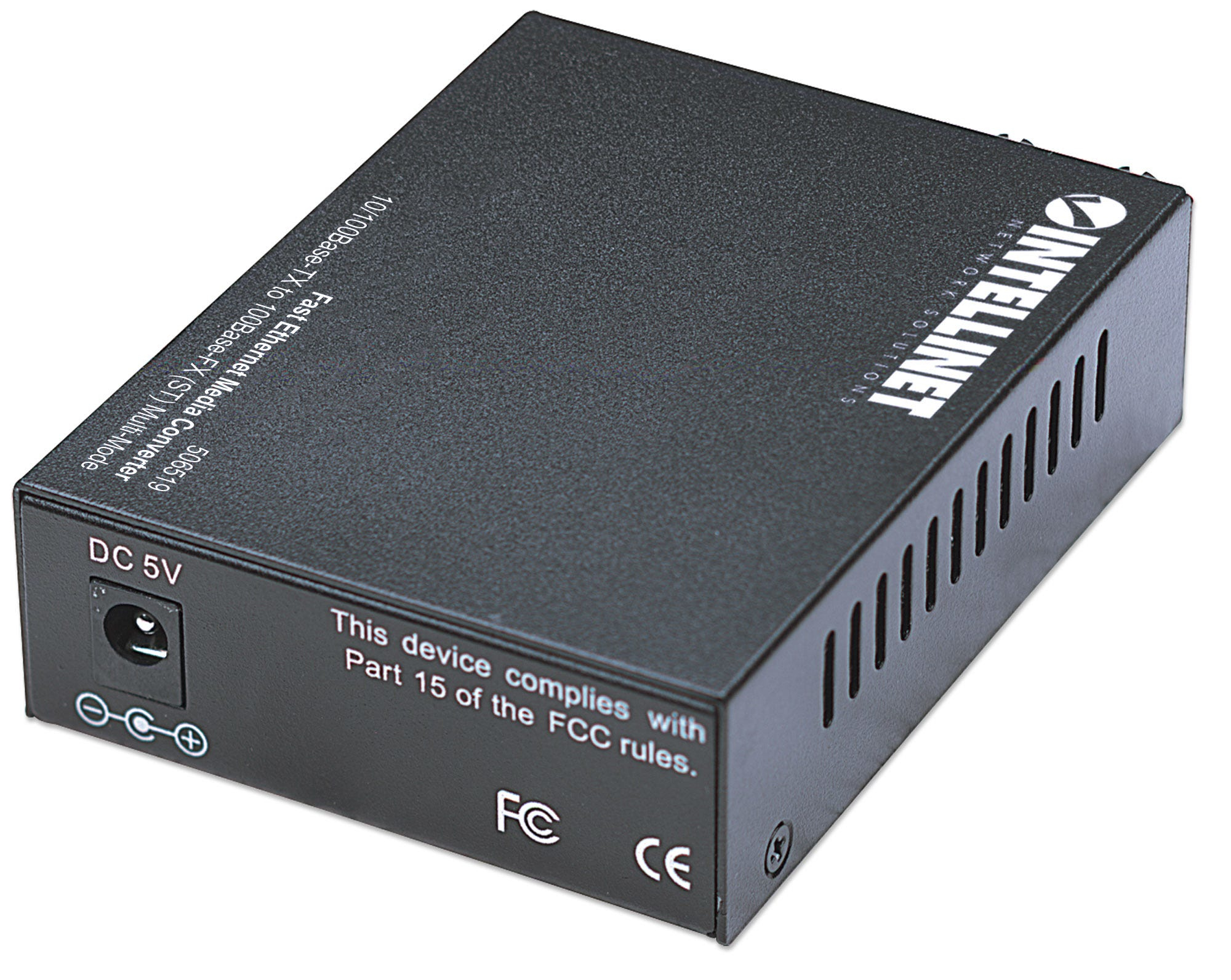

Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi)
Model 506519EAN 7666235065196
36 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight500 g
- ColourBlack
- Maximum transfer distance2000 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 500 g
- Colour
- Black
- Maximum transfer distance
- 2000 m
- Internal
- No
- Brand
- Intellinet
- Category
- Network Media Converter
- Model
- 506519
- Part number
- 506519
- EAN / UPC
- 7666235065196, 102930763748, 115971584791, 132018259283 +8 more
- Also known as
- Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi)
Specifications
36 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Tx power (min) | -22 dBmW |
| Tx power (max) | -12 dBmW |
| Sensitivity | -30 dBmW |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Metal |

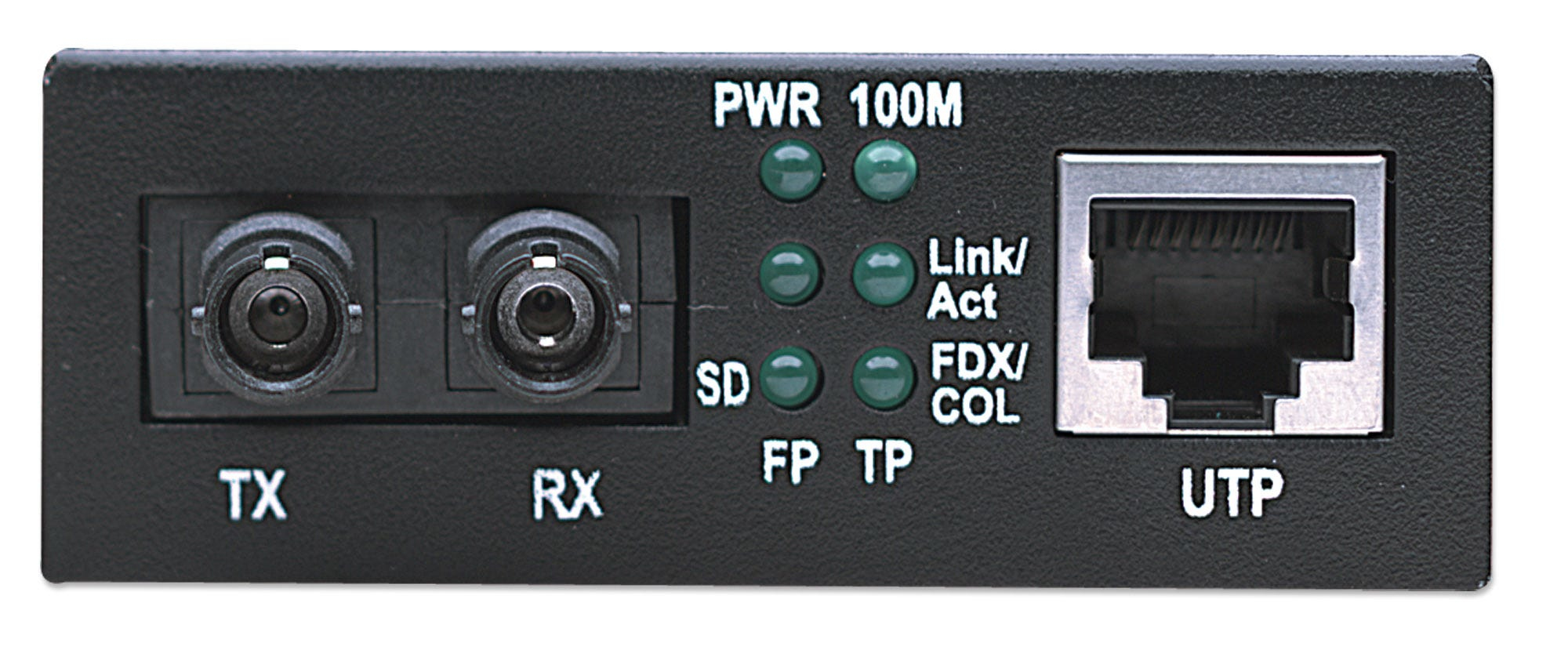

| LED indicators | LAN, Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |

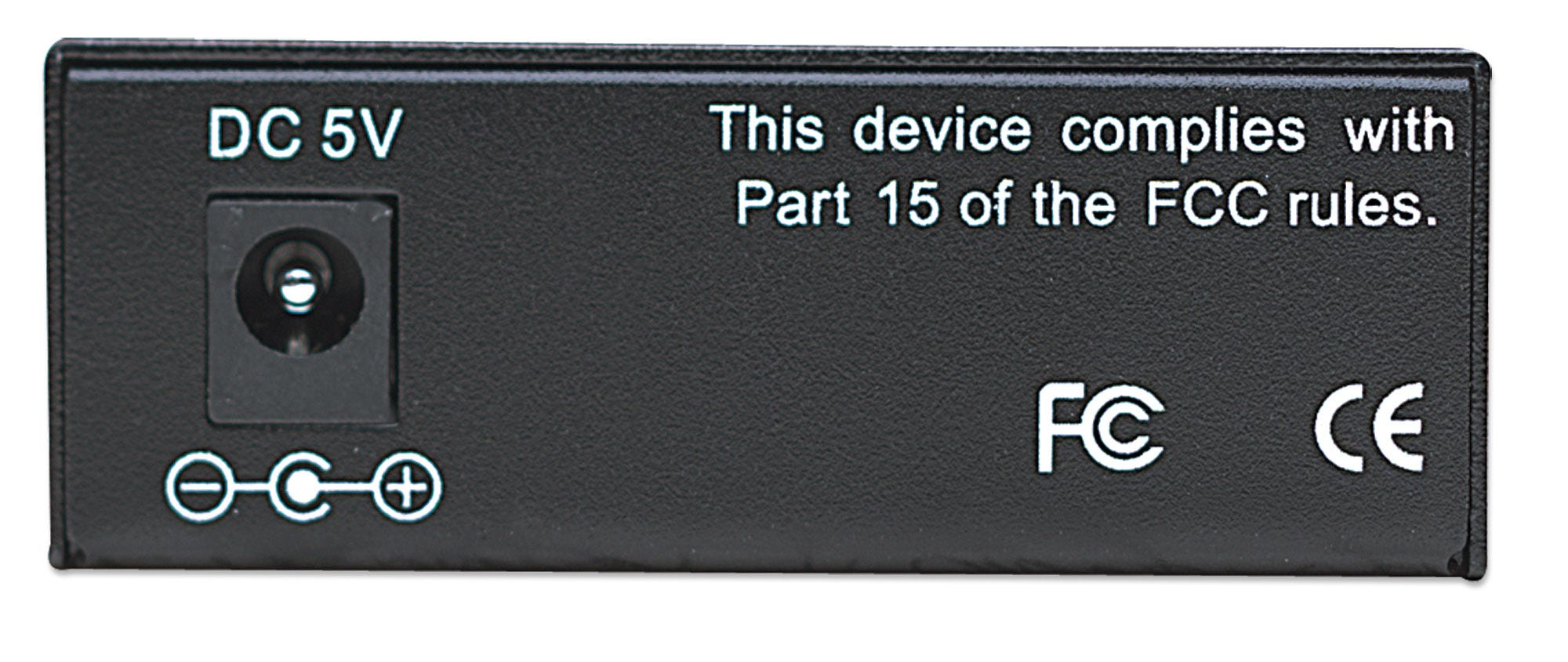

| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input current | 1 A |
| Output voltage | 5 V |
| Power consumption (max) | 2.5 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 107 mm |
| Height | 26 mm |
| Weight | 500 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -45 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Compare Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi)
Compare any products- Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi) vsIntellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Multi-Mode, 2 km (1.24 mi)Compare specs
- Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi) vsIntellinet 515924 network media converter 850 nmCompare specs
- Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi) vsIntellinet Gigabit Ethernet Media Converter, 1000Base-T to 1000Base-Sx (SC) Multi-Mode, 550m (Euro 2-pin plug)Compare specs
- Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi) vsIntellinet 515337 network media converter 100 Mbit/s 1300 nmCompare specs
- Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi) vsD-Link DMC-1910R network media converter 1000 Mbit/s 1310 nm Single-modeCompare specs
- Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi) vsD-Link DMC-1910T network media converter 1000 Mbit/s 1550 nm Single-modeCompare specs

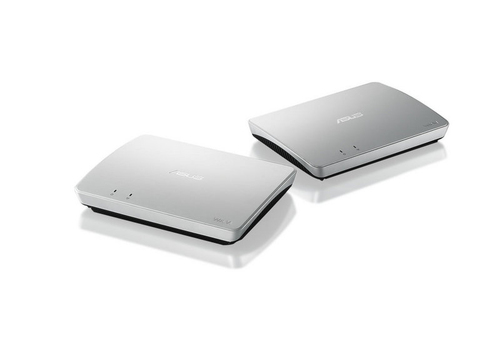

- Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi) vsASUS WAVI network media converterCompare specs

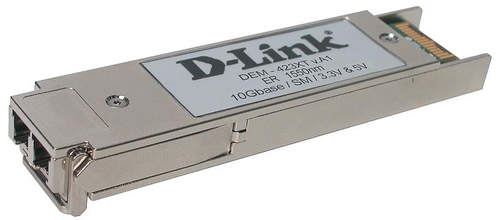

- Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi) vsD-Link DEM-423XT network media converter 10000 Mbit/s 1550 nmCompare specs
